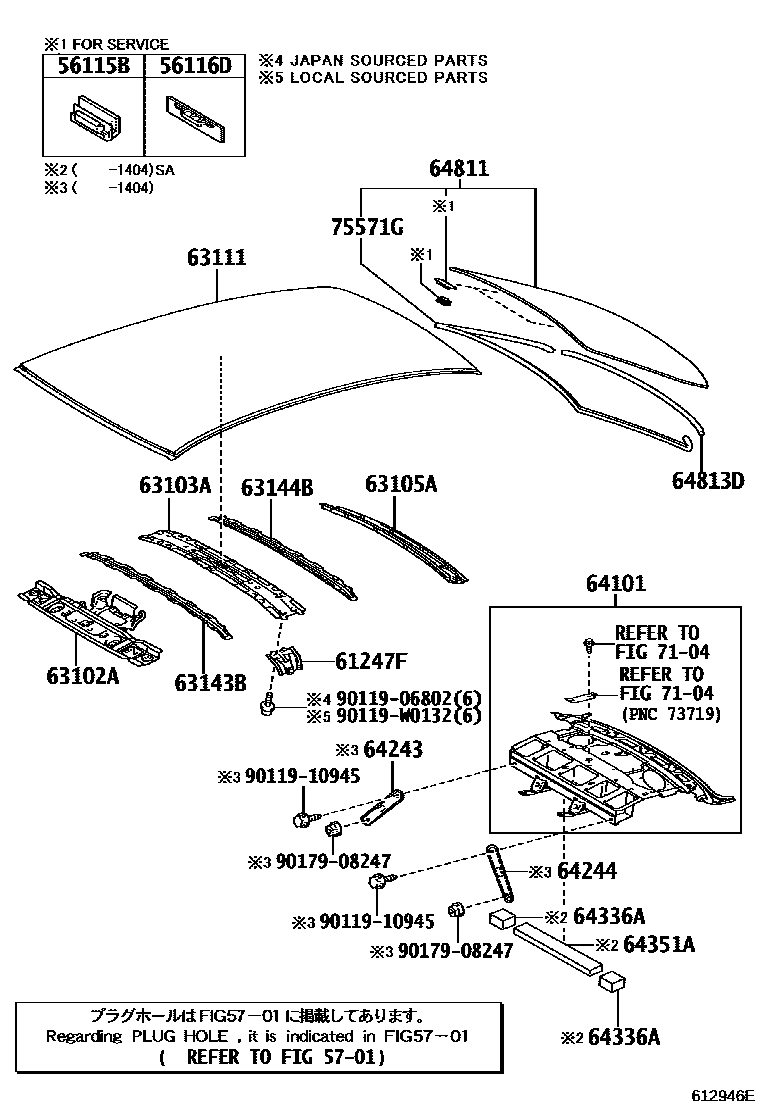

ROOF PANEL & BACK WINDOW GLASS

56115BSTOPPER, BACK WINDOW GLASS, NO.1

main56115-30120×2iNDE150,ZRE15#,ZZE150200707-200902

56116DSTOPPER, BACK WINDOW GLASS, NO.2

main56116-22050×2iNDE150,ZRE15#,ZZE150200707-200902

5701HOLE PLUG

→ Go to FIG 57-01

61247FREINFORCEMENT, ROOF SIDE RAIL, INNER

main61247-12050×2iNDE150,ZRE15#,ZZE150200707-200902

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-12230iNDE150,ZRE15#,ZZE150200707-200902

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63141-02070iNDE150,ZRE15#,ZZE150200707-200902

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-12290iNDE150,ZRE15#,ZZE150200707-200902

63111PANEL, ROOF

main63111-02250iNDE150,ZRE15#,ZZE150200707-200902

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-02040iNDE150,ZRE15#,ZZE150200707-200902

63144BREINFORCEMENT, ROOF PANEL, NO.4

main63144-02050iNDE150,ZRE15#,ZZE150200707-200902

64101PANEL SUB-ASSY, UPPER BACK

main64101-02120iNDE150,ZRE15#,ZZE150200707-200902

main64101-02540iZRE151201404

64243PANEL, ROOM PARTITION, NO.2 RH

main64243-02010iADE150,ZRE152,ZZE150;NDE150,ZRE151..5F,5FS200707-200903

64244PANEL, ROOM PARTITION, NO.2 LH

main64244-02010iADE150,ZRE152,ZZE150;NDE150,ZRE151..5F,5FS200707-200903

64336APAD, PACKAGE TRAY TRIM SILENCER, SIDE

main64336-02020×2iZRE151..(5F,5FS)..SA;ADE150,ZRE152,ZZE150..SA200707-200903

64351APAD, PACKAGE TRAY TRIM, NO.1

main64351-02020iZRE15#,ZZE150..SA200707-200902

64811GLASS, BACK WINDOW

main64801-02010iNDE150,ZRE15#,ZZE150200707-200902

*EHT,T=3.1,GREEN

main64801-02011iADE150,NDE150,NRE150,ZRE15#200902-201006

*EHT,T=3.1,GREEN

64813DDAM, BACK WINDOW GLASS ADHESIVE

main64813-12180iNDE150,ZRE15#,ZZE150200707-200902

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

75571GMOULDING, BACK WINDOW, OUTSIDE UPPER, NO.1

main75571-12A10iNDE150,ZRE15#,ZZE150200707-200902

9011906802

main90119-06802

9011910945

main90119-10945

90119W0132

main90119-W0132

9017908247

main90179-08247

23 parts on this diagram · 1 diagram in section
