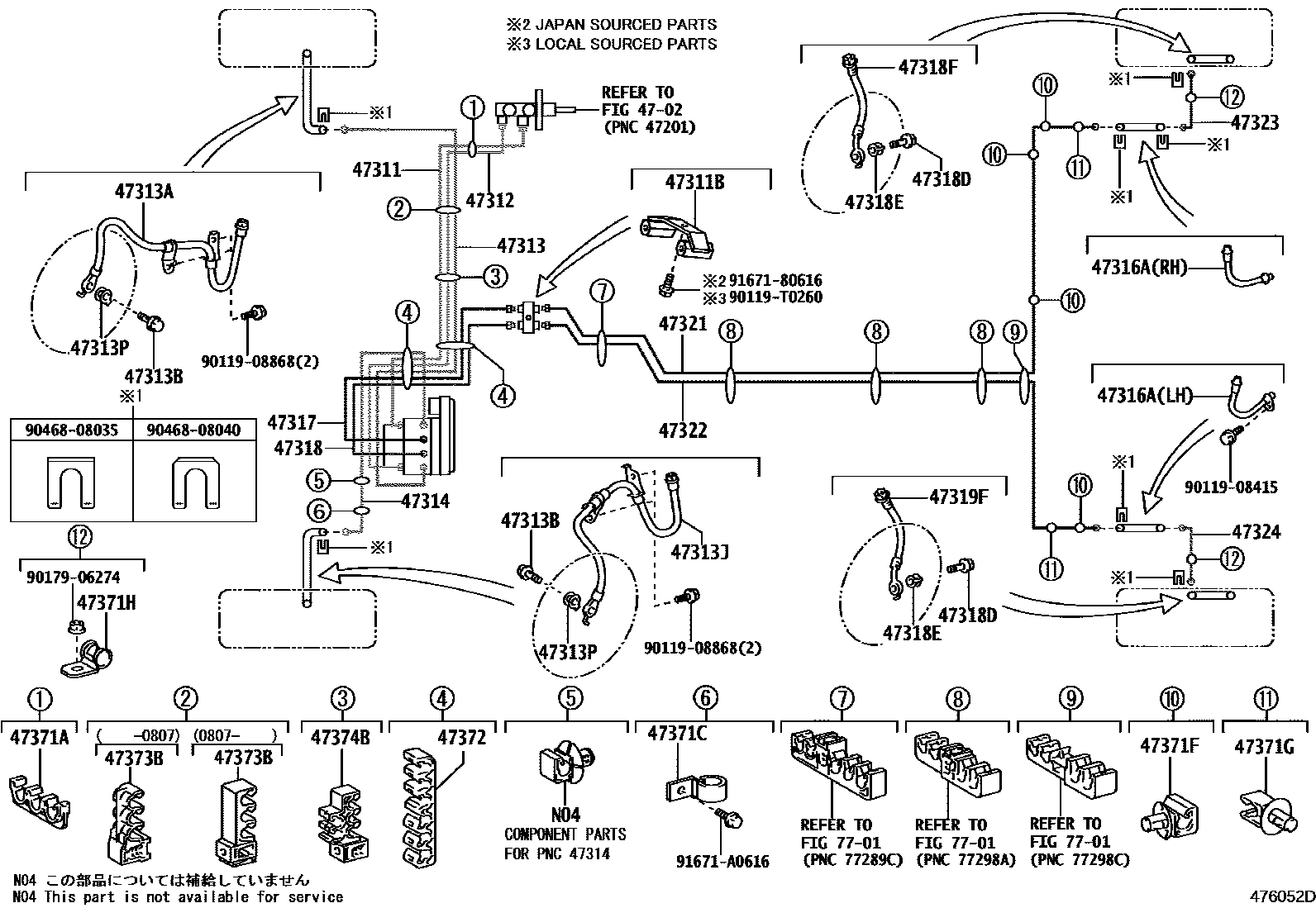

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1 0004 1W(VSC) 0005 1

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47311TUBE, FRONT BRAKE, NO.1

main47311-02420iNDE150..6F200710-201404

main47311-02490iADE150..SA200707-201404

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10255iNDE150,ZRE15#,ZZE150200707-201404

main90412-10285iZRE151201404

47312TUBE, FRONT BRAKE, NO.2

main47312-02290iNDE150..6F200710-201404

main47312-02370iZRE151..SA200707-201404

47313TUBE, FRONT BRAKE, NO.3

main47313-02370iNDE150..6F200710-201404

main47313-02440iADE150,NRE150,ZRE15#..RHD200707-201404

main47313-02810iZRE151..GEN201404

main47313-02820iZRE151..SA201404

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-W2012iADE150,NDE150,NRE150,ZRE15#200707-201404

main90947-W2042iZRE151201404

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058iNDE150..6FS200707-201404

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-W2013iNDE150,ZRE15#,ZZE150200707-201404

main90947-W2043iZRE151201404

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50020iZRE151..D..SA;ZRE151..LHD..D200707-201404

47314TUBE, FRONT BRAKE, NO.4

main47314-02420iADE150..GEN200710-201404

main47314-02440iZRE151..RHD..4FC;ZRE151..RHD..6F..N;ZRE151..RHD..6F..D..GEN;ADE150,NRE150,ZRE152,153..RHD200707-201404

main47314-02B80iZRE151..GEN201404

main47314-02B90iZRE151..SA201404

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-W2014iADE150200707-201404

LH

main90947-W2015iNDE150,ZRE15#,ZZE150200707-201404

RH

main90947-W2045iZRE151201404

RH

main90947-W2046iZRE151201404

LH

47317TUBE, FRONT BRAKE, NO.7

main47317-02340iADE150..GEN200710-201404

main47317-02360iZRE151..D..SA200707-201404

main47317-02B20iZRE151..GEN201404

main47317-02B30iZRE151..SA201404

47318TUBE, FRONT BRAKE, NO.8

main47318-02360iNDE150..6F200710-201404

main47318-02380iZRE15#,ZZE150..RHD200707-201404

main47318-02B40iZRE151..GEN201404

main47318-02B50iZRE151..SA201404

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058iNDE150..6F200707-201404

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50020iZRE151..D..SA;ZRE151..LHD..D200707-201404

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-W2016iNDE150,ZRE15#,ZZE150200707-201404

main90947-W2044iZRE151201404

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-W2016iNDE150,ZRE15#,ZZE150200707-201404

main90947-W2044iZRE151201404

47321TUBE, REAR BRAKE, NO.1

main47321-02210iNDE150,ZRE15#,ZZE150200707-201404

main47321-02550iZRE151201404

47322TUBE, REAR BRAKE, NO.2

main47322-02210iNDE150,ZRE15#,ZZE150200707-201404

main47322-02550iZRE151201404

47323TUBE, REAR BRAKE, NO.3

main47323-02090iNDE150,ZRE15#,ZZE150200707-201404

main47323-02190iZRE151201404

47324TUBE, REAR BRAKE, NO.4

main47324-02090iADE150200707-201404

main47324-02190iZRE151201404

47371ACLAMP, BRAKE TUBE, NO.1

main90464-00868iNDE150,ZRE15#,ZZE150200707-201404

47371CCLAMP, BRAKE TUBE, NO.7

main90461-10781iNDE150,ZRE15#,ZZE150200707-201404

main90461-10843iZRE151201404

47371FCLAMP, BRAKE TUBE, NO.10

main90949-01D17iNDE150,ZRE15#,ZZE150200707-201404

47371GCLAMP, BRAKE TUBE, NO.11

main90949-01D29iNDE150,ZRE15#,ZZE150200707-201404

47371HCLAMP, BRAKE TUBE, NO.12

main90461-10837iADE150200707-201404

main90461-10843iZRE151201404

47372CLAMP, BRAKE TUBE, NO.2

main90464-00890iZRE151..RHD..4FC;ZRE151..RHD..6F..N;ZRE151..RHD..6F..D..GEN;ADE150,NRE150,ZRE152,153..RHD200707-201404

main90464-00900iZRE151..LHD..D200710-201404

47373BCLAMP, BRAKE TUBE, NO.3

main90949-01C82iZRE151..GEN201404

main90949-01D05iADE150,ZRE15#,ZZE150..RHD200707-200807

main90949-01D69iADE150..SA200807-201404

47374BCLAMP, BRAKE TUBE, NO.4

main90949-01D45iZRE15#,ZZE150..RHD200707-201404

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9011908415

main90119-08415

9011908868

main90119-08868

90119T0260

main90119-T0260

9017906274

main90179-06274

9046808035

main90468-08035

9046808040

main90468-08040

9167180616

main91671-80616

91671A0616

main91671-A0616

38 parts on this diagram · 5 diagrams in section
