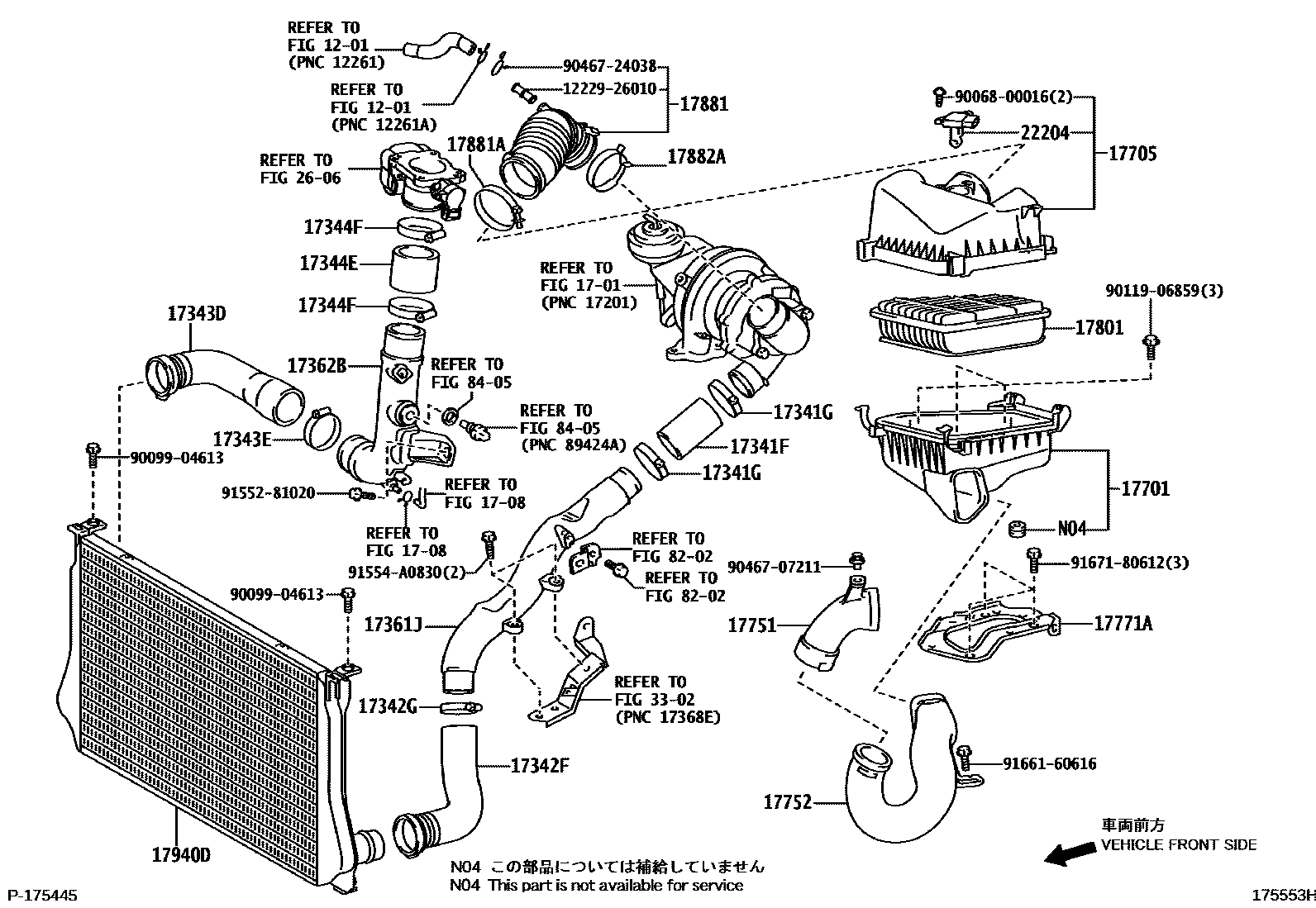

1201VENTILATION HOSE

→ Go to FIG 12-01

1701MANIFOLD

→ Go to FIG 17-01

1708VACUUM PIPING

→ Go to FIG 17-08

17341FHOSE, AIR, NO.1

main17341-26100i200707-200802

main17341-26101i201006

main17341-33040i200710-200902

main17341-33070i201006-201306

NO.2

main17341-33080i201006-201211

NO.1

17341GCLAMP OR CLIP(FOR AIR HOSE, NO.1)

main90460-50005×2i200710-200902

main90460-63011×2i201006-201306

main90460-65012×2i200903-201006

17342FHOSE, AIR, NO.2(FOR INTERCOOLER)

main17342-26110i200707-200802

main17342-33080i201006-201211

main17342-33120i201211-201306

17342GCLAMP, HOSE, NO.2(FOR INTERCOOLER)

main90460-70003i200903-201006

17343DHOSE, AIR, NO.3

main17343-26050i200707-200903

main17343-26060i200903-200906

main17343-26090i200906-201006

main17343-33070i201006-201211

main17343-33100i201211-201306

17343ECLAMP, HOSE(FOR AIR HOSE, NO.3)

main90460-60006×2i200902-201006

main90460-73011i201006

NO.1

main90460-77002i201006

NO.2

17344EHOSE, AIR, NO.4

main17344-0R010i200707-200903

17344FCLAMP, HOSE(FOR AIR HOSE, NO.4)

main90460-77002×2i200707-200903

17361JTUBE, AIR, NO.1

main17361-26050i201006

main17361-33050i200710-200902

main17361-33100i201211-201306

17362BTUBE, AIR, NO.2

main17362-0R021i200707-200903

main17362-0R030i201006

main17362-33050i200902-201006

main17362-33080i201211-201306

17701CASE SUB-ASSY, AIR CLEANER

main17701-0D160i200707-200902

main17701-0R020i200707-200903

17705CAP SUB-ASSY, AIR CLEANER

main17705-0D170i200707-200902

main17705-0D220i200707-200902

main17705-0N030i200710-200902

main17705-0N070i200902-201006

main17705-0R020i200707-200712

main17705-0R021i200801-200803

main17705-0R022i200804-200903

main17705-0R040i201006

main17705-0T090i201006-201103

main17705-0T091i201404

main17705-0Y040i201006-201103

main17705-0Y041i201104

17751INLET, AIR CLEANER, NO.1

main17751-22180i200707-200902

main17751-26050i201006

main17751-37020i201006-201404

main17751-47030i200902-201006

17752INLET, AIR CLEANER, NO.2

main17752-21060i200707-200902

main17752-26030i201006

main17752-37030i200902-201006

main17752-37130supersedes 17752-37030i201203-201404

main17752-47010i201006

17771ABRACKET, AIR CLEANER

main17771-0R010i200710-200902

main17771-0R020i200902-201006

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-0D090i200902-201006

main17801-0R030i201006-201306

17881HOSE, AIR CLEANER, NO.1

main17880-0D090i200707-200902

main17880-0D230i201006-201404

main17880-0N040i200710-200902

main17880-0R020i200707-200903

main17880-0T060i201010-201401

main17880-0Y020i201006

main17881-0D220i200707-200902

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main90466-54002i200710-200902

NO.2

main96111-10730i200707-200902

NO.2

main96111-10750i200902-201006

main96111-10780i200707-200902

NO.2

main96111-10800i200707-200902

NO.1

main96111-10830i200707-200902

NO.1

main96111-10850i201006

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90466-54002i200902-201006

main90466-62002i200707-200903

main96111-10780i200902-201006

17940DINTERCOOLER ASSY

main17900-0N020i200710-200902

main17900-0N040i201006-201211

main17940-0N080i201211-201306

main17940-0R020i200707-200903

main17940-0R040i201006

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0N010i200707-200903

main22204-0V020i201104-201401

MARK 22204-0V020

main22204-26010i200902-201006

main22204-28010i201104-201401

MARK 22204-28010

main22204-31020i200707-200902

main22204-33010i200710-200902

main22204-37010i201006-201103

2606VENTURI

→ Go to FIG 26-06

3302CLUTCH HOUSING & TRANSMISSION CASE (MTM)

→ Go to FIG 33-02

8202WIRING & CLAMP

→ Go to FIG 82-02

8405ELECTRONIC CONTROLED DIESEL (ECD)

→ Go to FIG 84-05

1222926010PIPE, VENTILATION

main12229-26010

9006800016

main90068-00016

9009904613

main90099-04613

9011906859

main90119-06859

9046707211

main90467-07211

9046724038

main90467-24038

9155281020

main91552-81020

91554A0830

main91554-A0830

9166160616

main91661-60616

9167180612

main91671-80612
