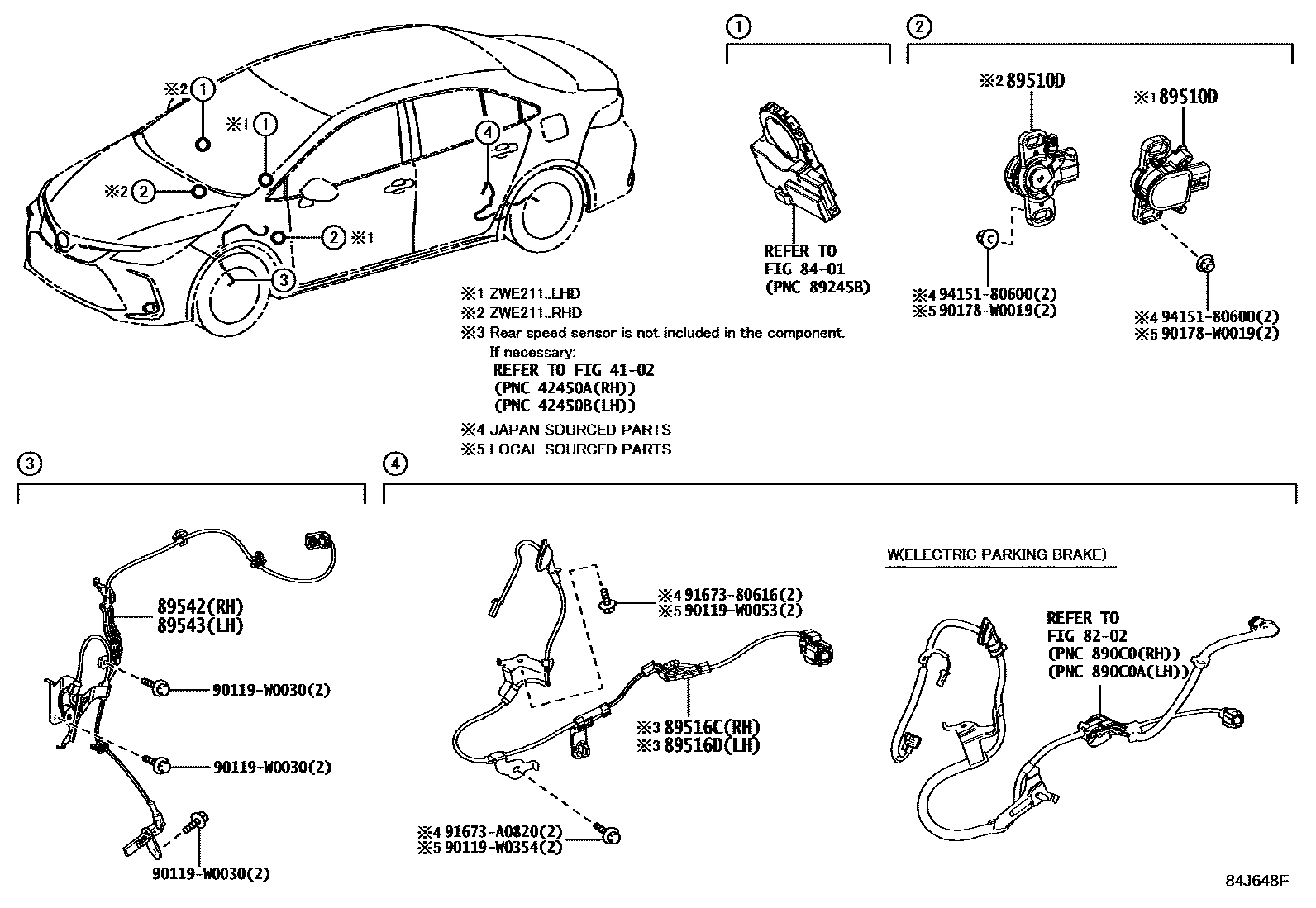

ABS & VSC

0001 1 0002 1

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-47030iZWE211,213..RHD201901

main89510-47040iZWE211,213..LHD201901

main89510-K0010iZWE219..LHD202301-202306

MARK=89510-K0010

main89510-K0011iZWE219..LHD202306

MARK=89510-K0011

main89510-K0020iZWE219..RHD202301-202306

MARK=89510-K0020

main89510-K0021iZWE219..RHD202306

MARK=89510-K0021

89516CWIRE, SKID CONTROL SENSOR, RH

main89516-02290iMZEA11..LHD..D;ZRE210..D..RUS;ZRE211..LHD..N;ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN)201901-202301

89516DWIRE, SKID CONTROL SENSOR, LH

main89516-02300iMZEA11..LHD..D;ZRE210..D..RUS;ZRE211..LHD..N;ZRE210..CVT..(G,N)..(GEN,RUS);ZRE210..LHD..CVT..D..(GCC,GEN)201901-202301

89542SENSOR, SPEED, FRONT RH

main89542-02170iZRE210..G..EUR;ZRE210..RHD..EUR201901-202012

89543SENSOR, SPEED, FRONT LH

main89543-02170iZRE210..G..EUR;ZRE210..RHD..EUR201901-202012

90119W0030

main90119-W0030

90119W0053

main90119-W0053

90119W0354

main90119-W0354

90178W0019

main90178-W0019

9167380616

main91673-80616

91673A0820

main91673-A0820

9415180600

main94151-80600

15 parts on this diagram · 2 diagrams in section
