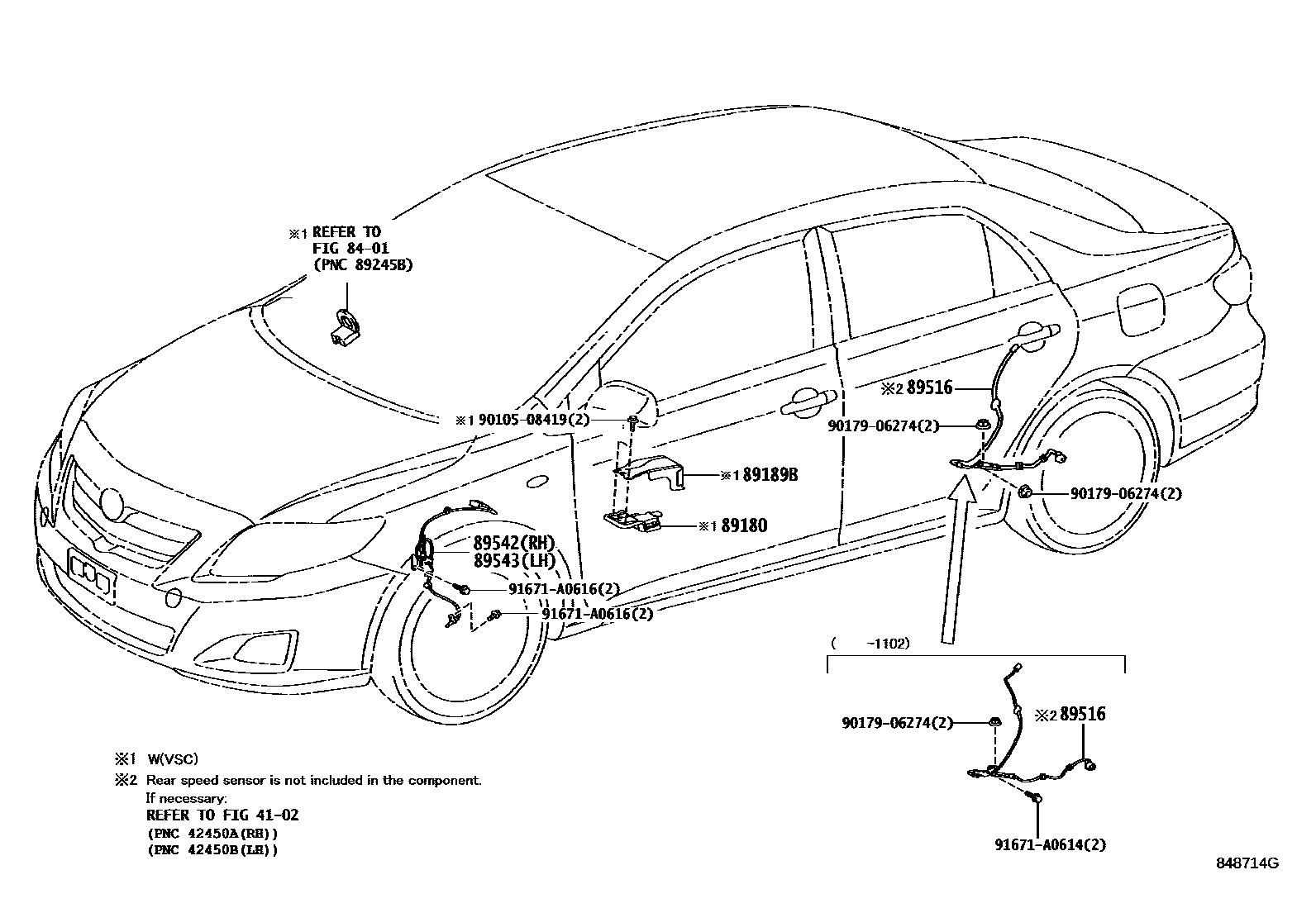

ABS & VSC

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89180SENSOR ASSY, YAWRATE

main89180-12140201004

89189BBRACKET, YAWRATE SENSOR

main89189-12091201004

89516WIRE, SKID CONTROL SENSOR

main89516-12051200911-201102

main89516-12061200911-201102

main89516-12070201102-201311

main89516-12080201102-201311

main89516-12180200703-200910

main89516-12190200703-200910

89542SENSOR, SPEED, FRONT RH

main89542-12080200703-201004

89543SENSOR, SPEED, FRONT LH

main89543-12080200703-201004

9010508419

main90105-08419

9017906274

main90179-06274

91671A0614

main91671-A0614

91671A0616

main91671-A0616

11 parts on this diagram · 1 diagram in section
