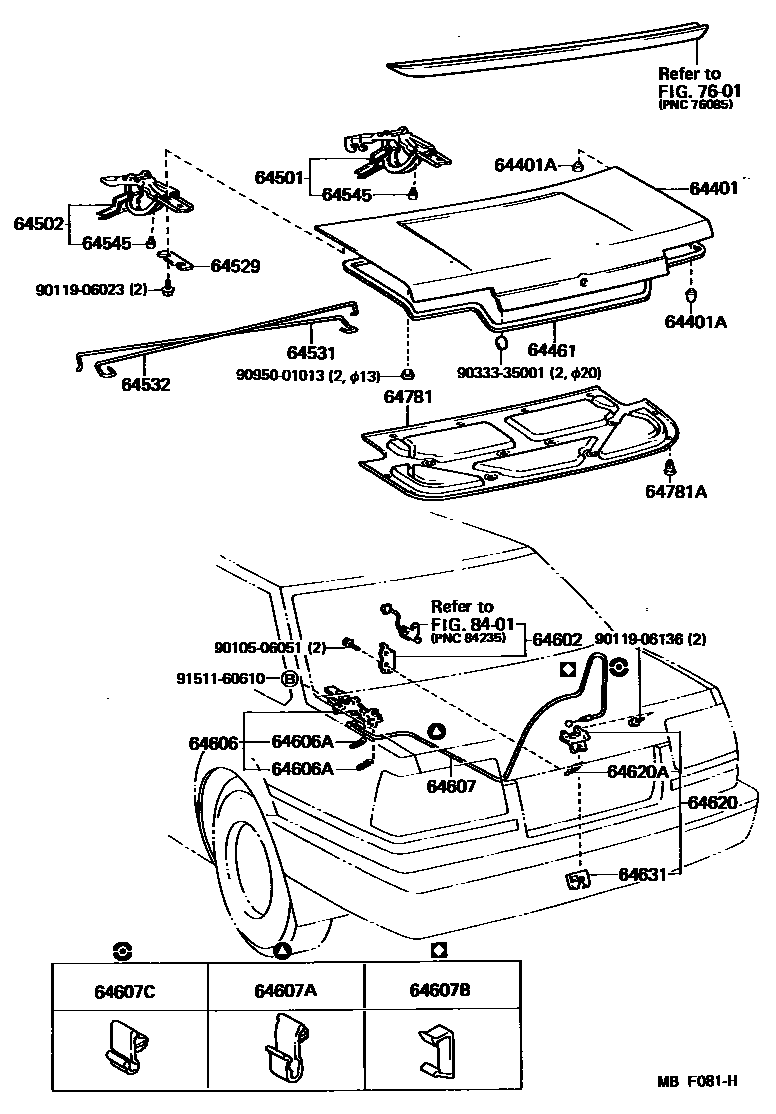

LUGGAGE COMPARTMENT DOOR & LOCK

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-12570iAE86..2D198305-198608

main64401-12810iAE86..2D..EUR198401-198608

W/RR SPOILER

main64401-1A280iAE86..2D198608-198704

main64401-1A290iAE86..2D..EUR198608-198704

W/RR SPOILER

64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90541-06076×2iAE86..2D198305-198704

FR

main90541-09035×2iAE86..2D198305-198704

RR

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-12230iAE86..2D198305-198506

main64461-12340iAE86..2D198506-198508

64501HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-12190iAE86..2D198305-198704

64502HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64520-12180iAE86..2D198305-198704

64529SPACER, LUGGAGE COMPARTMENT DOOR HINGE

main64529-20010×4iAE86..2D198305-198704

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-12150iAE86..2D198305-198704

main64531-12180iAE86..2D..EUR198401-198704

W/RR SPOILER

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-12140iAE86..2D198305-198704

main64532-12170iAE86..2D..EUR198401-198704

W/RR SPOILER

64545CUSHION, LUGGAGE DOOR HINGE

main90541-07007×2iAE86..2D198305-198704

64602STRIKER SUB-ASSY, LUGGAGE COMPARTMENT DOOR LOCK

main64620-12070iAE86..2D..EUR198308-198704

main64621-12060iAE86..2D..GEN198305-198704

64606LEVER SUB-ASSY, LUGGAGE DOOR LOCK OPEN

main64606-12070iAE86..2D..LHD..GEN198305-198704

main64606-16030iAE86..2D..RHD198305-198704

64606ASPRING, TENSION(FOR LUGGAGE DOOR LOCK OPEN LEVER)

main90506-09004×2iAE86..2D..GEN198305-198704

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-12260iAE86..2D..RHD198305-198704

main64607-12270iAE86..2D..LHD..GEN198305-198704

64607ACLAMP, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE)

main90467-12009iAE86..2D..GEN198305-198704

64607BCLAMP, NO.2(FOR LUGGAGE DOOR LOCK CONTROL CABLE)

main82711-16180iAE86..2D..GEN198305-198704

64607CCLAMP, NO.3(FOR LUGGAGE DOOR LOCK CONTROL CABLE)

main69749-12010×2iAE86..2D..GEN198305-198704

64620LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64610-12090iAE86..2D198305-198408

main64610-20080iAE86..2D198408-198704

64620ASPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK)

main90506-08001iAE86..2D198305-198704

64631PROTECTOR, LUGGAGE DOOR LOCK

main64631-12010iAE86..2D198308-198704

64781BOARD, BACK DOOR TRIM

main64781-12060iAE86..2D..EUR198308-198704

64781ACLIP, BACK DOOR TRIM BOARD

main90467-07041-02×11iAE86..2D..EUG198308-198503

DEEP MAROON,RED/MAROON,TRIM3#

main90467-07041-04×11iAE86..2D..EUG198308-198503

BLUE,BLUE,TRIM8#

main90467-08114-11×11iAE86..2D..EUR198503-198704

BLACK,BLACK,TRIM2#

7601MUDGUARD & SPOILER

→ Go to FIG 76-01

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010506051

main90105-06051

9011906023

main90119-06023

9011906136

main90119-06136

9033335001

main90333-35001

9095001013

main90950-01013

9151160610

main91511-60610

29 parts on this diagram · 1 diagram in section
