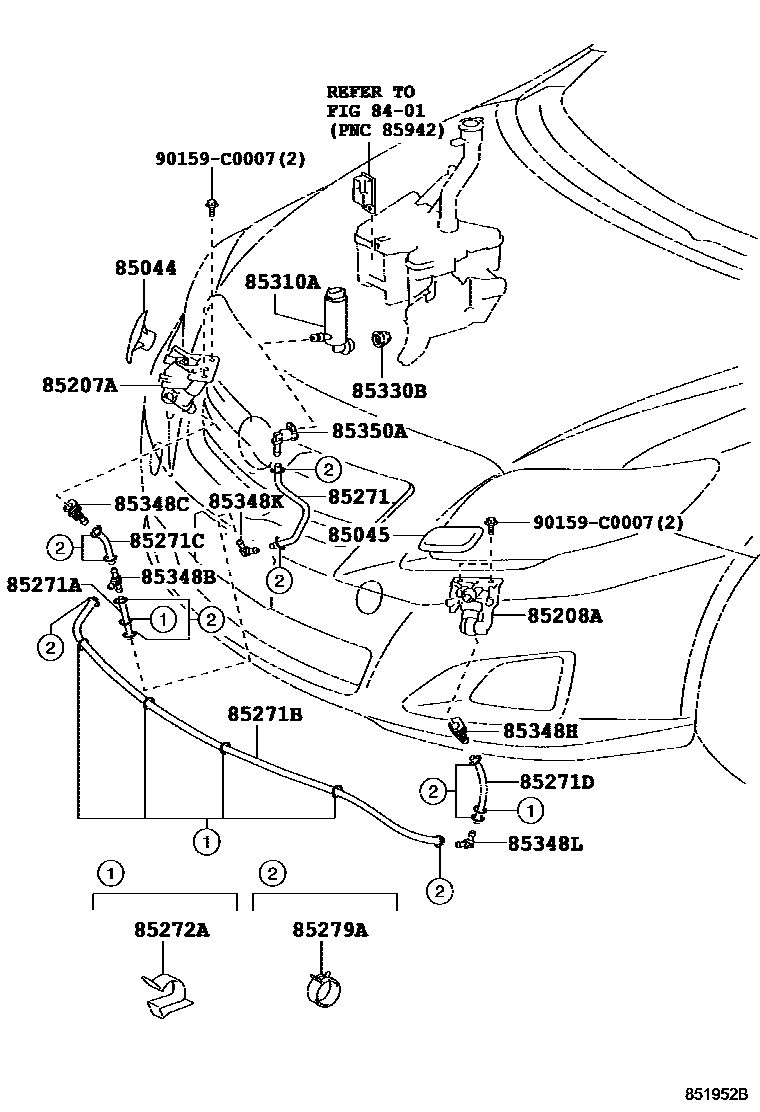

HEADLAMP CLEANER
8401SWITCH & RELAY & COMPUTER
85044NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, RH
SUPER WHITE 2,040
SILVER ME.,1F7
BLACK MC.,209
RED M.M.,3R3
BEIGE M. M.,4Q2
DK.BLUE MC.,8S6
85045NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, LH
SUPER WHITE 2,040
SILVER ME.,1F7
BLACK MC.,209
RED M.M.,3R3
BEIGE M. M.,4Q2
DK.BLUE MC.,8S6
85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH
85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH
85271HOSE, HEADLAMP CLEANER, NO.1
85271AHOSE, HEADLAMP CLEANER, NO.2
L=120
85271BHOSE, HEADLAMP CLEANER, NO.3
L=1380
85271CHOSE, HEADLAMP CLEANER, NO.4
L=90
85271DHOSE, HEADLAMP CLEANER, NO.5
L=195
85272ACLAMP, HEADLAMP CLEANER, NO.1
85279AJOINT, HEADLAMP CLEANER HOSE
85310AMOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER
85330BBUSH, HEADLAMP CLEANER WASHER JAR
85348BJOINT, HEADLAMP CLEANER HOSE, NO.2
85348CJOINT, HEADLAMP CLEANER HOSE, NO.3
85348HJOINT, HEADLAMP CLEANER HOSE, NO.4
85348KJOINT, HEADLAMP CLEANER ELBOW, NO.1
85348LJOINT, HEADLAMP CLEANER ELBOW, NO.2
85350AJOINT, HEADLAMP CLEANER ELBOW, NO.3
90159C0007
main90159-C0007
21 parts on this diagram · 2 diagrams in section
