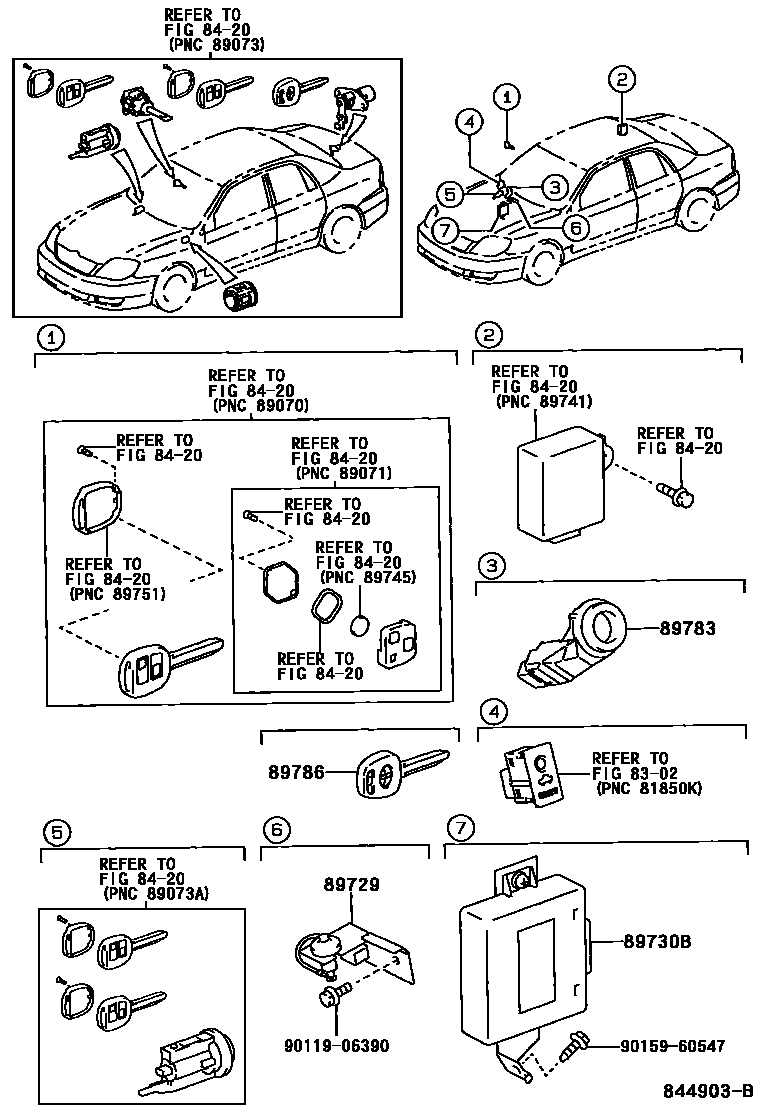

ANTI-THEFT DEVICE

0001 1 0003 1W(KEY LESS ENTRY) 0005 1W/O(KEY LESS ENTRY)

8302INDICATOR

→ Go to FIG 83-02

8420WIRELESS DOOR LOCK

→ Go to FIG 84-20

89729SWITCH, THEFT WARNING COURTESY

main84243-02010iZZE12#200208-200209

main84243-02011iZZE12#..SA200209-200408

main84243-02020iZZE12#..5D..SA200408-200707

89730BCOMPUTER ASSY, THEFT WARNING

main89730-02030iZZE12#..SA200210-200408

89783AMPLIFIER, TRANSPONDER KEY

main89783-12040iZZE122,123..5D200210-200408

PART NUMBER LABEL=89783-12040

main89783-52010iZZE120,121,122200208-200408

PART NUMBER LABEL=89783-52010

main89783-52020iZZE120,121,122200704-200707

PART NUMBER LABEL=89783-52020

89786TRANSMITTER, TRANSPONDER KEY SUB

main89786-60050iZZE12#200208-200408

9011906390

main90119-06390

9015960547

main90159-60547

8 parts on this diagram · 3 diagrams in section
