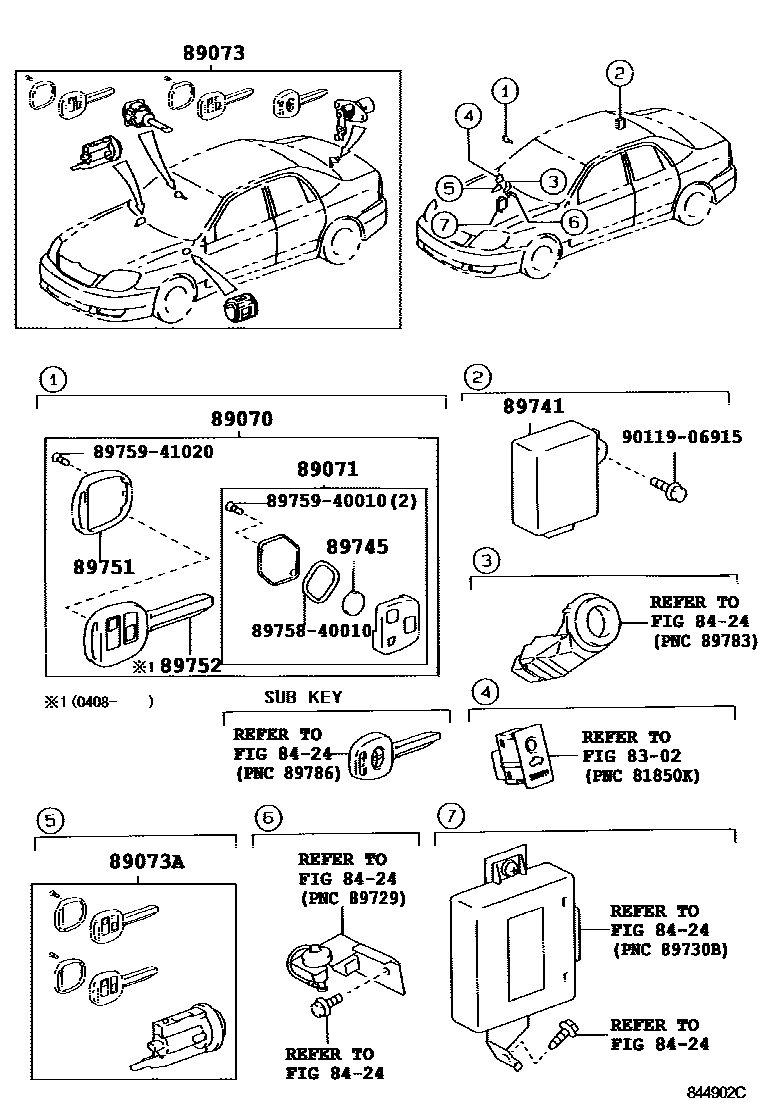

WIRELESS DOOR LOCK

0001 1 0002 1

8302INDICATOR

→ Go to FIG 83-02

8424ANTI-THEFT DEVICE

→ Go to FIG 84-24

89070TRANSMITTER ASSY, DOOR CONTROL

main89070-12120200303-200408

main89070-12190200208-200408

main89070-12191200408-200707

main89070-44080200408-200510

89071MODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL

main89071-60030200303-200510

main89071-60081200208-200707

89073CYLINDER SET, LOCK W/TRANSMITTER HOUSING(LESS MODULE)

main89073-12411200208-200502

main89073-12412200503-200707

main89073-12421200210-200502

main89073-12422200503-200707

main89073-12440200303-200510

89073AIGN CYLINDER SET LOCK W/TRANSMITTER HOUSING (CUT KEY)

main89073-12330200303-200510

main89073-12401200208-200502

main89073-12402200503-200707

89741RECEIVER, DOOR CONTROL

main89741-12290200208-200707

main89741-12300200303-200510

main89741-12310200210-200707

89745BATTERY, TRANSMITTER

main89745-40010200208-200707

89751COVER, TRANSMITTER HOUSING

main89751-13010200208-200502

main89751-13011200503-200707

89752CASE, TRANSMITTER HOUSING

main89752-13020200408-200707

8975840010PACKING, DOOR CONTROL TRANSMITTER

main89758-40010

8975940010SCREW, DOOR CONTROL TRANSMITTER

main89759-40010

8975941020SCREW, DOOR CONTROL TRANSMITTER

main89759-41020

9011906915

main90119-06915

14 parts on this diagram · 2 diagrams in section
