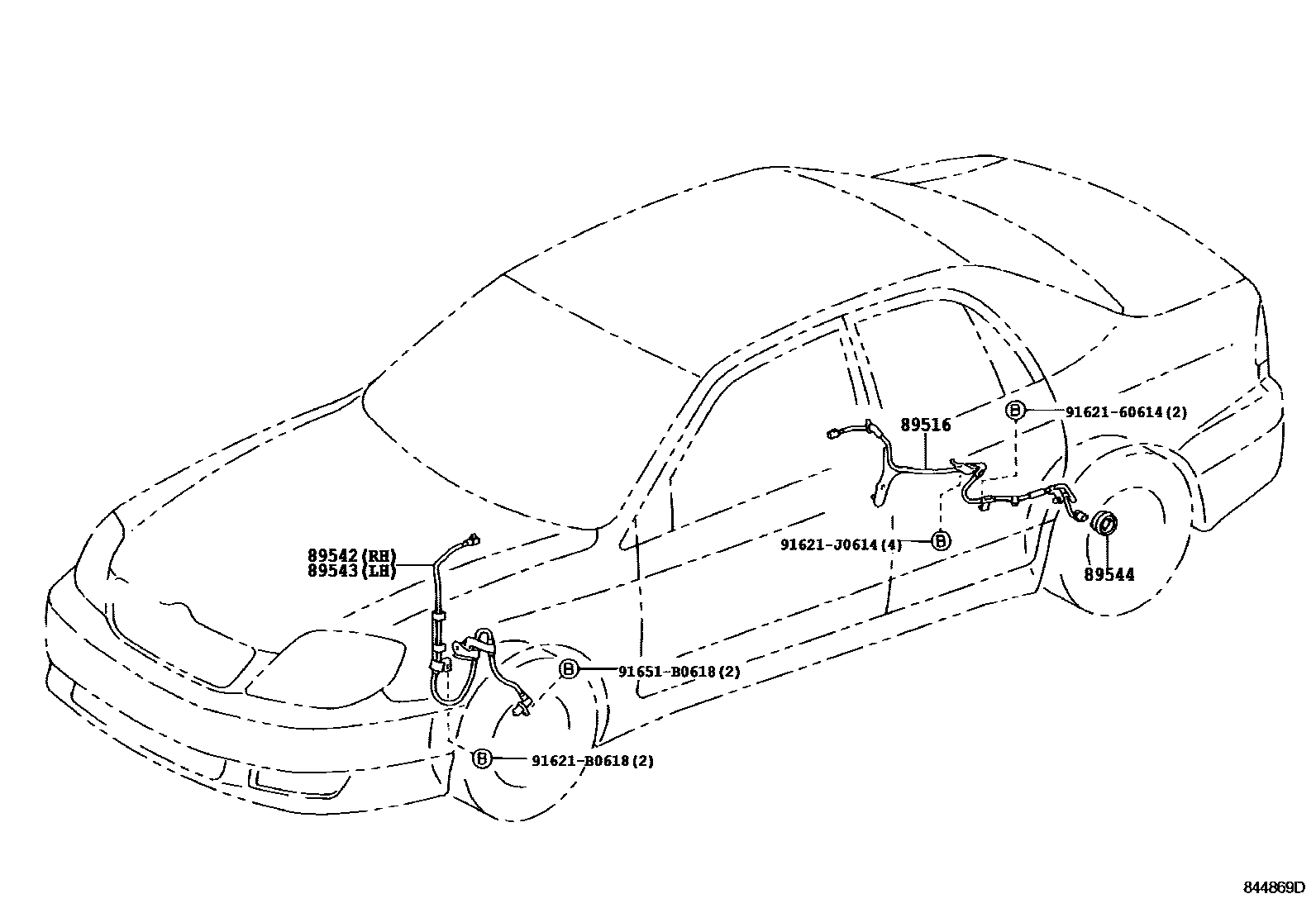

ABS & VSC

89516WIRE, SKID CONTROL SENSOR

main89516-12010iZZE123;ZZE120,121,122..SA..STD200208-200408

RH

main89516-12020iZZE123;ZZE120,121,122..SA..STD200208-200408

LH

89542SENSOR, SPEED, FRONT RH

main89542-12070iZZE123;ZZE122..SA;ZZE120,121..GLS,GSX,RS,RX200408-200707

89543SENSOR, SPEED, FRONT LH

main89543-12070iZZE123;ZZE120,121,122..SA..STD200208-200408

89544SENSOR, SKID CONTROL

main89544-12010×2iZZE123;ZZE120,121,122..SA..STD200208-200408

9162160614

main91621-60614

91621B0618

main91621-B0618

91621J0614

main91621-J0614

91651B0618

main91651-B0618

8 parts on this diagram · 1 diagram in section
