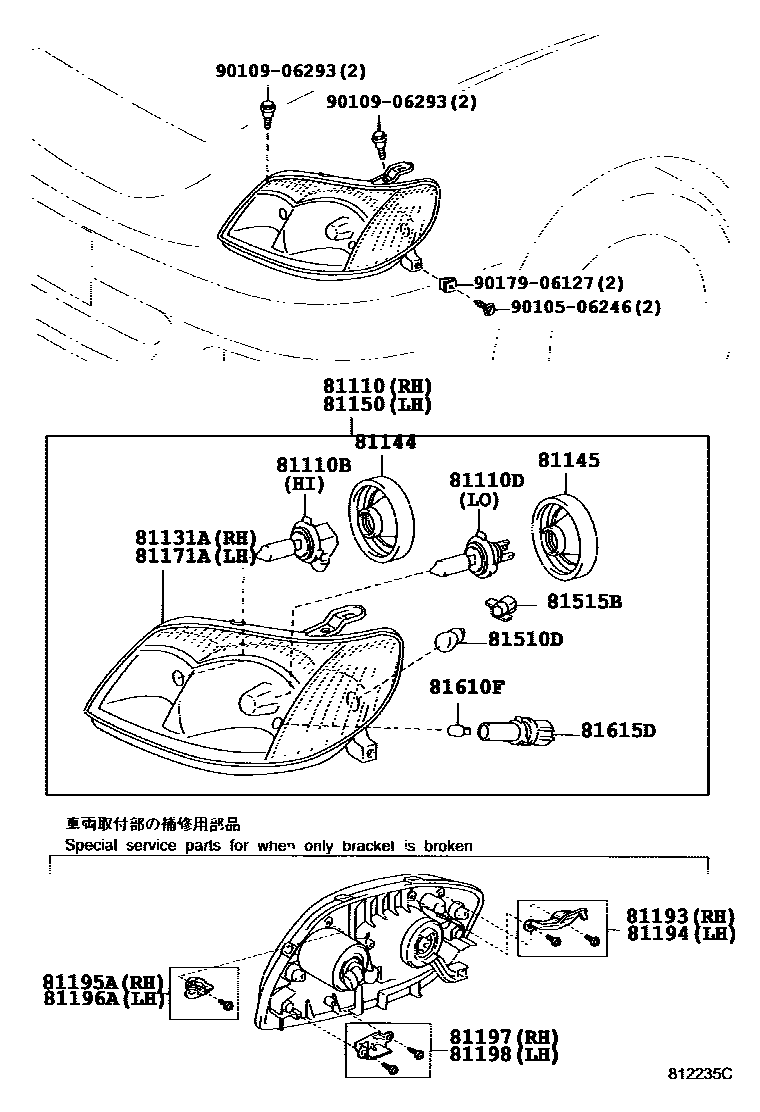

HEADLAMP

0001 1 0003 1

81110HEADLAMP ASSY, RH

main81110-02230iZZE122;ZZE123..ARL;ZZE120,121..4D200208-200408

main81110-02240iZZE120,121,123..5D..SA200210-200408

main81110-02420iZZE12#..5D200408-200707

81110BBULB(FOR HEADLAMP, NO.1)

main90080-81041×2iZZE12#200208-200408

12V 65W,SAVP PART

81110DBULB(FOR HEADLAMP, NO.2)

main90981-13063×4iZZE12#..5D; ZZE120,121,122..4D200408-200707

12V 55W,HALOGEN

81131AUNIT, HEADLAMP, RH

main81130-02230iZZE122;ZZE123..ARL;ZZE120,121..4D200208-200408

main81130-02240iZZE120,121,123..5D..SA200210-200408

main81130-02420iZZE12#..5D200408-200707

81144COVER, HEADLAMP, NO.1

main90069-81042×2iZZE120,121,122..4D200408-200707

main90069-81059×2iZZE12#..5D200408-200707

81145COVER, HEADLAMP, NO.2

main90069-81040×2iZZE12#200208-200408

main90069-81060iZZE12#..5D200408-200707

RH

main90069-81091iZZE12#..5D200408-200707

LH

81150HEADLAMP ASSY, LH

main81150-02240iZZE122;ZZE123..ARL;ZZE120,121..4D200208-200408

main81150-02250iZZE120,121,123..5D..SA200210-200408

main81150-02410iZZE12#..5D200408-200707

81171AUNIT, HEADLAMP, LH

main81170-02240iZZE122;ZZE123..ARL;ZZE120,121..4D200208-200408

main81170-02250iZZE120,121,123..5D..SA200210-200408

main81170-02410iZZE12#..5D200408-200707

81193RETAINER, HEADLAMP PROTECTOR, UPPER RH

main81193-12010iZZE12#200208-200408

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-12010iZZE12#200208-200408

81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH

main81195-12010iZZE12#200208-200408

81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH

main81196-12010iZZE12#200208-200408

81197BRACKET, HEADLAMP, LOWER RH

main81197-12010iZZE12#200208-200408

81198BRACKET, HEADLAMP, LWR LH

main81198-12010iZZE12#200208-200408

81510DBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15009×2iZZE12#200208-200408

12V 21W,AMBER,SAVP PART

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90069-81038×2iZZE12#200208-200408

main99159-10248×2iZZE12#..5D200408-200707

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050×2iZZE12#200208-200408

12V 5W,SAVP PART

81615DSOCKET, CLEARANCE LAMP

main90069-81039×2iZZE12#200208-200408

9010506246

main90105-06246

9010906293

main90109-06293

9017906127

main90179-06127

21 parts on this diagram · 2 diagrams in section
