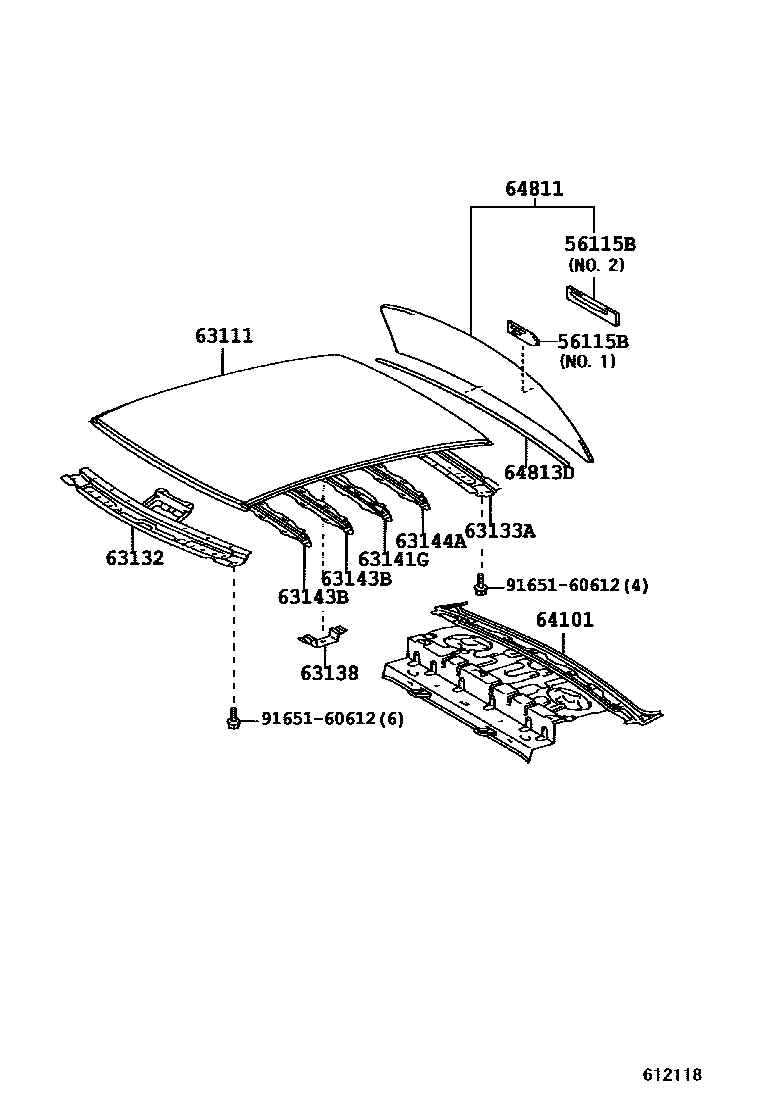

ROOF PANEL & BACK WINDOW GLASS
56115BSTOPPER, BACK WINDOW GLASS, NO.1
NO.1
NO.2
63111PANEL, ROOF
SAVP PART
63132PANEL, WINDSHIELD HEADER, INNER
63133AFRAME, BACK WINDOW, UPPER
63138BRACKET, DOME LAMP, NO.2
63141GREINFORCEMENT, ROOF PANEL, NO.1
63143BREINFORCEMENT, ROOF PANEL, NO.3
63144AREINFORCEMENT, ROOF PANEL, NO.4
64101PANEL SUB-ASSY, UPPER BACK
64811GLASS, BACK WINDOW
*EHTT,T=3.1,GREEN
*TEM,T=3.1,GREEN
64813DDAM, BACK WINDOW GLASS ADHESIVE
9165160612
main91651-60612
12 parts on this diagram · 2 diagrams in section
