52562DRETAINER, REAR BUMPER, UPPER SIDE, RH

main52562-12070i200208-200707

52563CRETAINER, REAR BUMPER, UPPER SIDE, LH

main52562-12070i200208-200707

61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH

main61037-12906i200208-200707

61038AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH

main61038-12906i200208-200707

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-12230i200208-200408

SAVP PART

main61108-12230i200408-200707

61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH

main61109-12220i200208-200408

SAVP PART

main61109-12220i200408-200707

61128REINFORCEMENT, COWL SIDE PANEL, RH

main61103-12190i200208-200408

main61103-12200i200408-200707

61129REINFORCEMENT, COWL SIDE PANEL, LH

main61104-12220i200208-200408

main61104-12230i200408-200707

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-12700i200208-200408

main61131-12710i200210-200707

main61131-12720i200308-200707

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-12690i200208-200707

main61132-12710i200210-200707

61161PILLAR, FRONT BODY, UPPER INNER RH

main61023-02901i200208-200707

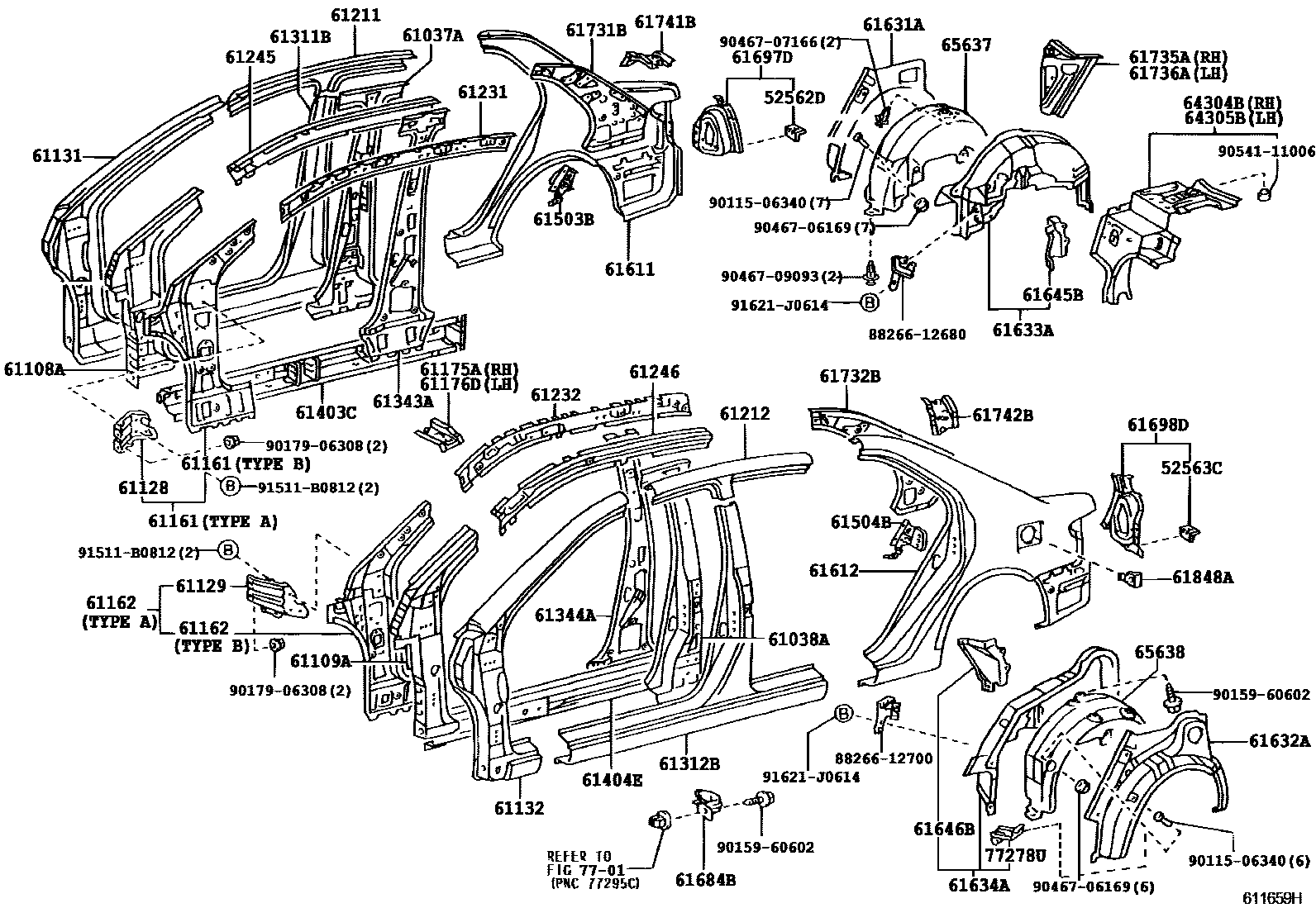

TYPE A:REFER TO ILLUSTRATION

main61023-12300i200303-200408

TYPE B:REFER TO ILLUSTRATION

61162PILLAR, FRONT BODY, UPPER INNER LH

main61024-02901i200211-200707

TYPE A:REFER TO ILLUSTRATION

main61024-12300i200208-200408

TYPE B:REFER TO ILLUSTRATION

61175AREINFORCEMENT, FRONT PILLAR, UPPER OUTER NO.2 RH

main61175-12180i200208-200707

61176DREINFORCE, FRONT BODY PILLAR, UPPER OUT NO.2 LH

main61176-12190i200208-200707

61211RAIL, ROOF SIDE, OUTER RH

main61211-12450i200208-200707

main61211-12470i200210-200707

61212RAIL, ROOF SIDE, OUTER LH

main61212-12450i200208-200707

main61212-12470i200210-200707

61231RAIL, ROOF SIDE, INNER RH

main61231-13221i200210-200707

main61231-1A140i200211-200707

61232RAIL, ROOF SIDE, INNER LH

main61232-13201i200210-200707

main61232-1A020i200208-200707

61245REINFORCEMENT, ROOF SIDE RAIL, OUTER RH

main61245-12060i200208-200707

main61245-13050i200210-200707

61246REINFORCEMENT, ROOF SIDE RAIL, OUTER LH

main61246-12060i200208-200707

main61246-13050i200210-200707

61311BPILLAR, CENTER BODY, OUTER RH

main61311-12380i200208-200707

main61311-12390i200210-200707

61312BPILLAR, CENTER BODY, OUTER LH

main61312-12420i200208-200707

main61312-12430i200210-200707

61343APILLAR, CENTER BODY, INNER RH

main61343-12190i200208-200408

SAVP PART

main61343-12190i200408-200707

61344APILLAR, CENTER BODY, INNER LH

main61344-12190i200208-200408

SAVP PART

main61344-12190i200408-200707

61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH

main61403-12010i200210-200707

main61403-12050i200303-200707

61404EREINFORCE SUB-ASSY, ROCKER, OUTER LH

main61404-12011i200408-200707

main61404-12011i200208-200408

SAVP PART

61503BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH

main61503-13030i200208-200707

61504BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, LH

main61504-13030i200208-200707

61611PANEL, QUARTER, RH

main61601-1H180i200208-200707

main61611-1E240i200210-200707

61612PANEL, QUARTER, LH

main61602-1H020i200208-200707

main61612-1E310i200210-200707

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61631-12400i200208-200707

61632APANEL, QUARTER WHEEL HOUSE, OUTER LH

main61632-12420i200208-200707

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61607-12923i200208-200408

main61607-12924i200208-200408

W(ABS)

main61607-12927i200210-200402

(L)

main61607-12927i200408-200506

main61607-12936i200408-200707

main61607-12936i200208-200408

W(ABS)

main61607-12947i200408-200506

main61607-1A900i200208-200504

main61607-1A901i200408-200707

main61607-1A901i200210-200408

W(ABS)

main61607-1A902i200210-200504

main61607-1A904i200303-200408

(J)

61634APANEL, QUARTER WHEEL HOUSE, INNER LH

main61608-12925i200210-200506

main61608-1A900i200208-200408

W(ABS)

main61608-1A901i200208-200408

main61608-1A902i200210-200402

W(ABS)

main61608-1A903i200210-200402

main61608-1A905i200408-200506

main61608-1A907i200208-200504

main61608-1A908i200408-200707

main61608-1A908i200208-200408

W(ABS)

main61608-1A917i200408-200707

main61608-1A917i200402-200408

W(ABS)

main61608-1A918i200402-200504

61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH

main61645-12150i200208-200408

SAVP PART

main61645-12150i200408-200707

61646BGUSSET, QUARTER WHEEL HOUSE, REAR LH

main61646-12140i200208-200408

SAVP PART

main61646-12140i200408-200707

61684BBRACKET, REAR WHEEL OPENING, NO.1 LH

main61684-12040i200208-200707

61697DHOUSING, QUARTER PANEL END, RH

main61697-12901i200208-200707

61698DHOUSING, QUARTER PANEL END, LH

main61698-12901i200208-200707

61731BPANEL, ROOF SIDE, INNER RH

main61731-02050i200308-200707

main61731-12680i200208-200308

SAVP PART

main61731-12740i200210-200707

61732BPANEL, ROOF SIDE, INNER LH

main61732-12640i200208-200408

SAVP PART

main61732-12700i200210-200707

main61732-12710i200208-200707

61735APANEL, ROOF SIDE, INNER REAR RH

main61735-12380i200208-200408

SAVP PART

main61735-12380i200408-200707

61736APANEL, ROOF SIDE, INNER REAR LH

main61736-12370i200208-200210

W(ABS)

main61736-12380i200208-200408

SAVP PART

main61736-12380i200408-200707

61741BREINFORCEMENT, BACK WINDOW OPENING, RH

main61741-12140i200208-200707

61742BREINFORCEMENT, BACK WINDOW OPENING, LH

main61742-12110i200208-200707

61848ARETAINER, QUARTER PANEL, LH

main61848-52010i200208-200707

64304BREINFORCE SUB-ASSY, PACKAGE TRAY BRACKET, RH

main64304-12040i200208-200408

SAVP PART

main64304-12040i200408-200707

64305BREINFORCE SUB-ASSY, PACKAGE TRAY BRACKET, LH

main64305-12040i200208-200408

SAVP PART

main64305-12040i200408-200707

65637LINER, REAR WHEEL HOUSE, RH

main65637-02030i200208-200707

65638LINER, REAR WHEEL HOUSE, LH

main65638-02030i200208-200707

7701FUEL TANK & TUBE

→ Go to FIG 77-01

77278UBRACKET, FUEL TANK FILLER PIPE PROTECTOR

main77278-32050i200208-200707

8826612680CLAMP, AIR SUSPENSION SENSOR, NO.1

main88266-12680

8826612700CLAMP, AIR SUSPENSION SENSOR, NO.1

main88266-12700

9011506340

main90115-06340

9015960602

main90159-60602

9017906308

main90179-06308

9046706169

main90467-06169

9046707166

main90467-07166

9046709093

main90467-09093

9054111006

main90541-11006

91511B0812

main91511-B0812

91621J0614

main91621-J0614

SIDE MEMBER
