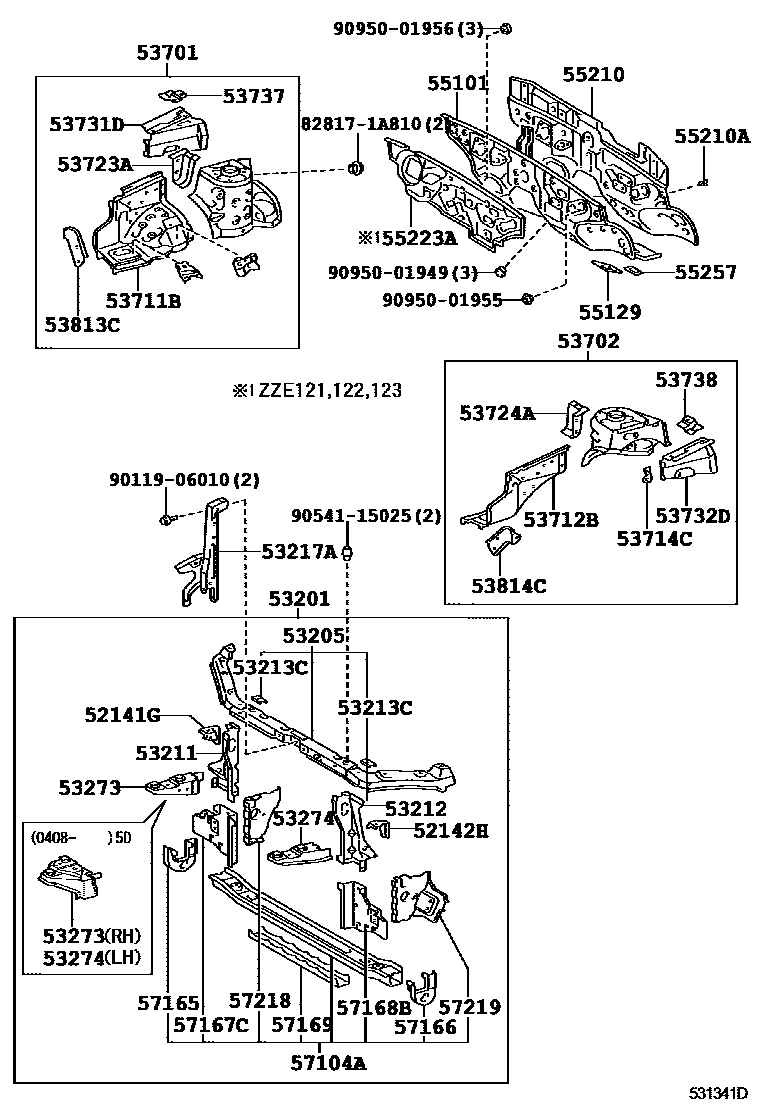

FRONT FENDER APRON & DASH PANEL

52141GSTAY, FRONT BUMPER, RH

main52141-12500200208-200707

main52141-13050200408-200707

52142HSTAY, FRONT BUMPER, LH

main52142-12430200208-200707

main52142-13050200408-200707

53201SUPPORT SUB-ASSY, RADIATOR

main53201-02150200408-200707

main53201-02160200310-200707

main53201-1A200200208-200310

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-02100200310-200707

main53205-12200200208-200310

main53205-13041200408-200707

53211SUPPORT, RADIATOR, RH

main53211-12410200208-200707

main53211-13030200408-200707

53212SUPPORT, RADIATOR, LH

main53212-12350200208-200707

main53212-13030200408-200707

53213CSUPPORT, RADIATOR, UPPER FRONT

main53213-12110200208-200707

53217ABRACE, HOOD LOCK SUPPORT

main53208-12450200208-200707

main53208-13080200408-200707

53273BRACKET, FRONT BUMPER ARM MOUNTING, RH

main53273-12030200208-200707

main53273-13060200408-200707

53274BRACKET, FRONT BUMPER ARM MOUNTING, LH

main53274-12030200208-200707

main53274-13060200408-200707

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-1A090200208-200707

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-1A060200208-200707

53711BAPRON, FRONT FENDER, FRONT RH

main53711-12230200208-200707

main53711-12905200208-200408

53712BAPRON, FRONT FENDER, FRONT LH

main53712-12190200208-200707

main53712-12904200208-200408

53714CEXTENSION, FRONT FENDER APRON, FRONT LH

main53714-12150200208-200408

main53714-13020200303-200510

53723AREINFORCEMENT, FRONT SPRING SUPPORT, RH

main53723-12080200208-200707

53724AREINFORCEMENT, FRONT SPRING SUPPORT, LH

main53724-12070200208-200707

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-12160200208-200707

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-12140200208-200707

53737PLATE, FRONT APRON TO COWL SIDE MEMBER, RH

main53737-12060200208-200707

53738PLATE, FRONT APRON TO COWL SIDE MEMBER, LH

main53738-12030200208-200707

53813CEXTENSION, FRONT FENDER, RH

main53813-12060200208-200707

53814CEXTENSION, FRONT FENDER, LH

main53814-12020200208-200707

55101PANEL SUB-ASSY, DASH

main55101-13040200408-200707

main55101-13900200303-200408

main55101-13901200210-200408

main55101-19025200209-200408

main55101-19035200209-200707

main55101-1E820200408-200506

main55101-1E905200208-200408

main55101-1E906200208-200408

main55101-1E907200408-200707

55129COVER, DASH PANEL HOLE

main55129-32030200208-200707

main55139-32010200208-200707

55210INSULATOR ASSY, DASH PANEL

main55210-02140200208-200707

55210ACLIP

main90467-10005-B0200208-200707

main90467-10005-C0200208-200408

55223AINSULATOR, DASH PANEL, OUTER

main55223-02140200208-200707

55257COVER, DASH PANEL OPENING

main55257-32010200208-200707

57104AMEMBER SUB-ASSY, FRONT CROSS

main57104-12230200208-200408

main57104-12250200408-200707

57165REINFORCEMENT, FRONT CROSSMEMBER, LOWER RH

main57165-12070200208-200707

57166REINFORCEMENT, FRONT CROSSMEMBER, LOWER LH

main57166-12020200208-200707

57167CGUSSET, FRONT CROSSMEMBER SIDE, RH

main57167-12110200208-200707

57168BGUSSET, FRONT CROSSMEMBER SIDE, LH

main57168-12110200208-200707

57169MEMBER, FRONT FLOOR, FRONT RH

main57169-12020200208-200707

57218GUSSET, FRONT SIDE MEMBER, NO.1

main57218-12020200208-200707

57219GUSSET, FRONT SIDE MEMBER, NO.2

main57219-12010200208-200707

828171A810PROTECTOR, WIRING HARNESS, NO.1

main82817-1A810

9011906010

main90119-06010

9054115025

main90541-15025

9095001949

main90950-01949

9095001955

main90950-01955

9095001956

main90950-01956

43 parts on this diagram · 1 diagram in section
