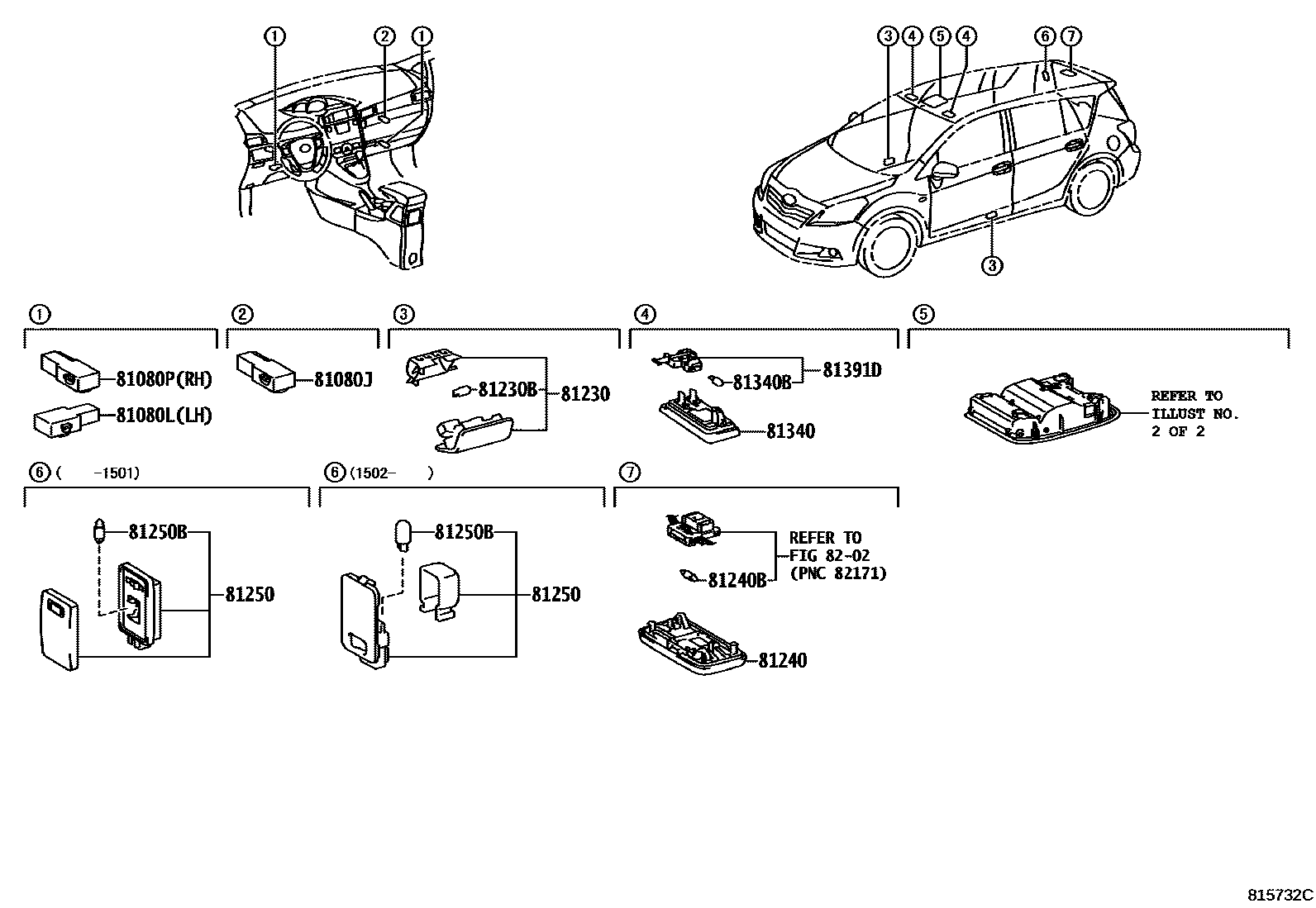

INTERIOR LAMP

0001 1 0002 1

81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-48010iZGR2#201106-201612

81080LLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH

main81080-48010iZGR2#201106

81080PLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH

main81080-48010iZGR2#201106

81230LAMP ASSY, COURTESY

main81230-06020×2iZGR2#..G201106-201206

81230BBULB(FOR COURTESY LAMP)

main90981-CC001×2iZGR21,22..V201106

12V 5W

81240LAMP ASSY, ROOM, NO.1

main81240-60060-E1iZGR2#201106-201612

GREGE,TRIM4#

81240BBULB, ROOM LAMP, NO.1

main90981-14011iZGR2#201106

12V 8W

81250LAMP ASSY, ROOM, NO.2

main81250-0F010iZGR2#201106-201501

main81330-58010iZGR2#201502

81250BBULB, ROOM LAMP, NO.2

main99132-12050iZGR2#201502

12V 5W

main99132-13050iZGR2#201106-201502

12V 5W

81340LAMP ASSY, VANITY

main81340-0F010×2iZGR2#201309-201612

main81340-30100-E1×2iZGR2#201106-201309

GREGE,TRIM4#

81340BBULB (FOR VANITY LAMP)

main90981-11062×2iZGR2#201106

12V 8W

81391DHOLDER, LAMP BULB

main81391-30010×2iZGR2#201106-201612

8202WIRING & CLAMP

→ Go to FIG 82-02

13 parts on this diagram · 2 diagrams in section
