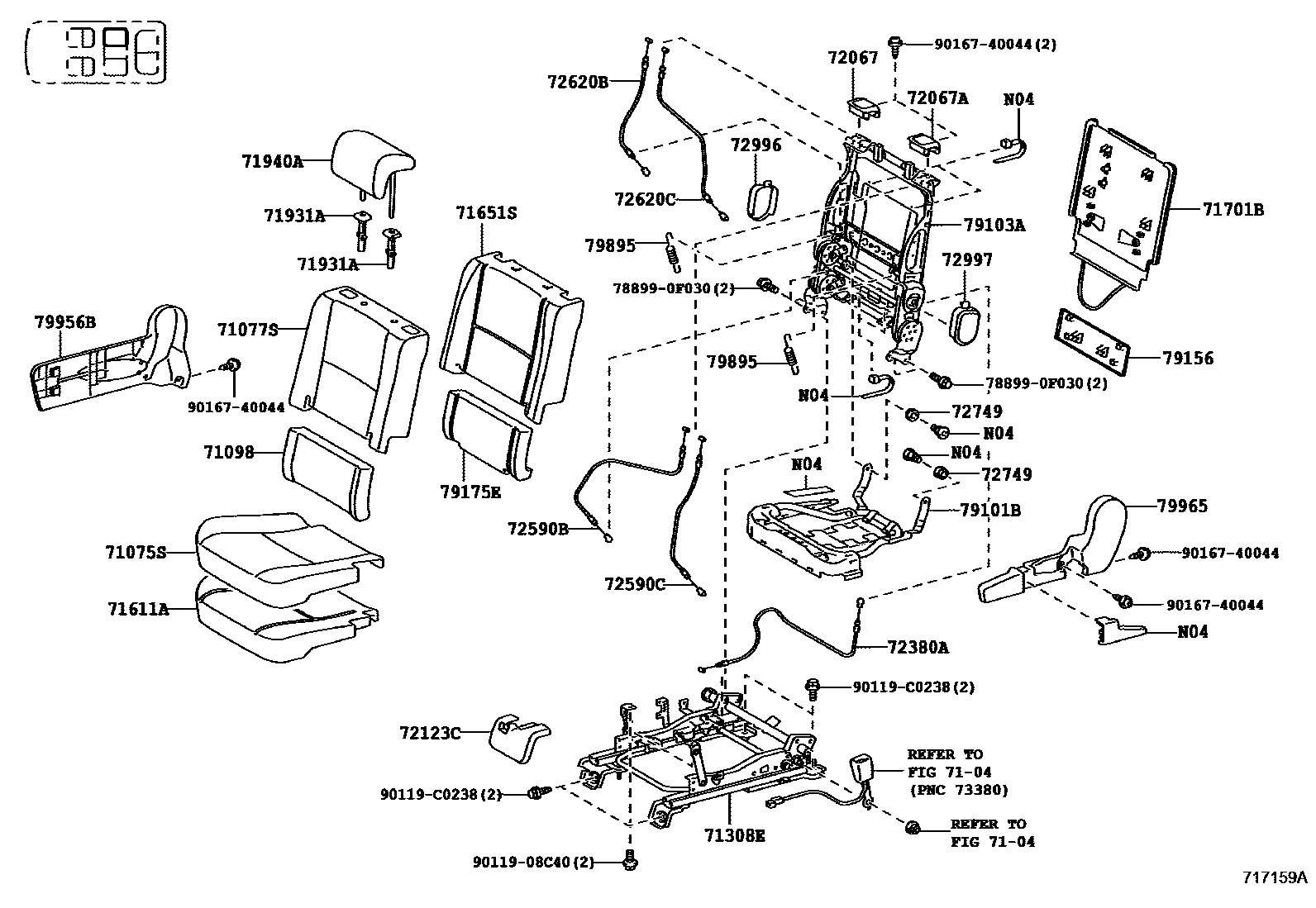

REAR SEAT & SEAT TRACK

0001 1REAR NO.1 SEAT(RH) 0002 1REAR NO.1 SEAT(LH) 0003 1REAR NO.1 SEAT(CENTER) 0004 1REAR NO.2 SEAT

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

71075SCOVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE)

main71075-0F090-E0iZGR2#..E,G201106-201204

GREGE,TRIM4#

main71075-0F091-E1iZGR2#..E,G201204-201612

GREGE,TRIM4#

main71075-0F100-E1iZGR21,22..CVFC..G; ZGR21,22..V201106-201612

GREGE,TRIM4#; SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4#

71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)

main71077-0F090-E0iZGR2#..E,G201106-201204

GREGE,TRIM4#

main71077-0F091-E0iZGR2#..E,G201204-201612

GREGE,TRIM4#

main71077-0F100-E1iZGR21,22..CVFC..G; ZGR21,22..V201106-201612

GREGE,TRIM4#; SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4#

71098COVER SUB-ASSY, REAR SEATBACK, LOWER RH

main71098-0F040-E0iZGR2#..E,G201106-201204

GREGE,TRIM4#

main71098-0F040-E1iZGR2#..E,G201204-201612

GREGE,TRIM4#

main71098-0F050-E1iZGR21,22..CVFC..G; ZGR21,22..V201106-201612

GREGE,TRIM4#; SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4#

71308ELEG SUB-ASSY, REAR SEAT, RH

main71308-0F020iZGR2#201106

71611APAD, REAR SEAT CUSHION, RH

main71611-0F060iZGR2#201106

71651SPAD, REAR SEATBACK, RH(FOR SEPARATE TYPE)

main71651-0F030iZGR2#201106

71701BBOARD SUB-ASSY, REAR SEATBACK, RH

main71701-0F060-E1iZGR2#201106-201612

GREGE,TRIM4#

71931ASUPPORT, REAR SEAT HEADREST

main71930-44020-E0×3iZGR2#201106-201612

W(LOCK),GREGE,TRIM4#

main71931-47010-E4×3iZGR2#201106-201612

W/O(LOCK),GREGE,TRIM4#

71940AHEADREST ASSY, REAR SEAT

main71940-0F040-E0×2iZGR2#..E,G201106-201411

GREGE,TRIM4#

main71940-0F041-E0×2iZGR2#..E,G201412-201612

GREGE,TRIM4#

main71940-0F050-E1×2iZGR21,22..CVFC..G; ZGR21,22..V201106-201412

GREGE,TRIM4#; SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4#

main71940-0F110-E0×2iZGR21..CVFC..G; ZGR21..V201412-201612

GREGE,TRIM4#; SEAT COVER MATERIAL-NATURAL LEATHER,GREGE,TRIM4#

72067LEVER SUB-ASSY, REAR BACK LOCK CONTROL, RH

main72067-0F090-E0iZGR2#201106-201612

GREGE,TRIM4#

72067ALEVER, REAR BACK LOCK CONTROL, CENTER

main72067-0F100-E0×3iZGR2#201106-201612

GREGE,TRIM4#

72123CCOVER, SEAT TRACK BRACKET, OUTER FRONT RH

main72123-0F070-E0iZGR2#201106-201612

GREGE,TRIM4#

72380ACABLE ASSY, SEAT ADJUSTER CONTROL, NO.2

main72380-0F020×2iZGR2#201106

FITTING(WHITE)

72590BCABLE ASSY, RECLINING REMOTE CONTROL

main72590-0F030×2iZGR2#201106

FITTING(YELLOW)

72590CCABLE ASSY, RECLINING REMOTE CONTROL

main72590-0F040×2iZGR2#201106

FITTING(BLUE)

72620BCABLE ASSY, REAR NO.1 SEAT LOCK

main72620-0F030×2iZGR2#201106

FITTING(RED)

72620CCABLE ASSY, REAR NO.1 SEAT LOCK

main72620-0F050×2iZGR2#201106

FITTING(GREEN)

72749SPACER, REAR SEAT RECLINING

main72749-48010×6iZGR2#201106

72996COVER, REAR SEATBACK, RH

main72996-0F020iZGR2#201411

main72996-0F020-E0iZGR2#201106-201411

GREGE,TRIM4#

72997COVER, REAR SEATBACK, LH

main72997-0F020iZGR2#201411

main72997-0F020-E0iZGR2#201106-201411

GREGE,TRIM4#

79101BFRAME SUB-ASSY, NO.1 SEAT CUSHION, RH

main79101-0F020iZGR2#201106

79103AFRAME SUB-ASSY, NO.1 SEATBACK, RH

main79103-0F020iZGR2#201106

79156BOARD, REAR NO.1 SEATBACK

main79156-0F020×2iZGR2#201106

79175EPAD, NO.1 SEATBACK, RH

main79175-0F020iZGR2#201106

79895SPRING, REAR NO.1 SEATBACK

main79895-0F020×4iZGR2#201106

79956BCOVER, REAR SEAT LEG SIDE, RH

main79956-0F060-E0iZGR2#201106-201612

GREGE,TRIM4#

79965COVER, REAR SEAT LEG SIDE, NO.2

main79965-0F060-E0iZGR2#201106-201612

GREGE,TRIM4#

788990F030BOLT, FRONT SEAT

main78899-0F030

9011908C40

main90119-08C40

90119C0238

main90119-C0238

9016740044

main90167-40044

32 parts on this diagram · 4 diagrams in section
