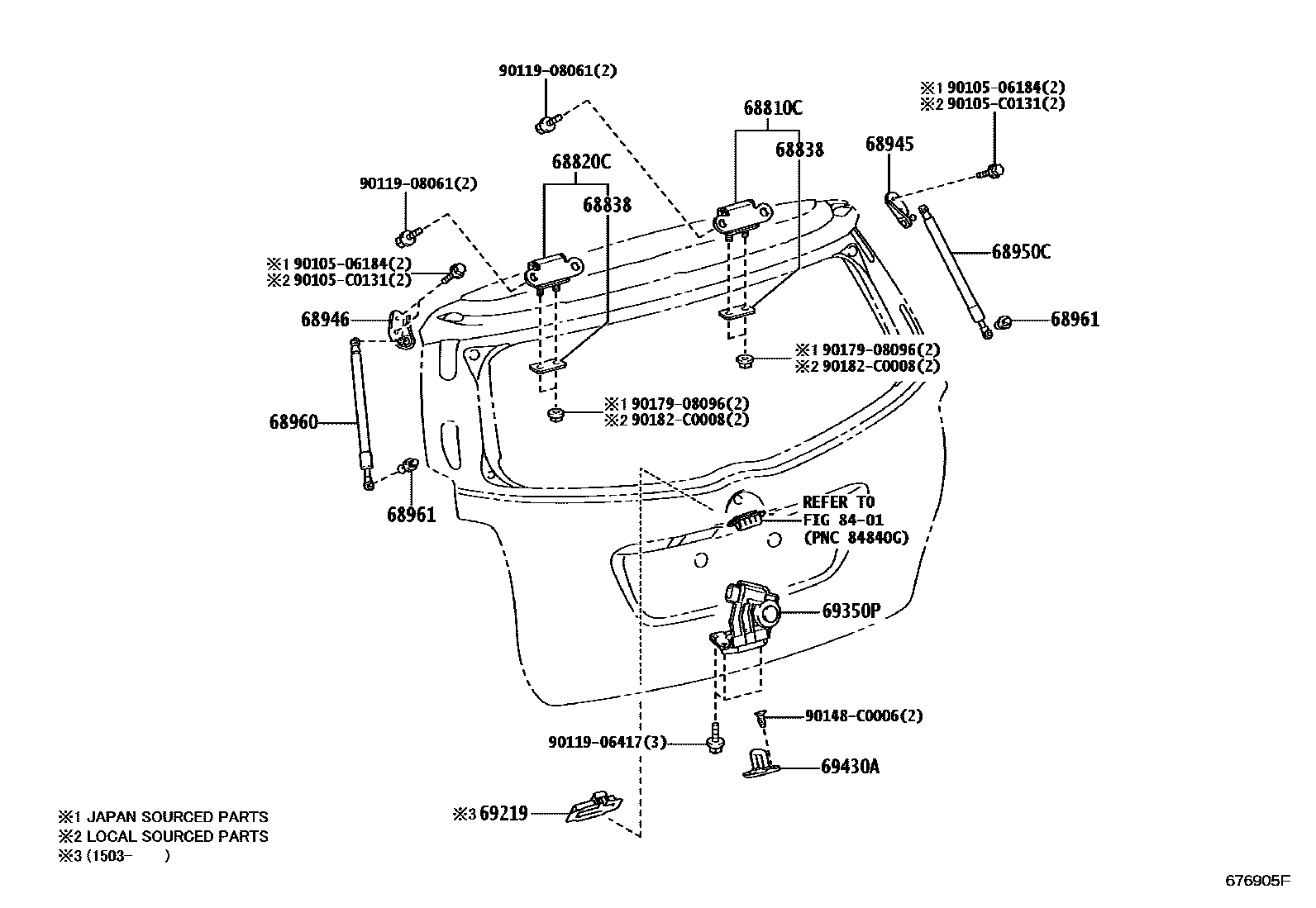

BACK DOOR LOCK & HANDLE

68810CHINGE ASSY, BACK DOOR, RH

main68810-0F010iZGR2#201106-201512

PAD T=1.0

main68810-0F011iZGR2#201601-201612

PAD T=1.0

main68810-0F020iZGR2#201106-201512

PAD T=1.6

main68810-0F021iZGR2#201601-201612

PAD T=1.6

main68810-0F030iZGR2#201106-201512

PAD T=2.0

main68810-0F031iZGR2#201601-201612

PAD T=2.0

68820CHINGE ASSY, BACK DOOR, LH

main68810-0F010iZGR2#201106-201512

PAD T=1.0

main68810-0F011iZGR2#201601

PAD T=1.0

main68810-0F020iZGR2#201106-201512

PAD T=1.6

main68810-0F021iZGR2#201601

PAD T=1.6

main68810-0F030iZGR2#201106-201512

PAD T=2.0

main68810-0F031iZGR2#201601

PAD T=2.0

68838PAD, BACK DOOR HINGE, NO.1

main68838-32010×2iZGR2#201106

T=2.0

main68838-52030×2iZGR2#201106

T=1.0

main68838-52060×2iZGR2#201106

T=1.6

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-0F030iZGR2#201106

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68946-0F030iZGR2#201106

68950CSTAY ASSY, BACK DOOR, RH

main68950-0F040iZGR2#201106

68960STAY ASSY, BACK DOOR, LH

main68960-0F040iZGR2#201106

68961BOLT, BACK DOOR STAY

main68961-0F010×2iZGR2#201106

69219SEAL, BACK DOOR OUTSIDE HANDLE

main69219-0D010iZGR2#201503

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-0E050iZGR2#201106-201512

main69350-0E051iZGR2#201601-201612

69430ASTRIKER ASSY, BACK DOOR LOWER LOCK

main69430-0D040iZGR2#201106

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010506184

main90105-06184

90105C0131

main90105-C0131

9011906417

main90119-06417

9011908061

main90119-08061

90148C0006

main90148-C0006

9017908096

main90179-08096

90182C0008

main90182-C0008

19 parts on this diagram · 1 diagram in section
