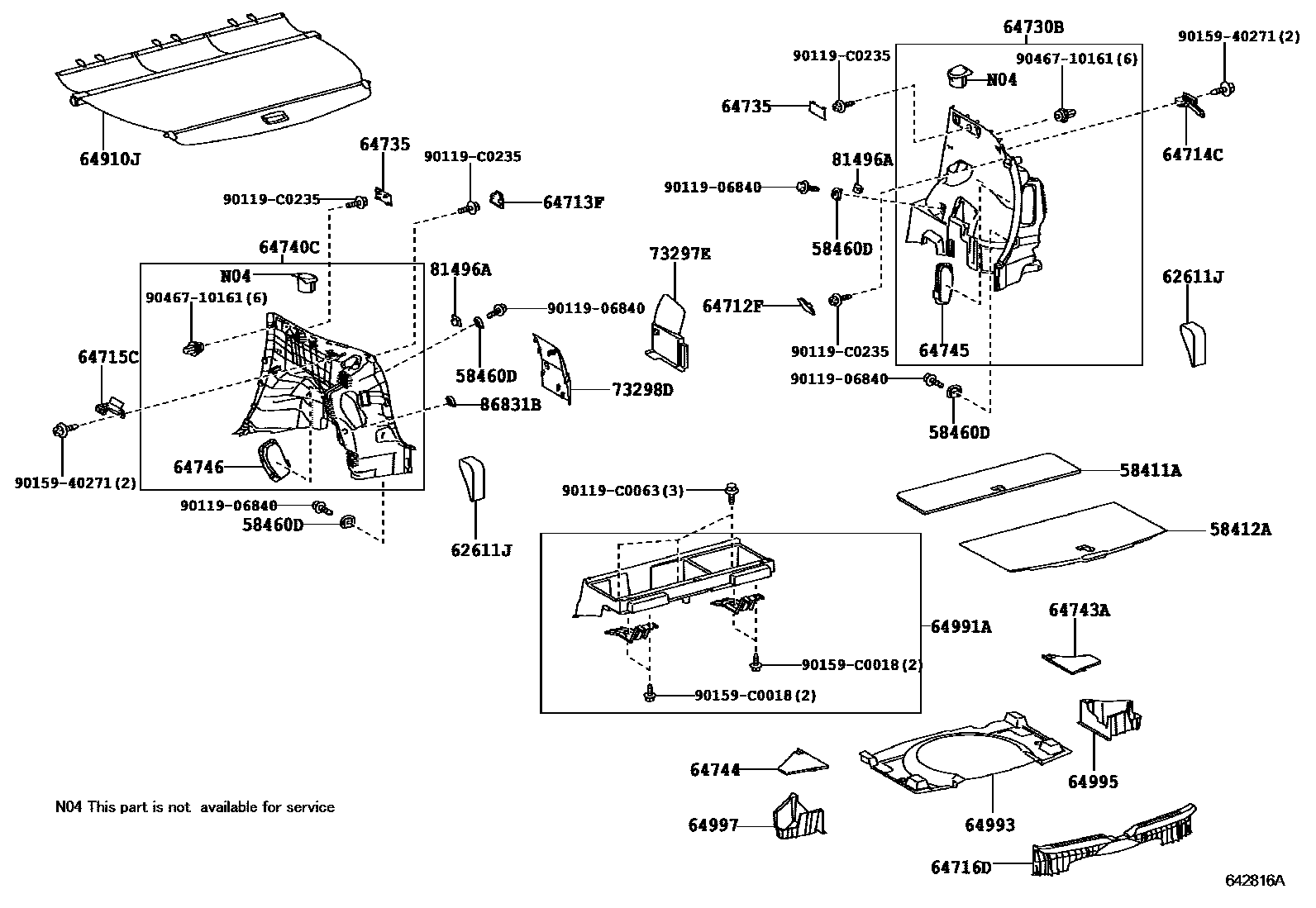

DECK BOARD & DECK TRIM COVER

0001 1 0002 1 0003 1

58411ABOARD, DECK, NO.1

main58411-0F020-E0iZGR20,21..05S201106-201612

GREGE,TRIM4#

58412ABOARD, DECK, NO.2

main58412-0F030-E0iZGR20,21..05S201106-201204

GREGE,TRIM4#

main58412-0F040-E0iZGR20,21..05S201204-201612

GREGE,TRIM4#

58460DSTRIKER ASSY, LUGGAGE HOLD BELT

main58460-0F010×4iZGR2#201106

62611JPAD, QUARTER WHEEL HOUSE

main62611-0F030×2iZGR20,22;ZGR21..CVFC;ZGR21..6F..G201106

64712FCOVER, DECK SIDE TRIM, FRONT RH

main64712-0F040-E0iZGR20,22;ZGR21..CVFC;ZGR21..6F..G201106-201612

ASH BROWN,TRIM4#

64713FCOVER, DECK SIDE TRIM, FRONT LH

main64713-0F040-E0iZGR20,22;ZGR21..CVFC;ZGR21..6F..G201106-201612

ASH BROWN,TRIM4#

64714CCOVER, DECK SIDE TRIM, RH

main64714-0F030-E0iZGR20,21..05S201106-201612

ASH BROWN,TRIM4#

64715CCOVER, DECK SIDE TRIM, LH

main64715-0F030-E0iZGR20,21..05S201106-201612

ASH BROWN,TRIM4#

64716DCOVER, DECK TRIM, REAR

main64716-0F030-E0iZGR2#201106-201512

ASH BROWN,TRIM4#

main64716-0F031-E0iZGR2#201601-201612

ASH BROWN,TRIM4#

64730BPANEL ASSY, DECK TRIM SIDE, RH

main64730-0F030-E0iZGR20,22;ZGR21..CVFC;ZGR21..6F..G201106-201612

ASH BROWN,TRIM4#

64735COVER, DECK TRIM SIDE SERVICE HOLE

main64735-0F020-E0×2iZGR20,22;ZGR21..CVFC;ZGR21..6F..G201106-201612

ASH BROWN,TRIM4#

64740CPANEL ASSY, DECK TRIM SIDE, LH

main64740-0F030-E0iZGR20,22;ZGR21..CVFC;ZGR21..6F..G201106-201204

ASH BROWN,TRIM4#

main64740-0F040-E0iZGR2#201204-201612

ASH BROWN,TRIM4#

64743ABOARD, DECK TRIM SIDE, LOWER RH

main64743-0F020-E1iZGR20,21..05S201106-201612

ASH BROWN,TRIM4#

64744BOARD, DECK TRIM SIDE, LOWER LH

main64744-0F020-E1iZGR20,21..05S201106-201612

ASH BROWN,TRIM4#

64745COVER, REAR COMBINATION LAMP SERVICE, RH

main64745-0F030-E0iZGR20,22;ZGR21..CVFC;ZGR21..6F..G201106-201612

ASH BROWN,TRIM4#

64746COVER, REAR COMBINATION LAMP SERVICE, LH

main64746-0F030-E0iZGR20,22;ZGR21..CVFC;ZGR21..6F..G201106-201612

ASH BROWN,TRIM4#

64910JCOVER ASSY, TONNEAU

main64910-0F030-E0iZGR2#..G,V201106-201204

ASH BROWN,TRIM4#

main64910-0F060-E0iZGR21,22..CVFC..G; ZGR21,22..V201204-201512

ASH BROWN,TRIM4#; SEAT COVER MATERIAL-NATURAL LEATHER,ASH BROWN,TRIM4#

main64910-0F061-E0iZGR21..CVFC..G; ZGR21..V201601-201612

ASH BROWN,TRIM4#; SEAT COVER MATERIAL-NATURAL LEATHER,ASH BROWN,TRIM4#

64991ABOX, DECK FLOOR, FR

main64991-0F041-E0iZGR20,21..05S201106-201612

TRIM4#

64993BOX, DECK FLOOR, REAR

main64993-0F050iZGR20,21..05S201106-201604

main64993-0F051iZGR2#..05S201605

64995BOX, DECK FLOOR, RH

main64995-0F030iZGR21,22..07S201106-201604

main64995-0F031iZGR21..07S201605-201612

main64995-0F041-E0iZGR20,21..05S201106-201612

TRIM4#

64997BOX, DECK FLOOR, LH

main64997-0F030iZGR21,22..07S201106-201604

main64997-0F031iZGR21..07S201605-201612

main64997-0F040-E0iZGR20,21..05S201106-201612

ASH BROWN,TRIM4#

73297ECOVER, DECK TRIM SIDE BELT HOLE, RH

main73297-0F050-E0iZGR21,22..07S201106-201612

ASH BROWN,TRIM4#

main73297-0F060-E0iZGR20,21..05S201106-201612

ASH BROWN,TRIM4#

73298DCOVER,DECK TRIM SIDE BELT HOLE, LH

main73298-0F050-E0iZGR21,22..07S201106-201612

ASH BROWN,TRIM4#

main73298-0F060-E0iZGR20,21..05S201106-201612

ASH BROWN,TRIM4#

81496AGUIDE, REAR COMBINATION LAMP

main81496-0F010×2iZGR20,22;ZGR21..CVFC;ZGR21..6F..G201106

86831BCOVER, ACCESSORY SOCKET

main86831-0F010-E0iZGR2#201204-201612

ASH BROWN,TRIM4#

9011906840

main90119-06840

90119C0063

main90119-C0063

90119C0235

main90119-C0235

9015940271

main90159-40271

90159C0018

main90159-C0018

9046710161

main90467-10161

31 parts on this diagram · 3 diagrams in section
