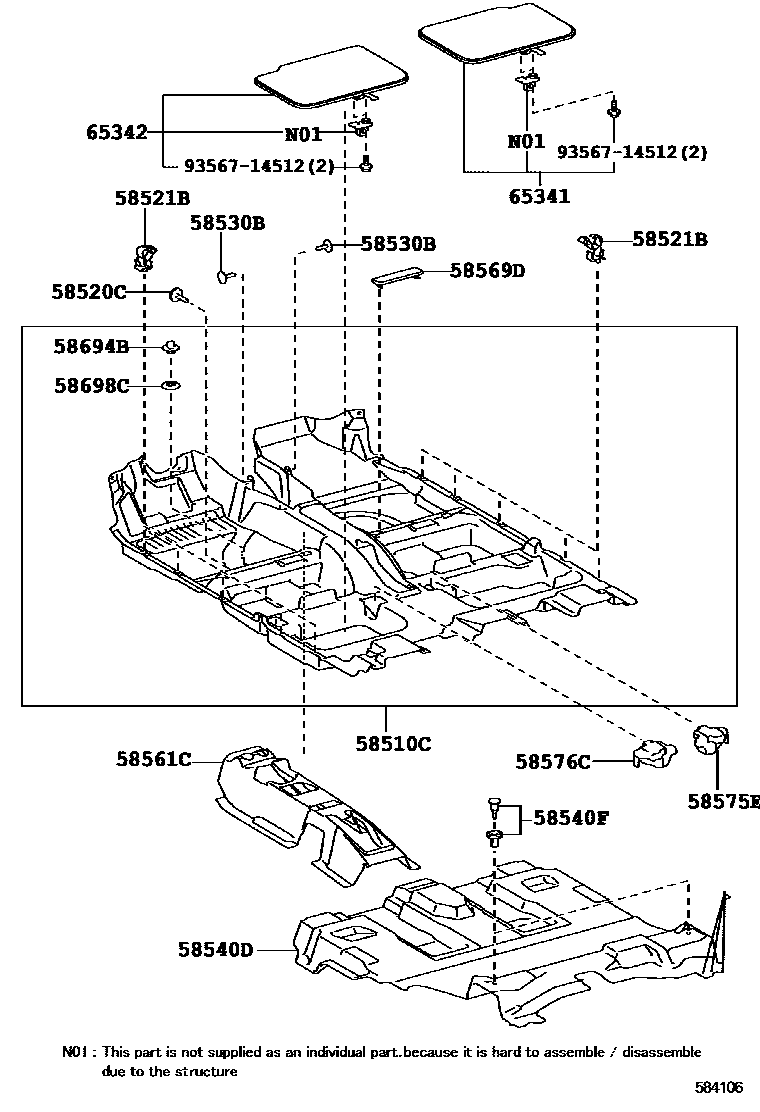

MAT & CARPET

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-0F070-E0iZGR20,21..05S201106-201309

GREGE,TRIM4#

main58510-0F080-E0iZGR21,22..07S201106-201309

GREGE,TRIM4#

main58510-0F140-E0iZGR2#..05S201309-201612

GREGE,TRIM4#

main58510-0F170-E0iZGR21..07S201309-201612

GREGE,TRIM4#

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-07049-B7iZGR2#201106-201612

DK.GRAY

58521BHOOK, FLOOR CARPET

main58521-0F020iZGR2#201106

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-05164-B2iZGR2#201106-201612

DK.GRAY

58540DCARPET ASSY, FLOOR, REAR

main58581-0F060-E0iZGR20,21..05S201106-201612

GREGE,TRIM4#

main58581-0F070-E0iZGR21,22..07S201106-201612

GREGE,TRIM4#

58540FCLIP(FOR REAR FLOOR CARPET)

main90467-10210iZGR2#201106

58561CSILENCER, FRONT FLOOR, NO.1

main58561-0F030iZGR2#201106

58569DCOVER, FRONT FLOOR CAUTION PLATE

main58569-0F010iZGR2#201106-201309

main58569-0F020-E0iZGR2#201309-201612

GREGE,TRIM4#

58575EPAD, FRONT FLOOR, REAR NO.1

main58575-0F020-E0iZGR2#201106-201612

GREGE,TRIM4#

58576CPAD, FRONT FLOOR, REAR NO.2

main58576-0F020-E0iZGR2#201106-201612

GREGE,TRIM4#

58694BPLATE, MAT SET, UPPER

main58694-76010iZGR2#201106

58698CPLATE, MAT SET, LOWER

main58698-76010iZGR2#201106

65341BOARD, FLOOR, NO.1

main65341-0F020-E0iZGR2#201106-201512

GREGE,TRIM4#

main65341-0F021-E0iZGR2#201601-201612

GREGE,TRIM4#

65342BOARD, FLOOR, NO.2

main65342-0F020-E0iZGR2#201106-201512

GREGE,TRIM4#

main65342-0F021-E0iZGR2#201601-201612

GREGE,TRIM4#

9356714512

main93567-14512

15 parts on this diagram · 1 diagram in section
