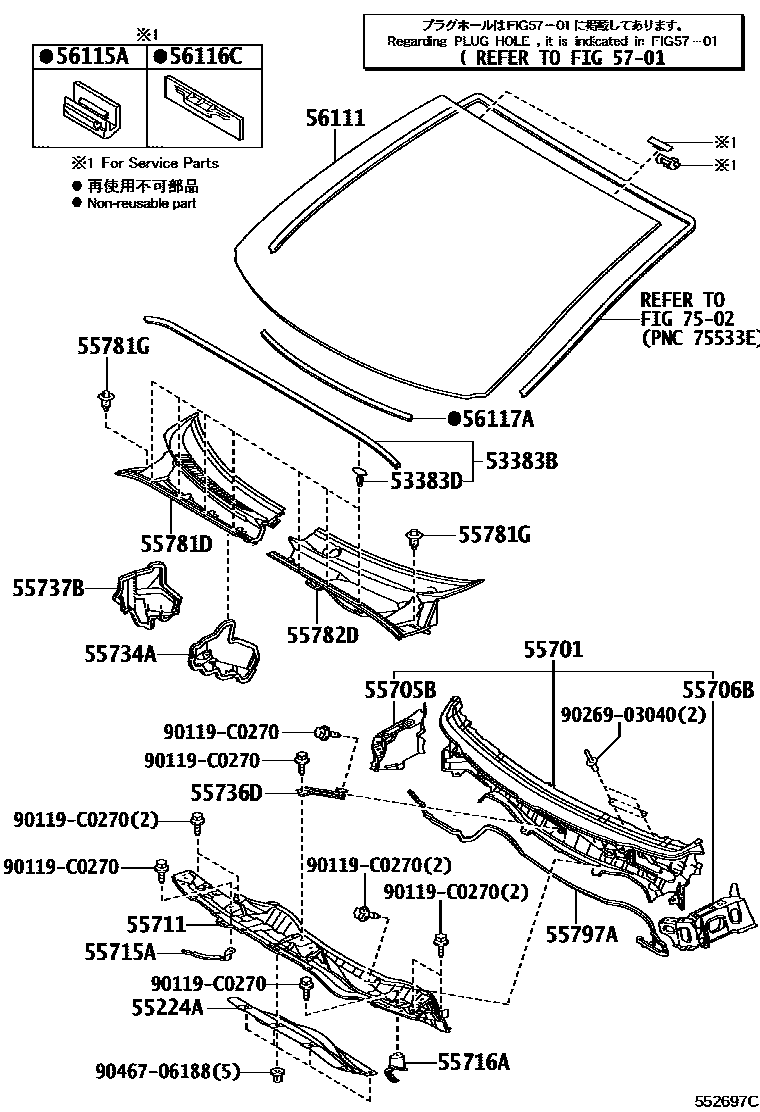

COWL PANEL & WINDSHIELD GLASS

53383BSEAL, HOOD TO COWL TOP

main53383-0F030iZGR2#201106

53383DCLIP(FOR HOOD TO COWL TOP SEAL)

main67867-0F010×7iZGR2#201106

55224AINSULATOR, DASH PANEL, OUTER NO.2

main55224-0F030iZGR2#201106

55701PANEL SUB-ASSY, COWL

main55700-0F050iZGR2#201106

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-0F020iZGR2#201106

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-0F020iZGR2#201106

55711PANEL, COWL TOP, OUTER

main55701-0F030iZGR2#201106

55715ABRACE, COWL TOP TO APRON, RH

main53715-0F020iZGR2#201106

55716ABRACE, COWL TOP TO APRON, LH

main53716-0F020iZGR2#201106

55734APLATE, WATER GUARD, RH

main55734-0F030iZGR2#201106

55736DREINFORCEMENT, COWL BODY MOUNTING, LH

main55736-0F020iZGR2#201106

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-0F030iZGR2#201106

55781DLOUVER, COWL TOP VENTILATOR, RH

main55708-0F080iZGR2#201106

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-07076-C0×2iZGR2#201106-201109

BLACK

main90467-C0013-C0×2iZGR2#201110-201612

BLACK

55782DLOUVER, COWL TOP VENTILATOR, LH

main55709-0F070iZGR2#201106

55797ASEAL, COWL WATER EXTRACT

main55797-0F030iZGR2#201106

56111GLASS, WINDSHIELD

main56101-0F900iZGR20,21..E201106

*LAM,T=4.56,GREEN

main56101-0F901iZGR2#..G201106-201206

*HSEAL,T=4.56,GREEN

main56101-0F902iZGR21,22..V201106-201206

*HSEAL,T=4.56,GREEN

main56101-0F904iZGR21,22..V201206

*LAM,T=4.56,GREEN

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30120iZGR2#201106

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050×2iZGR2#201106

56117ADAM, WINDOW GLASS ADHESIVE

main56117-0F030iZGR2#201106

L=1063

5701HOLE PLUG

→ Go to FIG 57-01

7502FRONT MOULDING

→ Go to FIG 75-02

90119C0270

main90119-C0270

9026903040

main90269-03040

9046706188

main90467-06188

25 parts on this diagram · 1 diagram in section
