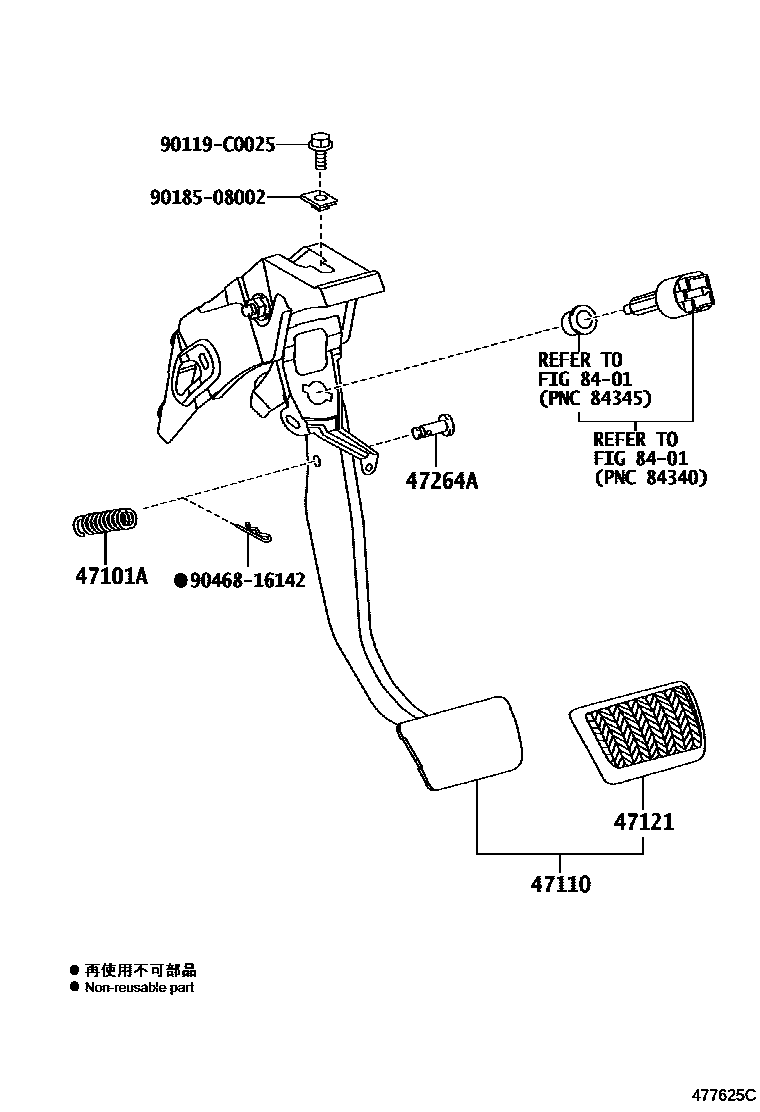

BRAKE PEDAL & BRACKET

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-13010201106

47110SUPPORT ASSY, BRAKE PEDAL

main47110-0F050201307

main47110-0F060201307

main47110-64050201106-201306

main47110-64060201106-201306

47121PAD, BRAKE PEDAL

main31321-42010201106

main47121-42010201106

47264APIN(FOR PUSH ROD)

main47148-33011201506

main90249-08256201106-201505

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

90119C0025

main90119-C0025

9018508002

main90185-08002

9046816142

main90468-16142

8 parts on this diagram · 1 diagram in section
