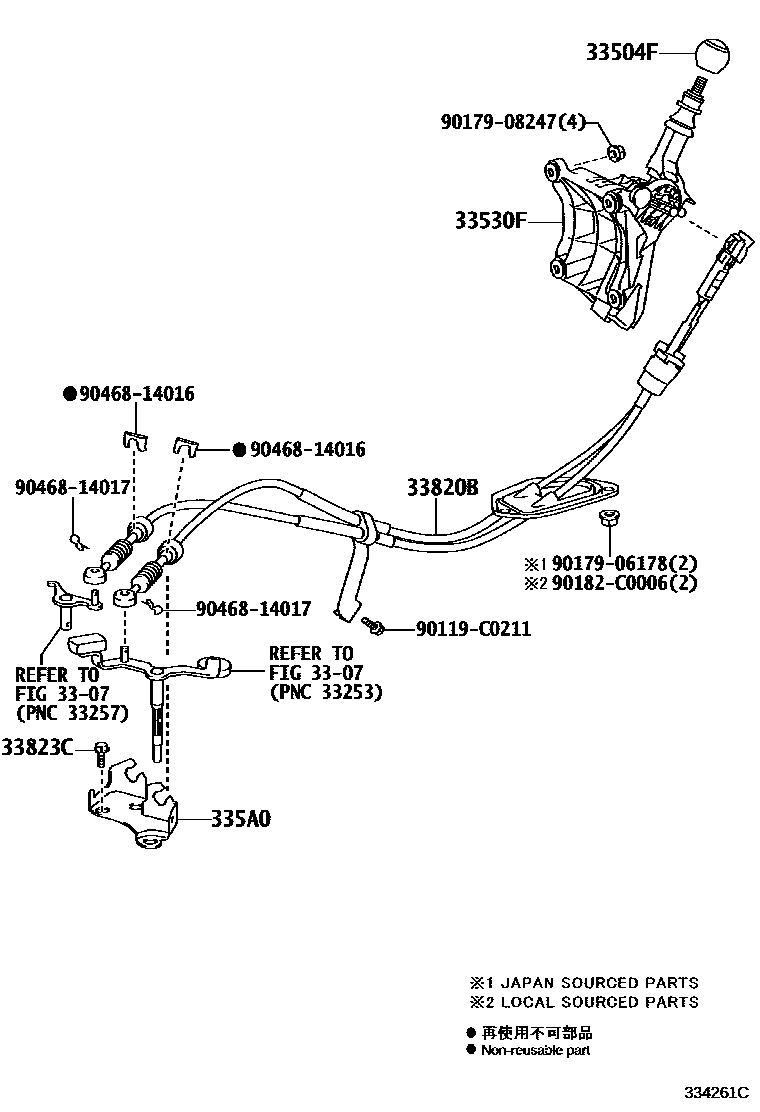

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1

3307GEAR SHIFT FORK & LEVER SHAFT (MTM)

→ Go to FIG 33-07

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-0F020-E0iZGR21,22..CVFC..(E,G)201106-201612

ASH BROWN,TRIM4#

main33504-0F030-E1iZGR21,22..V201106-201612

ASH BROWN&ORNAMENT SILVER,TRIM4#

main33504-12320-E0iZGR20,21..6F201106-201612

ASH BROWN,TRIM4#

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-12A10iZGR20,21..6F201106

335A0BRACKET ASSY, CONTROL CABLE

main335A0-20010iZGR20,21..6F201106

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-0F050iZGR20,21..6F201106

main33820-0F060iZGR21..CVFC201106

main33820-0F070iZGR22201106-201309

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-0F010iZGR21..CVFC201106

main33823-0F020iZGR22201106-201309

33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)

main90119-08C60×3iZGR20,21..6F201106

main90119-C0212×2iZGR21..CVFC201309

main91611-B0816×2iZGR21,22..CVFC201106-201309

90119C0211

main90119-C0211

9017906178

main90179-06178

9017908247

main90179-08247

90182C0006

main90182-C0006

9046814016

main90468-14016

9046814017

main90468-14017

13 parts on this diagram · 3 diagrams in section
