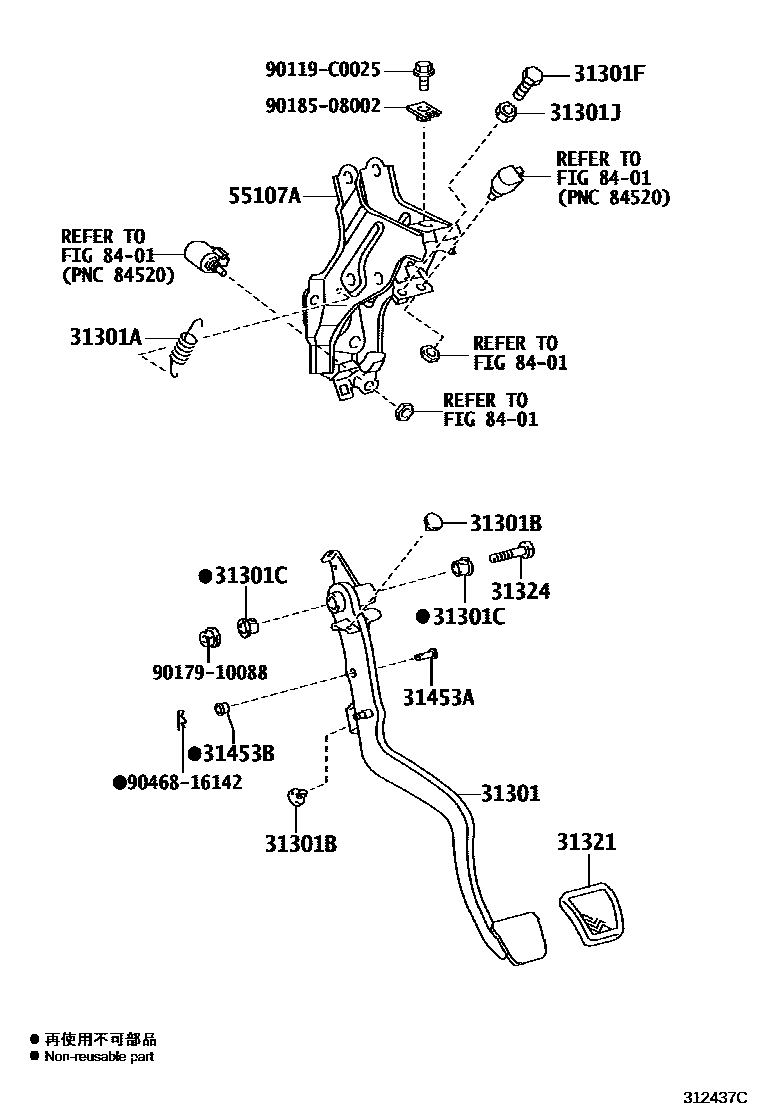

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1 0004 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-12511iZGR20201106

main31301-12620iZGR21..6F201106

31301ASPRING(FOR CLUTCH PEDAL)

main90507-14047iZGR20201106

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iZGR20,21..6F201106

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iZGR20,21..6F201106

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10055iZGR20,21..6F201106

31301JNUT(FOR CLUTCH PEDAL STOPPER)

main46441-12020iZGR20,21..6F201106-201612

31321PAD, CLUTCH PEDAL

main31321-42010iZGR20,21..6F201106

31324SHAFT, CLUTCH PEDAL

main90109-10167iZGR20,21..6F201106

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90249-08256iZGR20,21..6F201106

L=36.5

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08033iZGR20,21..6F201106

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-12281iZGR20201106

main55107-12301iZGR21..6F201106

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

90119C0025

main90119-C0025

9017910088

main90179-10088

9018508002

main90185-08002

9046816142

main90468-16142

16 parts on this diagram · 4 diagrams in section
