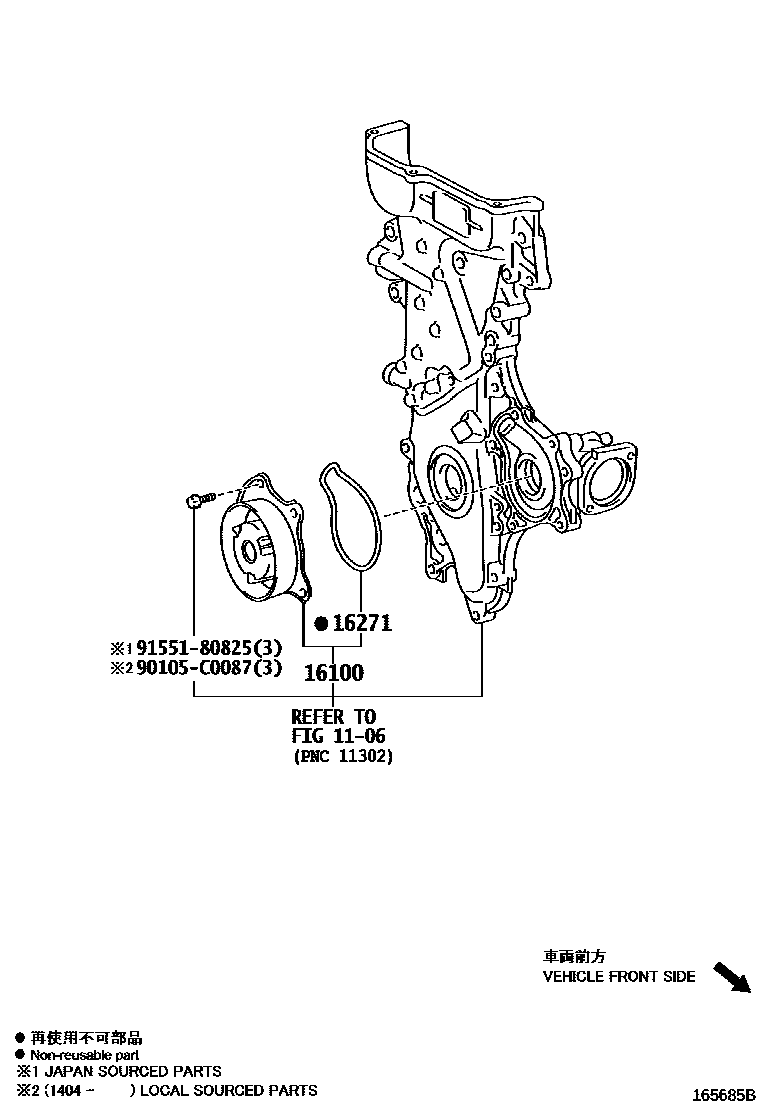

WATER PUMP

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

16100PUMP ASSY, ENGINE WATER

main16100-09550i1ZRFE,2ZRFE..ZGR20,21201106

(L)

main16100-39466i3ZRFE..ZGR22201106-201309

16271GASKET, WATER PUMP

main16271-37010i1ZRFE,2ZRFE,3ZRFE..ZGR2#201106

90105C0087

main90105-C0087

9155180825

main91551-80825

5 parts on this diagram · 1 diagram in section
