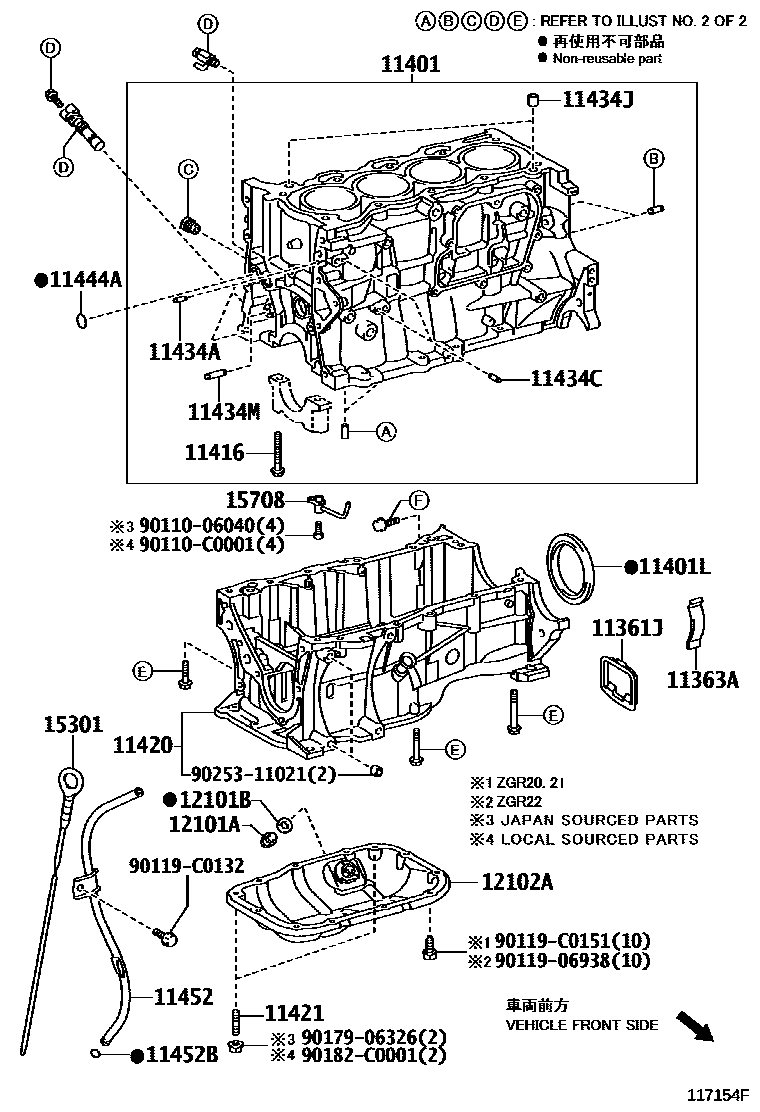

CYLINDER BLOCK
11361JCOVER, FLYWHEEL HOUSING UNDER
(L)
11363ACOVER, FLYWHEEL HOUSING SIDE
(L)
11401BLOCK SUB-ASSY, CYLINDER
(L)
(L)
(J)
(J)
11401LSEAL, ENGINE REAR OIL
(L),NOK
(L)
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
11420CRANKCASE ASSY, STIFFENING
(L)
(J)
11421BOLT, STUD(FOR OIL PAN)
11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)
L=12,OD=4.0
L=12,OD=4.0,(L)
11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)
L=12,OD=4.0
L=12,OD=4.0,(L)
11434JPIN, RING (FOR CYLINDER HEAD SET)
(L)
11434MPIN, STRAIGHT(FOR CHAIN TENSIONER)
(L)
11444ARING, O
(L)
(J)
11452GUIDE, OIL LEVEL GAGE
11452BRING, O(FOR OIL LEVEL GAGE GUIDE)
(L)
12101APLUG(FOR OIL PAN DRAIN)
12101BGASKET(FOR OIL PAN DRAIN PLUG)
(L)
12102APAN SUB-ASSY, OIL, NO.2
(L)
(J)
15301GAGE SUB-ASSY, OIL LEVEL
15708NOZZLE SUB-ASSY, OIL, NO.1
9011006040
main90110-06040
90110C0001
main90110-C0001
9011906938
main90119-06938
90119C0132
main90119-C0132
90119C0151
main90119-C0151
9017906326
main90179-06326
90182C0001
main90182-C0001
9025311021
main90253-11021
27 parts on this diagram · 2 diagrams in section
