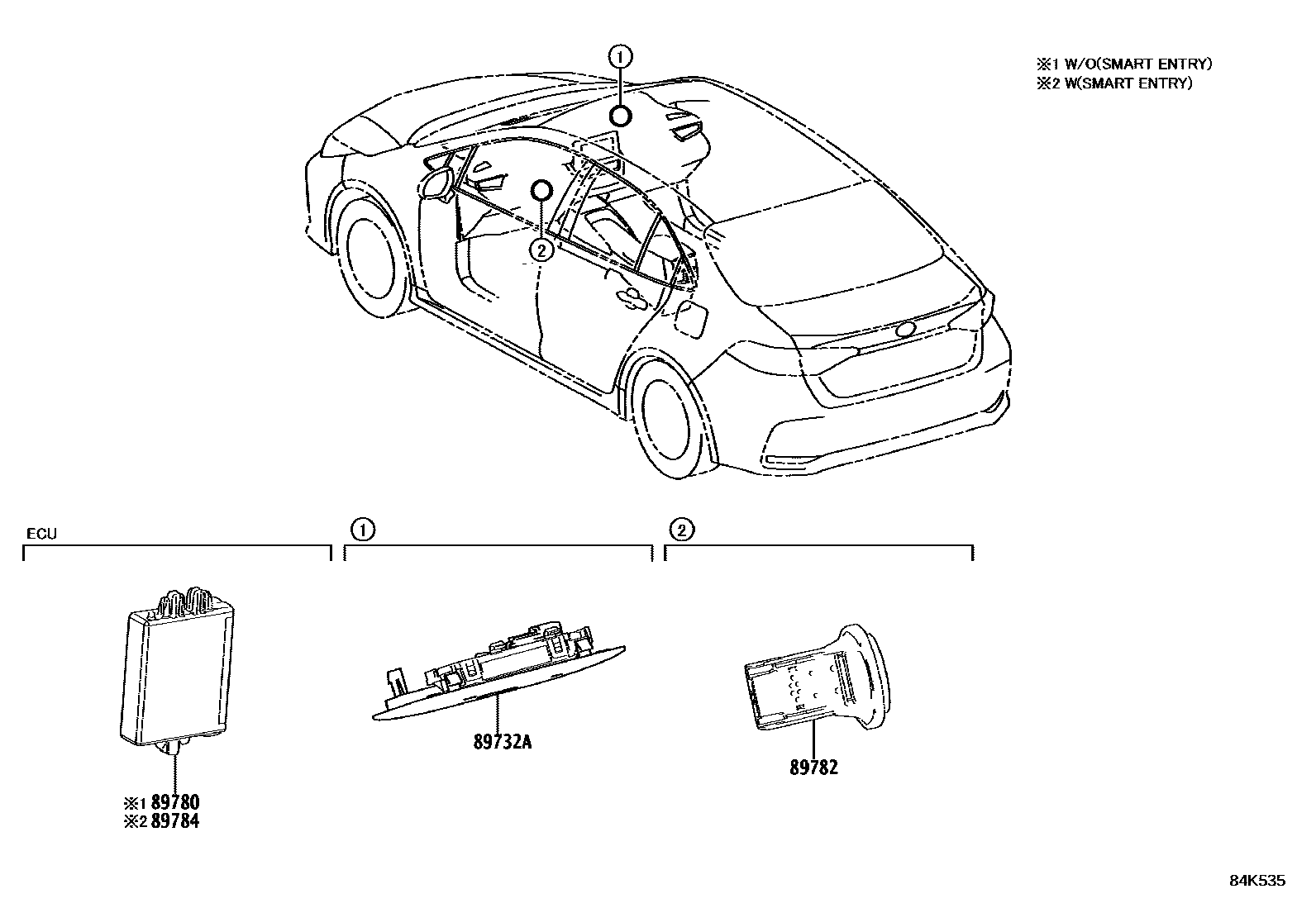

ANTI-THEFT DEVICE
89732ASENSOR, THEFT WARNING ULTRASONIC
main897E0-12010-A0supersedes 897E0-12020-C0iMZEA12,ZWE211..E..BZ; MZEA12..E..AGT; MZEA12..N..AGT; MZEA12..N..BZ; ZWE211..N..BZ202412
FROMAGE,TRIM0#,2#; FROMAGE,TRIM2#; FROMAGE,TRIM20; MOON ROOF-WITH,FROMAGE,TRIM2#; MOON ROOF-WITH,FROMAGE,TRIM20
main897E0-12020-A0supersedes 897E0-12010-A0iMZEA12..D..BZ;ZWE211..E..AGT;ZWE211..(D,N)..(AGT,BZ); MZEA12..N..AGT; MZEA12..N..BZ202309-202412
FROMAGE,TRIM2#; FROMAGE,TRIM20; MOON ROOF-WITHOUT,FROMAGE,TRIM20
MOON ROOF-WITH,BLACK,TRIM20
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM & SENSOR),BLACK,TRIM20; MOON ROOF-WITHOUT,BLACK,TRIM20
89780COMPUTER ASSY, TRANSPONDER KEY
GR SPORT; UP GRADE PACKAGE
GR SPORT; UP GRADE PACKAGE
89782COIL, TRANSPONDER KEY
89784COMPUTER, IMMOBILIZER CODE
UP GRADE PACKAGE
main89784-02200iMZEA12..CVT..N..AGT; MZEA12..N..AGT; ZWE211..AGT,BZ;MZEA12..E..AGT;MZEA12..(E,N)..BZ202107-202201
GR SPORT; UP GRADE PACKAGE
4 parts on this diagram · 1 diagram in section
