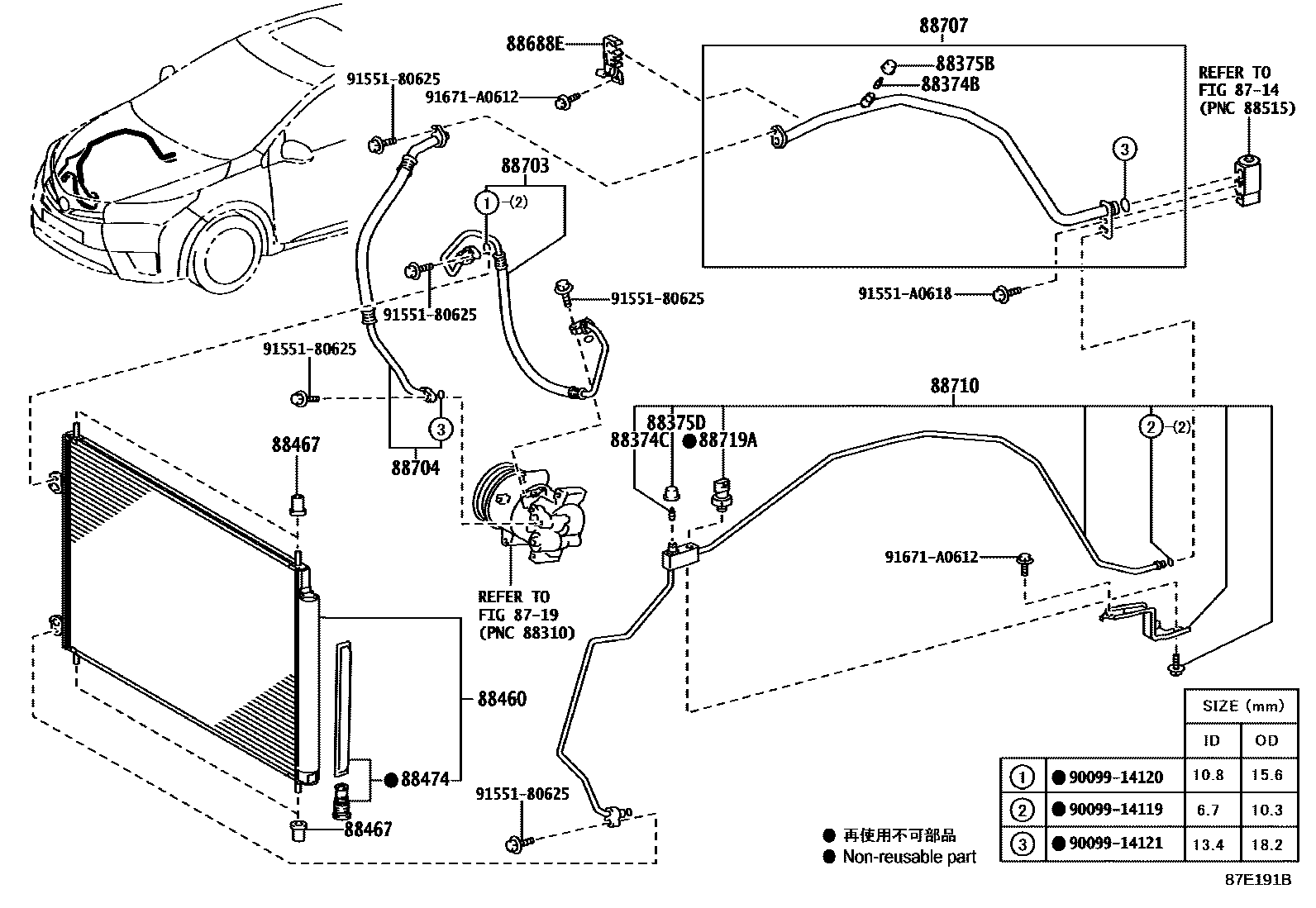

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88374BVALVE, SERVICE, NO.1

main88374-02010iZRE17#..BZ,LA201703-201908

88374CVALVE, SERVICE, NO.2

main88374-02010iZRE17#..BZ,LA201403-201703

88375BCAP, SERVICE VALVE, NO.1

main88375-02130iZRE17#..BZ,LA201703-201908

88375DCAP, SERVICE VALVE, NO.2

main88375-02120iZRE17#..BZ,LA201403-201703

88460CONDENSER ASSY, COOLER

main88460-02340iZRE17#..BZ,LA201403-201703

main88460-02350iZRE173..4FC201708

88467CUSHION, COOLER CONDENSER, NO.1

main16716-28010×4iZRE17#201403-201708

88474DRYER, COOLER

main88474-17010iZRE17#..BZ,LA201403-201703

88688EBRACKET, COOLER REFRIGERANT HOSE, NO.1

main88688-02A70iZRE17#..BZ,LA201403-201703

main88688-02A90iZRE173..6F201708-202002

88703HOSE SUB-ASSY, DISCHARGE

main88703-02A70iZRE17#..BZ,LA201403-201703

main88703-02A71iZRE17#..BZ,LA201703-201908

main88703-02A80iZRE173..VEN201501-201708

main88703-02A81iZRE173..4FC201708

88704HOSE SUB-ASSY, SUCTION

main88704-02A90iZRE172201703-201812

main88704-02A91iZRE172201901-201908

main88704-02B00iZRE173..BZ201703-201812

main88704-02B01iZRE173..BZ201901-201908

main88704-02B10iZRE173..6F201708-202002

88707PIPE SUB-ASSY, SUCTION

main88707-02320iZRE17#..BZ,LA201703-201908

main88707-02330iZRE173..VEN201501-201708

88710TUBE ASSY, AIR CONDITIONER

main88710-02A60iZRE17#..BZ,LA201403-201703

main88710-02A61iZRE17#..BZ,LA201703-201908

main88710-02A70iZRE173..VEN201501-201708

main88710-02A71iZRE173..4FC201708

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iZRE17#..BZ,LA201403-201703

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9155180625

main91551-80625

91551A0618

main91551-A0618

91671A0612

main91671-A0612

21 parts on this diagram · 4 diagrams in section
