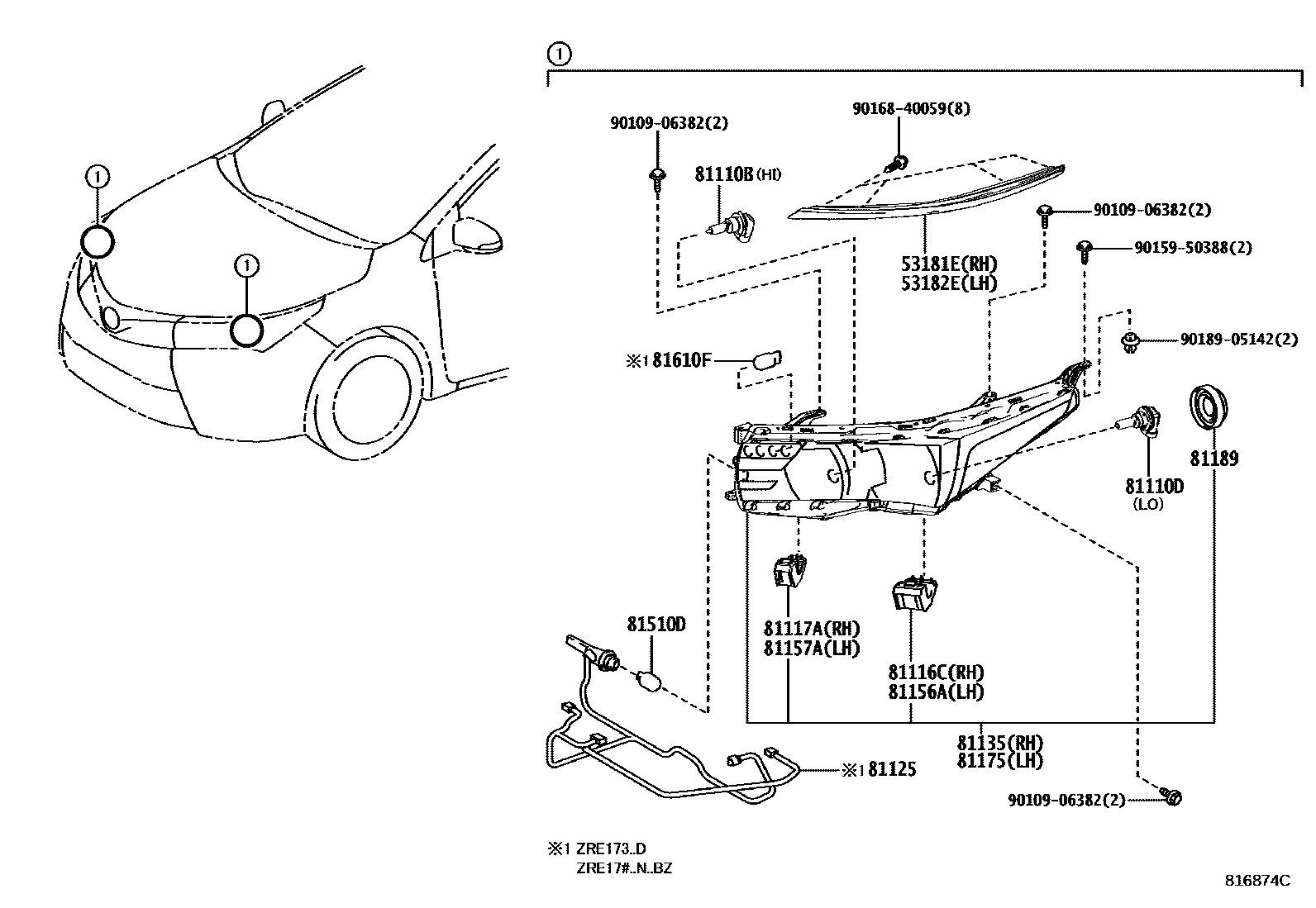

HEADLAMP

0001 1HALOGEN HEADLAMP 0003 1LED HEADLAMP 0005 1HALOGEN HEADLAMP 0007 1LED HEADLAMP

53181ECOVER, HEADLAMP, RH

main53181-02030iZRE17#..N..BZ; ZRE172..N..LA201403-201703

W/O(RADIO RECEIVER)

main53181-02070iZRE173..6F..N201703-202002

53182ECOVER, HEADLAMP, LH

main53182-02030iZRE17#..N..BZ; ZRE172..N..LA201403-201703

W/O(RADIO RECEIVER)

main53182-02070iZRE173..E;ZRE172..LA201403-201703

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13046×2iZRE17#..BZ,LA201403-201703

12V65W(SAE),60W(ECE)

main90981-13092×2iZRE173..6F..D201703-202002

12V 60W,HALOGEN

81110DBULB(FOR HEADLAMP, NO.2)

main90981-13075iZRE17#..N..BZ; ZRE172..N..LA201403-201703

12V 55W,HALOGEN; 12V 55W,HALOGEN,W/O(RADIO RECEIVER)

main90981-13081×2iZRE173..6F..D201703-202002

12V 55W,HALOGEN

81116CBRACKET, HEADLAMP, RH

main81116-02G10iZRE173..D201403-201708

main81116-02G30iZRE173..E;ZRE172..LA201403-201703

81117ABRACKET, HEADLAMP, RH

main81117-02G10iZRE17#..N..BZ; ZRE172..N..LA201403-201703

W/O(RADIO RECEIVER)

main81117-02G30iZRE173..N..VEN201403-201708

81125CORD, HEADLAMP

main81125-02G20×2iZRE17#..N..BZ201403-201703

81135UNIT ASSY, HEADLAMP, RH

main81130-02G20iZRE173..D;ZRE17#..N..BZ201403-201511

main81130-02G21iZRE173..D201511-201708

main81130-02G30iZRE172..LA201403-201609

main81130-02G31iZRE172..LA201609-201703

main81130-02G40iZRE173..E;ZRE173..N..VEN201403-201609

main81130-02G41iZRE173..E201609-201703

main81130-02Q80iZRE172..N..LA; ZRE173..N..BZ201703-201908

STANDARD GRADE PACKAGE

main81130-02Q90iZRE172..BZ;ZRE173..4FC..D201703

main81140-02R00iZRE173..E;ZRE172..LA201703-201908

main81140-02R10iZRE173..4FC..N201708

main81130-02G10iZRE172..N..LA201403-201511

W/O(RADIO RECEIVER)

main81130-02G11iZRE172..N..LA201511-201703

W/O(RADIO RECEIVER)

main81140-02R20iZRE173..N..BZ201703-201804

SPORT PACKAGE

81156ABRACKET, HEADLAMP, LH

main81116-02G10iZRE17#..N..BZ; ZRE172..N..LA201403-201703

W/O(RADIO RECEIVER)

main81116-02G30iZRE173..N..VEN201403-201708

81157ABRACKET, HEADLAMP, LH

main81117-02G10iZRE173..D201403-201708

main81117-02G30iZRE173..N..VEN201403-201708

81175UNIT ASSY, HEADLAMP, LH

main81070-02R00iZRE173..E;ZRE172..LA201703-201908

main81070-02R10iZRE173..6F..N201708-202002

main81170-02G20iZRE173..D;ZRE17#..N..BZ201403-201511

main81170-02G21iZRE173..D201511-201708

main81170-02G30iZRE172..LA201403-201609

main81170-02G31iZRE172..LA201609-201703

main81170-02G40iZRE173..E;ZRE173..N..VEN201403-201609

main81170-02G41iZRE173..N..VEN201609-201708

main81170-02Q80iZRE172..N..LA; ZRE173..N..BZ201703-201908

STANDARD GRADE PACKAGE

main81170-02Q90iZRE173..6F..D201703-202002

main81070-02R20iZRE173..N..BZ201703-201804

SPORT PACKAGE

main81170-02G10iZRE172..N..LA201403-201511

W/O(RADIO RECEIVER)

main81170-02G11iZRE172..N..LA201511-201703

W/O(RADIO RECEIVER)

81189COVER, HEADLAMP

main90075-65006×2iZRE17#..N..BZ; ZRE172..N..LA; ZRE173..E;ZRE172..LA201403-201703

W/O(RADIO RECEIVER)

81510DBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15021×2iZRE173..D201403-201708

12V 21W,AMBER

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050×2iZRE17#..N..BZ201403-201703

12V 5W

9010906382

main90109-06382

9015950388

main90159-50388

9016840059

main90168-40059

9018905142

main90189-05142

18 parts on this diagram · 4 diagrams in section
