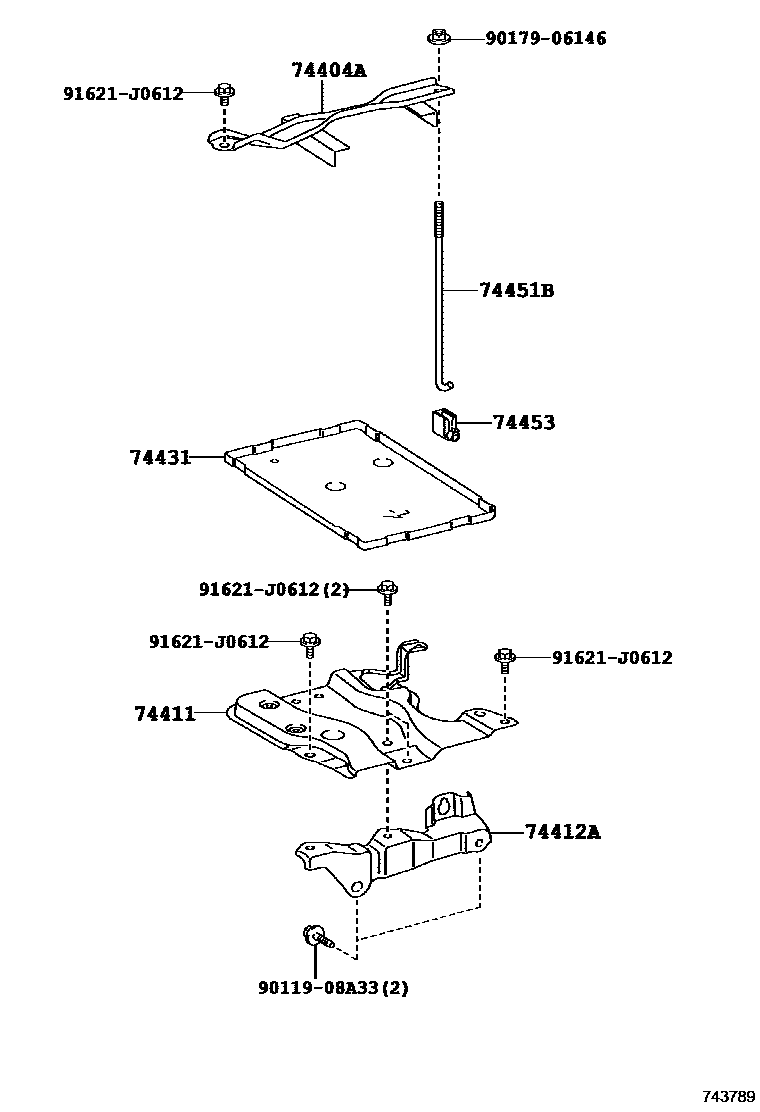

BATTERY CARRIER

74404ACLAMP SUB-ASSY, BATTERY

main74404-02470iZRE17#..BZ,LA201403-201908

main74404-02480iZRE173..VEN201501-202002

74411CARRIER, BATTERY

main74401-02110iZRE173..VEN201403-202002

74412ACARRIER, BATTERY, NO.2

main74410-02230iZRE17#..BZ,LA201403-202002

74431TRAY, BATTERY

main74431-02051iZRE17#..BZ,LA201403-201908

main74431-12030iZRE173..VEN201501-202002

74451BBOLT, BATTERY CLAMP

main74451-02090iZRE17#..BZ,LA201403-201908

main74451-02100iZRE173..6F201501-202002

74453SUPPORT, BATTERY CARRIER

main74454-28020iZRE17#..BZ,LA201403-202002

9011908A33

main90119-08A33

9017906146

main90179-06146

91621J0612

main91621-J0612

9 parts on this diagram · 1 diagram in section
