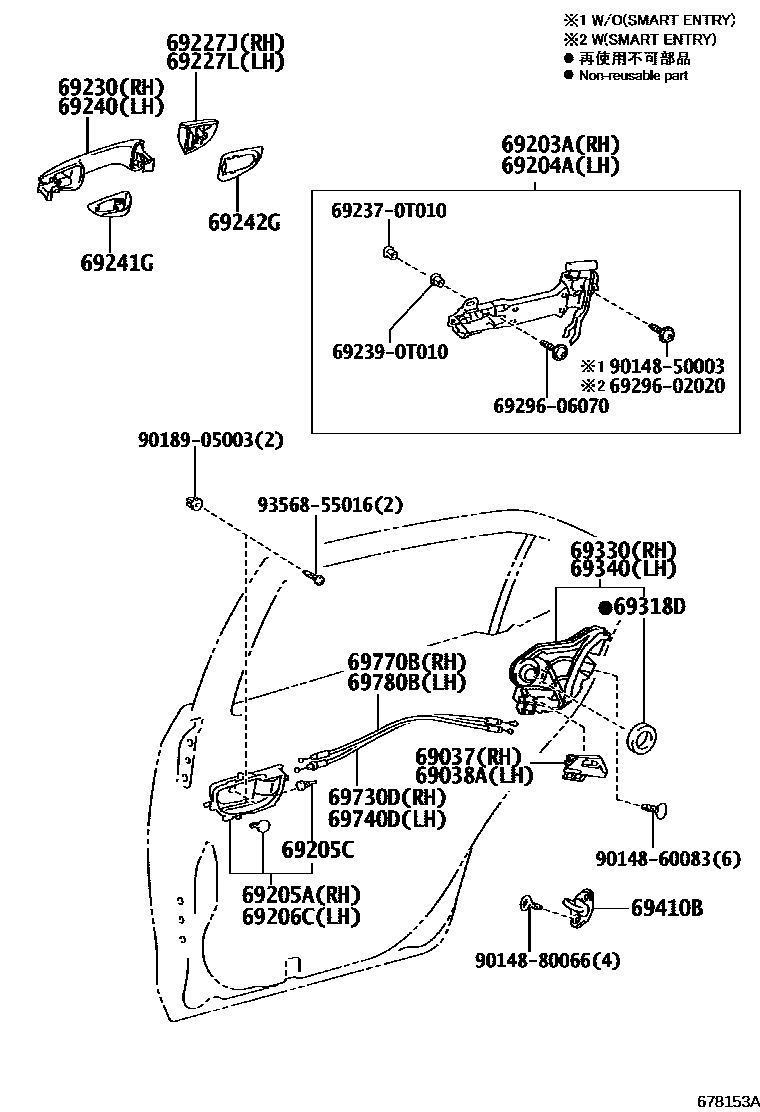

REAR DOOR LOCK & HANDLE
69037COVER SUB-ASSY, REAR DOOR LOCK, RH
69038ACOVER SUB-ASSY, REAR DOOR LOCK, LH
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
GRAY/GRAY,TRIM1#
BLACK,TRIM2#
IVORY,TRIM0#
FLAXEN,TRIM0#
GRAY,TRIM1#
BLACK,TRIM2#
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
GRAY/GRAY,TRIM1#
BLACK,TRIM2#
IVORY,TRIM0#
FLAXEN,TRIM0#
GRAY,TRIM1#
BLACK,TRIM2#
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
LESS COLOR
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER M.M.,1E7
GRAY ME.,1G3
BLACK MC.,209
RED M.M.,3R3
PHANTOM BROWN ME.,4W9
DARK BLUE MC.,8P8
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER M.M.,1E7
GRAY ME.,1G3
BLACK MC.,209
RED M.M.,3R3
PHANTOM BROWN ME.,4W9
69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH
LESS COLOR
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER M.M.,1E7
GRAY ME.,1G3
BLACK MC.,209
RED M.M.,3R3
PHANTOM BROWN ME.,4W9
DARK BLUE MC.,8P8
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER M.M.,1E7
GRAY ME.,1G3
BLACK MC.,209
RED M.M.,3R3
PHANTOM BROWN ME.,4W9
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER M.M.,1E7
GRAY ME.,1G3
BLACK MC.,209
RED M.M.,3R3
PHANTOM BROWN ME.,4W9
DARK BLUE MC.,8P8
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER M.M.,1E7
GRAY ME.,1G3
BLACK MC.,209
RED M.M.,3R3
PHANTOM BROWN ME.,4W9
PAINT REQ.
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
LESS COLOR
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER M.M.,1E7
GRAY ME.,1G3
BLACK MC.,209
RED M.M.,3R3
PHANTOM BROWN ME.,4W9
DARK BLUE MC.,8P8
SUPER WHITE 2,040
WHITE PEARL CS.,070
SILVER M.M.,1E7
GRAY ME.,1G3
BLACK MC.,209
RED M.M.,3R3
PHANTOM BROWN ME.,4W9
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
RH
LH
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
RH
LH
69318DSEAL, DOOR LOCK WIRING HARNESS
69330LOCK ASSY, REAR DOOR, RH
69340LOCK ASSY, REAR DOOR, LH
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH
692370T010RETAINER, DOOR OUTSIDE HANDLE
main69237-0T010
692390T010PIN, BACK DOOR OUTSIDE HANDLE
main69239-0T010
6929602020SCREW, DOOR INSIDE HANDLE
main69296-02020
6929606070SCREW, DOOR INSIDE HANDLE
main69296-06070
9014850003
main90148-50003
9014860083
main90148-60083
9014880066
main90148-80066
9018905003
main90189-05003
9356855016
main93568-55016
30 parts on this diagram · 1 diagram in section
