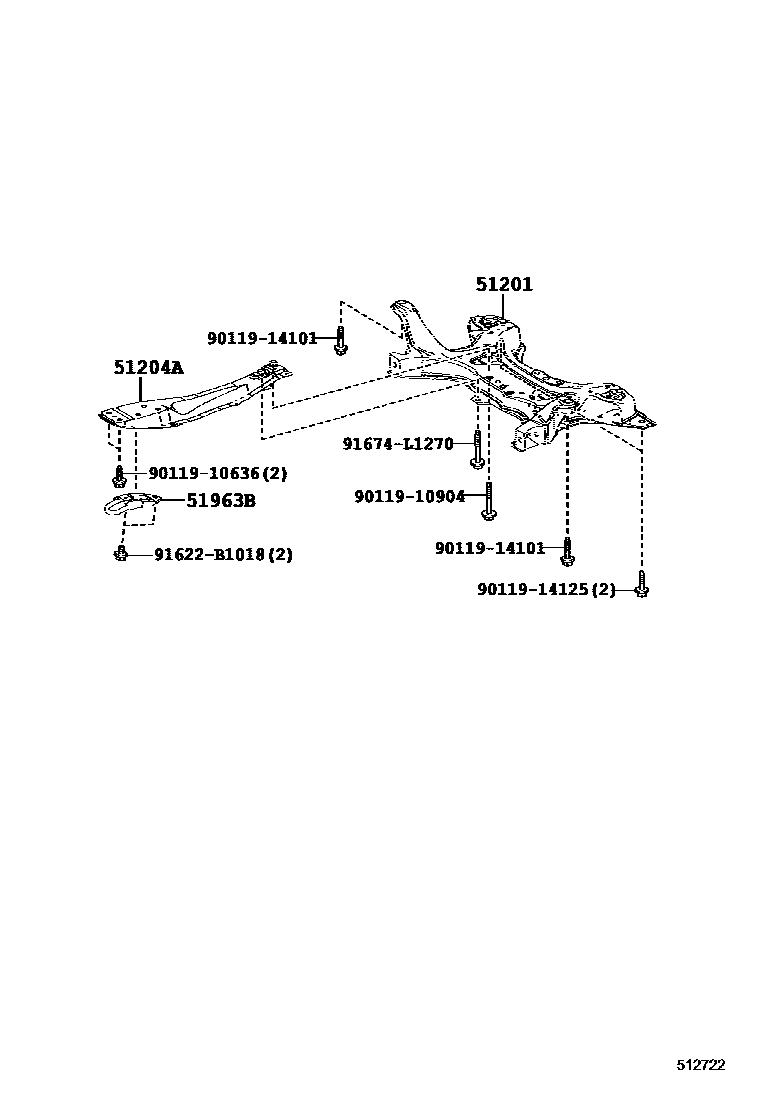

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1SUSPENSION CROSSMEMBER 0002 1ENGINE UNDER COVER 0004 1ENGINE UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-02180iZRE17#..BZ,LA201403-201703

51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER

main51204-02110iZRE173..6F201703-202002

51963BHOOK, TRANSPORT, FRONT RH

main51960-02120iZRE173..6F201708-202002

main51960-02130iZRE17#..BZ,LA201403-201703

9011910636

main90119-10636

9011910904

main90119-10904

9011914101

main90119-14101

9011914125

main90119-14125

91622B1018

main91622-B1018

91674L1270

main91674-L1270

9 parts on this diagram · 3 diagrams in section
