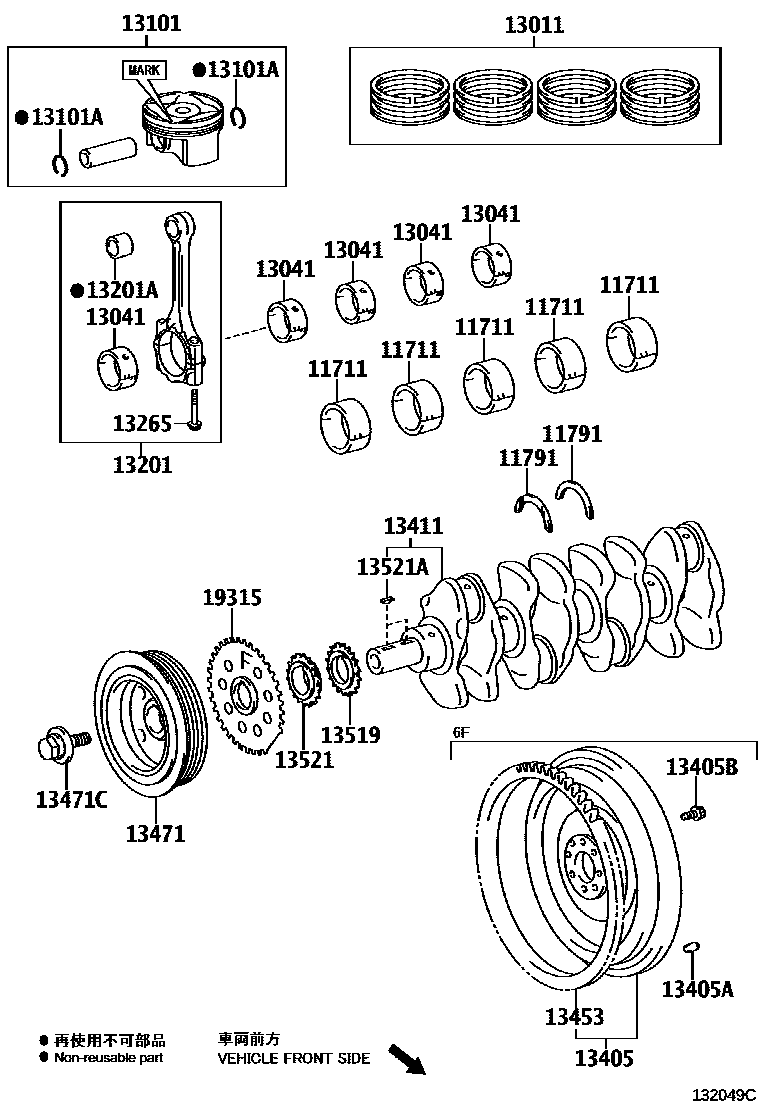

CRANKSHAFT & PISTON
11711BEARING, CRANKSHAFT
MARK1,(L),REFER R/M
MARK2,(L),REFER R/M
MARK3,(L),REFER R/M
MARK4,(L),REFER R/M
MARK1
MARK2,(J),REFER R/M
MARK3,(J),REFER R/M
MARK4
11791WASHER, CRANKSHAFT THRUST, UPPER
STD,(L)
STD,(J)
13011RING SET, PISTON
STD,MADE IN INDONESIA
STD
STD,MADE IN JAPAN
STD
STD
13041BEARING, CONNECTING ROD
MARK1,REFER REPAIR MANUAL
MARK2,REFER REPAIR MANUAL
MARK3,REFER REPAIR MANUAL
MARK1
MARK2,REFER REPAIR MANUAL
MARK3
13101PISTON SUB-ASSY, W/PIN
STD
STD
STD
STD
STD
STD,MARK 3V
STD,MARK 2V
STD,MARK 3P
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ROD SUB-ASSY, CONNECTING
MADE IN EUROPE
MADE IN JAPAN
13201ABUSH(FOR CONNECTING ROD SMALL END)
13265BOLT, CONNECTING ROD
13405FLYWHEEL SUB-ASSY
(L)
(J)
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=18,OD=8,(J)
L=18,OD=8,(L)
13405BBOLT, FLYWHEEL SETTING
(L)
13411CRANKSHAFT
(L)
(J)
13453GEAR, FLYWHEEL RING
(L)
MADE IN BRAZIL
(J)
13471PULLEY, CRANKSHAFT
(L)
(J)
(J)
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
(J)
(J)
(L)
(L)
13519GEAR, OIL PUMP DRIVE
(L)
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
(L)
(L)
(L)
(J)
(J)
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
19315PLATE, CRANK ANGLE SENSOR, NO.1
(L)
20 parts on this diagram · 1 diagram in section
