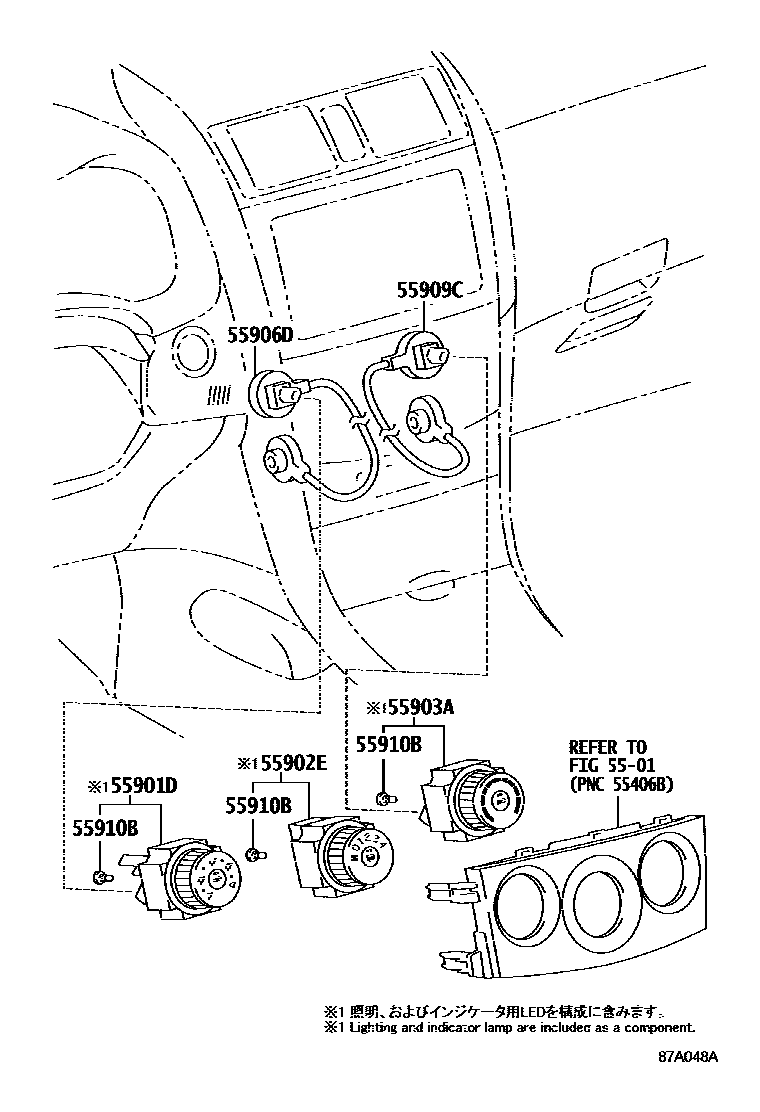

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT
5501INSTRUMENT PANEL & GLOVE COMPARTMENT
55901DCONTROL SUB-ASSY, HEATER, NO.1
main55901-12140iZZE141;ZZE142..(CE,XEI)..HTWC..(MXC,VEN); ZZE142..MTM..HTWC..BZ; ZZE142..XEGLI;ZZE142..MTM..HTWC..BZ; ZZE142..XEI..BZ200803
LATIN AMERICA SPEC&AIR CONDITIONER-MANUAL A/C; LATIN AMERICA SPEC&LOW GRADE PACKAGE&AIR CONDITIONER-MANUAL A/C; LOW GRADE PACKAGE&AIR CONDITIONER-MANUAL A/C
55902ECONTROL SUB-ASSY, HEATER, NO.2
main55902-12070iZZE141;ZZE142..(CE,XEI)..HTWC..(MXC,VEN); ZZE142..MTM..HTWC..BZ; ZZE142..XEGLI;ZZE142..MTM..HTWC..BZ; ZZE142..XEI..BZ200803
LATIN AMERICA SPEC&AIR CONDITIONER-MANUAL A/C; LATIN AMERICA SPEC&LOW GRADE PACKAGE&AIR CONDITIONER-MANUAL A/C; LOW GRADE PACKAGE&AIR CONDITIONER-MANUAL A/C
55903ACONTROL SUB-ASSY, HEATER, NO.3
55906DCABLE SUB-ASSY, HEATER CONTROL, NO.2
55909CCABLE SUB-ASSY, AIRMIX DAMPER CONTROL
main55909-0K010iZZE141;ZZE142..(CE,XEI)..(MXC,VEN); ZZE142..MTM..HTWC..BZ; ZZE142..XEGLI;ZZE142..MTM..HTWC..BZ; ZZE142..XEI..BZ200803
LATIN AMERICA SPEC; LATIN AMERICA SPEC&AIR CONDITIONER-MANUAL A/C; LATIN AMERICA SPEC&LOW GRADE PACKAGE; LATIN AMERICA SPEC&LOW GRADE PACKAGE&AIR CONDITIONER-MANUAL A/C; LOW GRADE PACKAGE; LOW GRADE PACKAGE&AIR CONDITIONER-MANUAL A/C
55910BBULB, HEATER CONTROL
7 parts on this diagram · 4 diagrams in section
