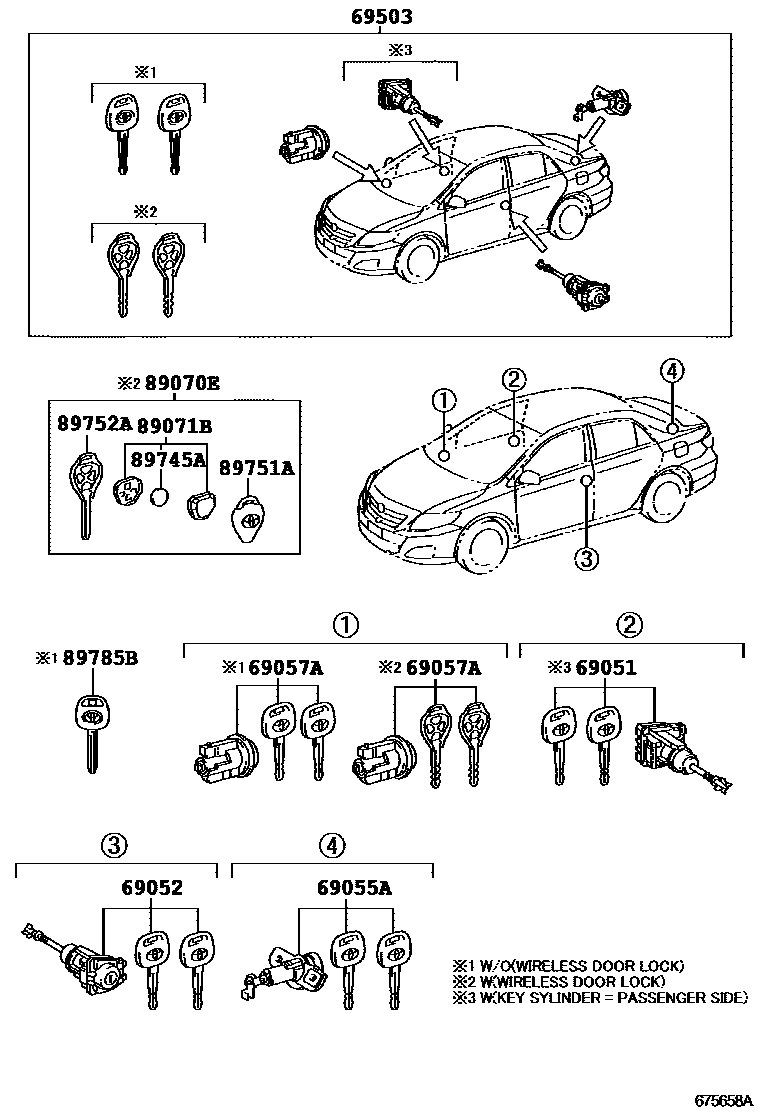

LOCK CYLINDER SET
69051CYLINDER & KEY SET, DOOR LOCK, RH
69052CYLINDER & KEY SET, DOOR LOCK, LH
69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK
69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK
LOW GRADE PACKAGE
69503CYLINDER SET, LOCK
LOW GRADE PACKAGE
89070ETRANSMITTER ASSY, DOOR CONTROL
CUT KEY
CUT KEY
BLANK KEY
BLANK KEY
89071BMODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
main89071-02090×2iZZE142..(XEGLI,XEI)..BZ; ZZE142..SEG..HTWC;ZZE142..(GLI,XEGLI,XEI)..(HTWC,HTWCF); ZZE142..XEGLI;ZZE142..MTM..HTWC..BZ200803
LOW GRADE PACKAGE; LOW GRADE PACKAGE&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)
89745ABATTERY, TRANSMITTER
89751ACOVER, TRANSMITTER HOUSING
LOW GRADE PACKAGE; LOW GRADE PACKAGE&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER)
89752ACASE, TRANSMITTER HOUSING
LOW GRADE PACKAGE
89785BTRANSMITTER, TRANSPONDER KEY MASTER
BLANK KEY; LOW GRADE PACKAGE,BLANK KEY
CUT KEY
11 parts on this diagram · 1 diagram in section
