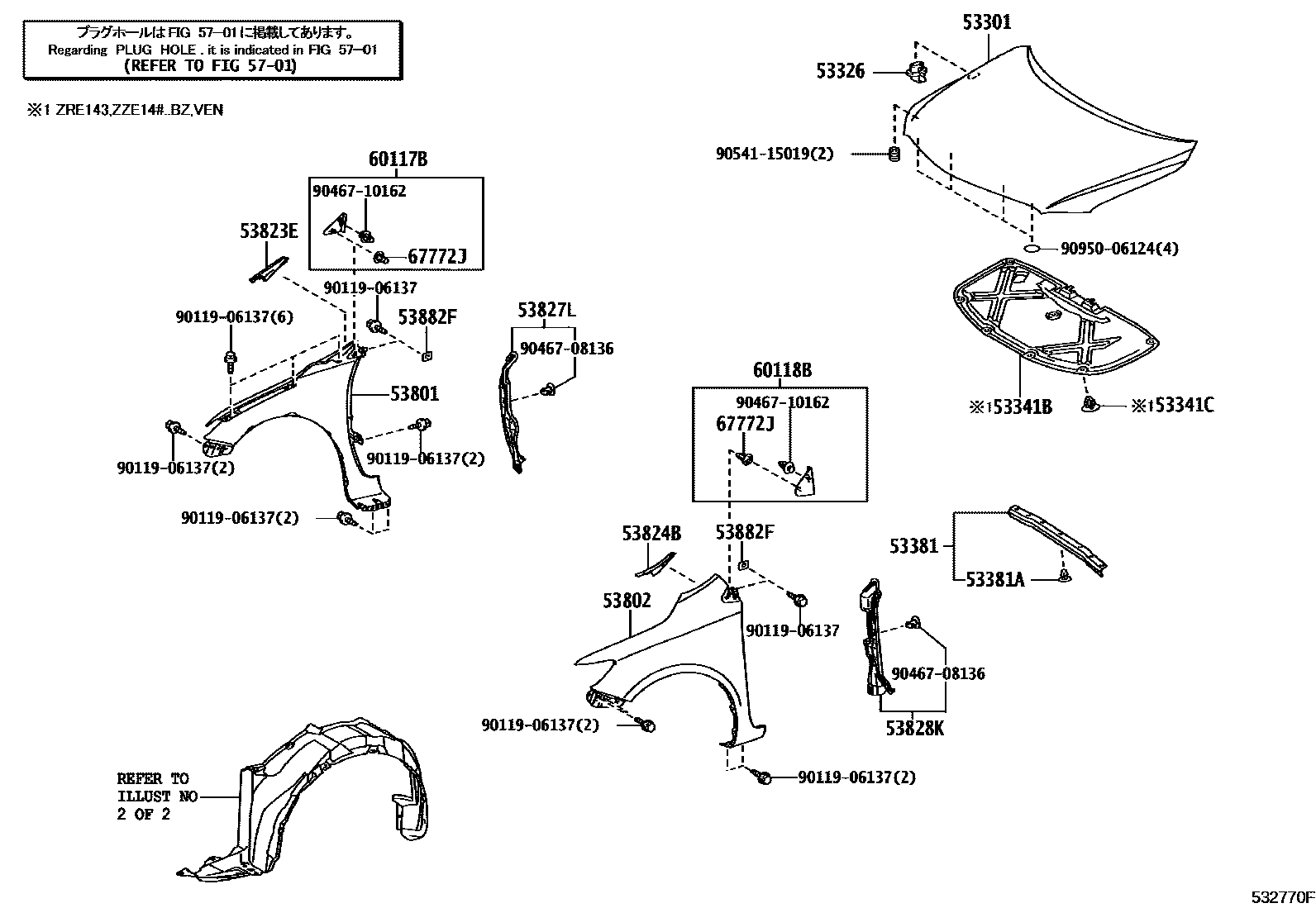

HOOD & FRONT FENDER

0001 1 0002 1

53301HOOD SUB-ASSY

main53301-02240iZRE143200803-201103

53326CLIP, HOOD PROTECTOR

main53326-52010iZRE143200803-201103

53341BINSULATOR, HOOD

main53341-02200iZZE142..SEG..HTWC;ZZE14#..(GLI,XEGLI,XEI,XLI)..(HTWC,HTWCF)200803

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050×7iZZE142..SEG..HTWCF200803-201003

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-02150iZZE142..SEG..HTWCF200803-201003

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011×7iZZE142..SEG..HTWC;ZZE14#..(CE,GLI,XEGLI,XEI,XLI)..(HTWC,HTWCF)200803

53801FENDER SUB-ASSY, FRONT RH

main53811-02260supersedes 53811-02270iZZE142..XEI..CNG200803-201105

W(SIDE TURN HOLE)

main53811-02270iZZE142..(GLI,SEG)..HTWC200803

W/O(SIDE TURN HOLE)

53802FENDER SUB-ASSY, FRONT LH

main53812-02260supersedes 53812-02270iZZE142..XEI..CNG;ZRE142..GLI,XEI,XLI201103

W(SIDE TURN HOLE)

main53812-02270iZZE142..SEG..HTWCF200803-201003

W/O(SIDE TURN HOLE)

53823EPROTECTOR, FRONT SIDE PANEL, NO.2 RH

main53823-02050iZZE142..SEG..HTWCF200803-201003

53824BPROTECTOR, FRONT SIDE PANEL, NO.2 LH

main53824-02050iZZE142..SEG..HTWCF200803-201003

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-02130iZZE142..SEG..HTWCF200803-201003

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-02130iZZE142..SEG..HTWCF200803-201003

53882FSEAL, FRONT FENDER

main53882-16030×2iZZE142..SEG..HTWCF200803-201003

5701HOLE PLUG

→ Go to FIG 57-01

60117BCOVER SUB-ASSY, FRONT PILLAR, UPR RH

main60117-02090iZZE142..SEG..HTWCF200803-201003

60118BCOVER SUB-ASSY, FRONT PILLAR, UPR LH

main60118-02090iZZE142..SEG..HTWCF200803-201003

67772JCAP, FRONT PILLAR COVER RETAINER

main67772-95J03×2iZZE142..SEG..HTWCF200803-201003

9011906137

main90119-06137

9046708136

main90467-08136

9046710162

main90467-10162

9054115019

main90541-15019

9095006124

main90950-06124

22 parts on this diagram · 2 diagrams in section
