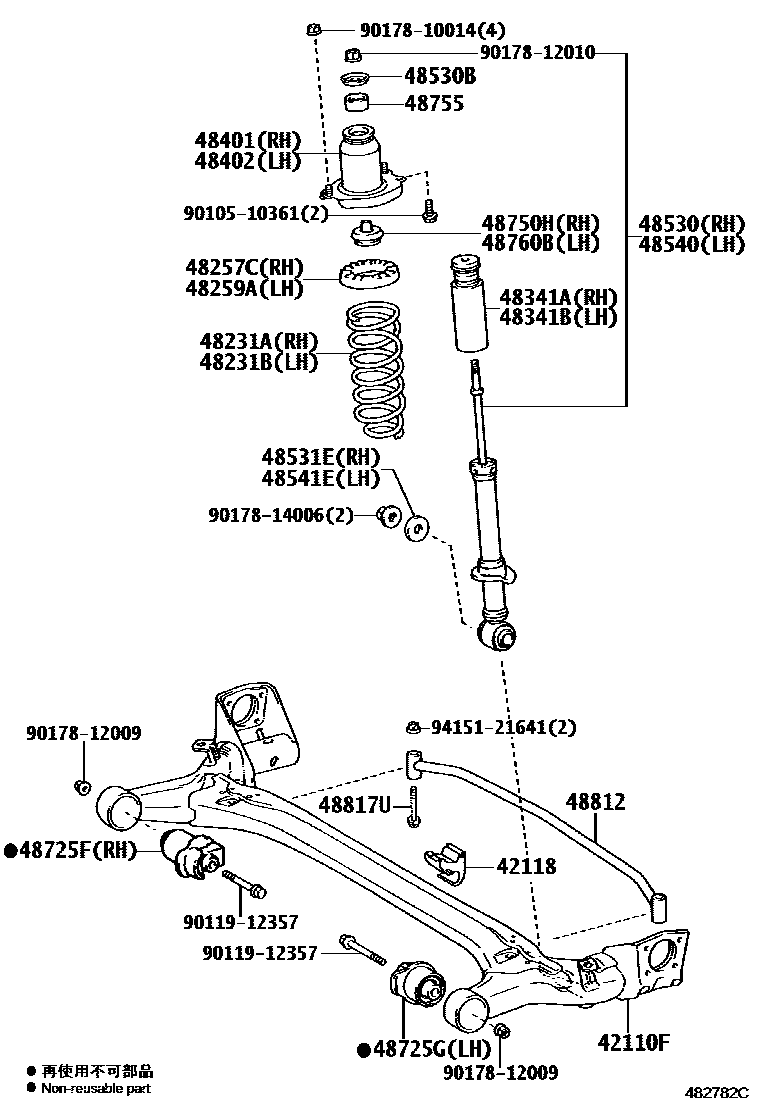

REAR SPRING & SHOCK ABSORBER

42110FBEAM ASSY, REAR AXLE

main42101-02220iZRE143200803-201103

42118DAMPER, REAR AXLE BEAM

main42118-02040iZZE142..SEG..HTWCF200803-201003

48231ASPRING, COIL, REAR RH

main48231-02840supersedes 48231-02850iZZE142..SEG..HTWCF200803-201003

main48231-02841iZRE142..GLI,XLI; ZRE142..MTM..XEI;ZRE142..ATM..(SEG,XEI)201208-201403

COLOMBIA SPEC

main48231-02850iZRE142..SEG,XEI201103-201207

main48231-02851iZRE142..SEG,XEI201208-201403

main48231-02860supersedes 48231-12D00iZZE142..HTWC..VEN200809

main48231-02B30iZRE143201003-201103

main48231-02B31iZRE143201208-201403

48231BSPRING, COIL, REAR LH

main48231-02840supersedes 48231-02850iZRE142..GLI,XLI; ZRE142..MTM..XEI;ZRE142..ATM..(SEG,XEI)201103-201207

COLOMBIA SPEC

main48231-02841iZRE142..GLI,XLI; ZRE142..MTM..XEI;ZRE142..ATM..(SEG,XEI)201208-201403

COLOMBIA SPEC

main48231-02850iZRE142..SEG,XEI201103-201207

main48231-02851iZRE142..SEG,XEI201208-201403

main48231-02860supersedes 48231-12D00iZZE142..HTWC..VEN200809

main48231-02B30iZRE143201003-201103

main48231-02B31iZRE143201208-201403

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-02050iZZE142..SEG..HTWC;ZZE14#..(CE,GLI,XEGLI,XEI,XLI)..(HTWC,HTWCF)200803

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-02050iZRE14#;ZZE142..CNG201103

48341ABUMPER, REAR SPRING, NO.1 RH

main48341-02050iZZE142..SEG..HTWCF200803-201003

48341BBUMPER, REAR SPRING, NO.1 LH

main48341-02050iZZE142..SEG..HTWCF200803-201003

48401BRACKET SUB-ASSY, REAR SPRING, FRONT RH

main48401-02080iZZE142..SEG..HTWCF200803-201003

48402BRACKET SUB-ASSY, REAR SPRING, FRONT LH

main48403-02070iZZE142..SEG..HTWCF200803-201003

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-09Q00supersedes 48530-09Q20iZZE14#..CE,XEGLI,XLI; ZZE142..HTWC..BZ200803

MARK 48530-02710; MARK 48530-02710,LATIN AMERICA SPEC

main48530-09Q10iZZE142..HTWC..VEN200809

MARK 48530-02730

main48530-09S30iZZE142..CNG200906-201105

MARK 48530-02850

main48530-09S70iZRE142..SEG,XEI201103-201403

MARK 48530-02870

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-03021×2iZRE14#;ZZE142..CNG201103

48531ERETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER RH)

main90201-14034iZRE14#;ZZE142..CNG201103

main90560-14028iZZE14#..BZ,MXC200803-200901

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-09Q00supersedes 48530-09Q20iZZE142..SEG..HTWCF200803-201003

MARK 48530-02710

main48530-09Q10iZZE142..HTWC..VEN200809

MARK 48530-02730

main48530-09S30iZZE142..CNG200906-201105

MARK 48530-02850

main48530-09S70iZRE142..SEG,XEI201103-201403

MARK 48530-02870

48541ERETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER LH)

main90201-14034iZZE142..VEN200809-200812

main90560-14028iZZE14#..BZ,MXC200803-200901

48725FBUSH, REAR AXLE CARRIER, RH

main48725-02310iZZE142..SEG..HTWCF200803-201003

48725GBUSH, REAR AXLE CARRIER, LH

main48725-02310iZRE14#;ZZE142..CNG201103

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48750-02020iZZE142..SEG..HTWCF200803-201003

48755SUPPORT, REAR SUSPENSION

main48755-02020×2iZZE142..SEG..HTWCF200803-201003

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48750-02020iZZE142..SEG..HTWC;ZZE14#..(CE,GLI,XEGLI,XEI,XLI)..(HTWC,HTWCF)200803

48812BAR, STABILIZER, REAR

main48812-02290iZRE14#;ZZE142..CNG201103

48817UBOLT(FOR REAR STABILIZER)

main90105-16085×2iZZE142..CNG200803-201105

9010510361

main90105-10361

9011912357

main90119-12357

9017810014

main90178-10014

9017812009

main90178-12009

9017812010

main90178-12010

9017814006

main90178-14006

9415121641

main94151-21641

29 parts on this diagram · 1 diagram in section
