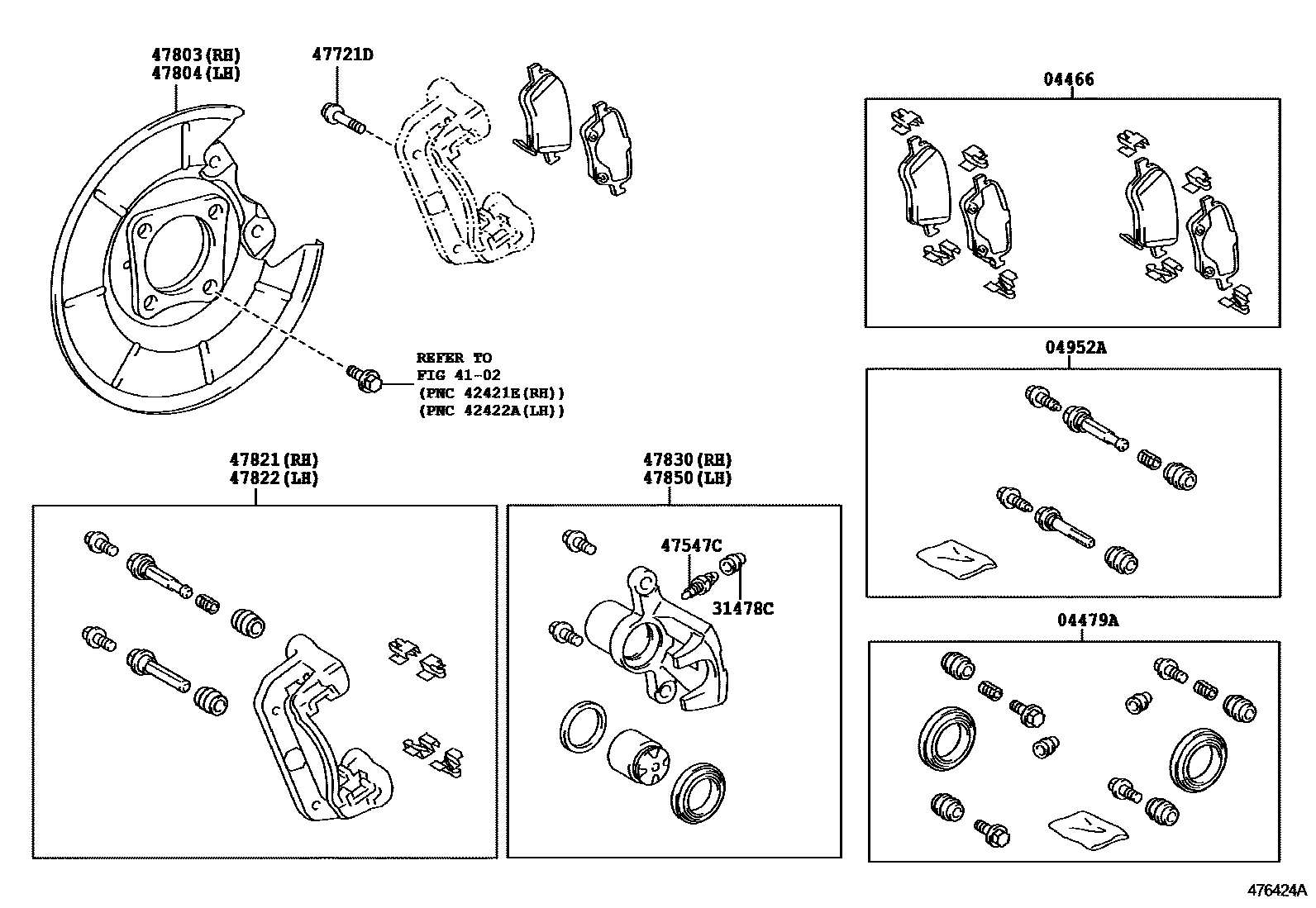

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-02180iZZE14#200803-200902

MARK GALFER G3409

main04466-02181iZRE143,ZZE14#200903-201105

MARK GALFER G3409

main04466-02182iZRE14#,ZZE142201204

MARK GALFER G3409

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-02340iZRE14#;ZZE142..CNG201103

04952APIN KIT, REAR DISC BRAKE CYLINDER SLIDE

main04956-02080×2iZZE142..SEG..HTWCF200803-201003

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main90069-39009×2iZZE142..SEG..HTWCF200803-201003

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main90069-39000×2iZZE142..SEG..HTWCF200803-201003

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90105-10510×4iZZE142..SEG..HTWCF200803-201003

*10-1.25PX35-30

47803COVER SUB-ASSY, DISC BRAKE DUST, REAR RH

main47803-02070iZZE142..CNG200803-201105

47804COVER SUB-ASSY, DISC BRAKE DUST, REAR LH

main47804-02070iZRE143200803-201103

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-09030iZZE142..SEG..HTWCF200803-201003

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47822-09030iZRE14#;ZZE142..CNG201103

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-02221iZRE14#201204-201403

main47830-02230iZZE142..SEG..HTWC;ZZE14#..(CE,GLI,XEGLI,XEI,XLI)..(HTWC,HTWCF)200803

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-02221iZRE14#201204-201403

main47850-02230iZZE142..CNG201103

13 parts on this diagram · 1 diagram in section
