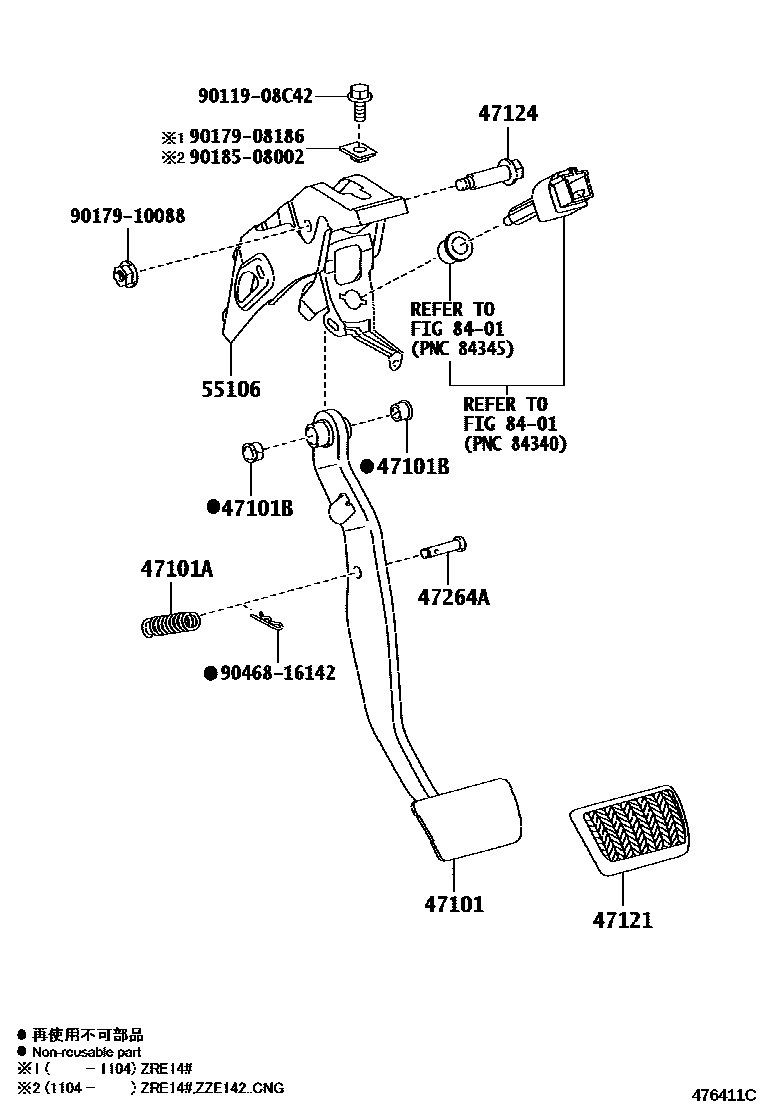

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-02410iZRE14#..ATM201103-201403

main47101-02420iZZE142..ATM201105

main47101-02430iZRE142..MTM201103-201403

main47101-02440iZZE142..MTM201105

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-15005iZZE142..SEG..HTWCF200803-201003

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015×2iZZE142..SEG..HTWCF200803-201003

47121PAD, BRAKE PEDAL

main31321-02050iZRE142..MTM;ZZE142..MTM..CNG201103

main47121-02070iZZE142..SEG..HTWC;ZZE14#..ATM..(CE,GLI,XEGLI,XEI,XLI)..(HTWC,HTWCF)200803

47124SHAFT, BRAKE PEDAL

main90109-10174iZZE142..SEG..HTWCF200803-201003

47264APIN(FOR PUSH ROD)

main90249-08256iZZE142..SEG..HTWCF200803-201003

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-02220iZZE142..SEG..HTWCF200803-201003

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908C42

main90119-08C42

9017908186

main90179-08186

9017910088

main90179-10088

9018508002

main90185-08002

9046816142

main90468-16142

13 parts on this diagram · 1 diagram in section
