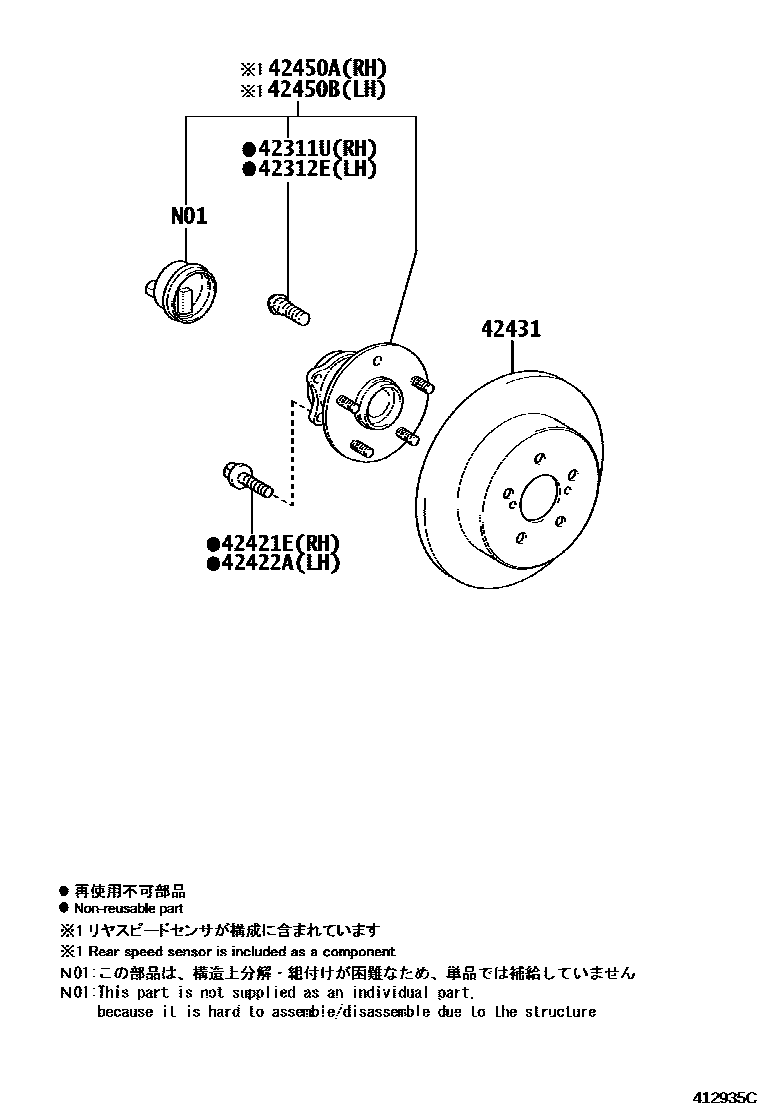

REAR AXLE SHAFT & HUB

0001 1W(ABS) 0002 1W/O(ABS)

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02082×5iZRE143200803-201103

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02082×5iZZE142..SEG..HTWCF200803-201003

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-12350×4iZZE142..SEG..HTWCF200803-201003

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-12350×4iZZE142..SEG..HTWCF200803-201003

42431DISC, REAR

main42431-02270×2iZZE142..CNG200803-201105

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42450-02200iZRE14#..ALT,GLI,SEG,XEI; ZRE142..XLI201103-201403

UP GRADE PACKAGE

main42450-12190iZZE142201105-201411

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42450-02200iZRE143,ZZE142..BZ; ZZE141200803-201103

UP GRADE PACKAGE

main42450-12190iZZE142..VEN200809-201105

7 parts on this diagram · 2 diagrams in section
