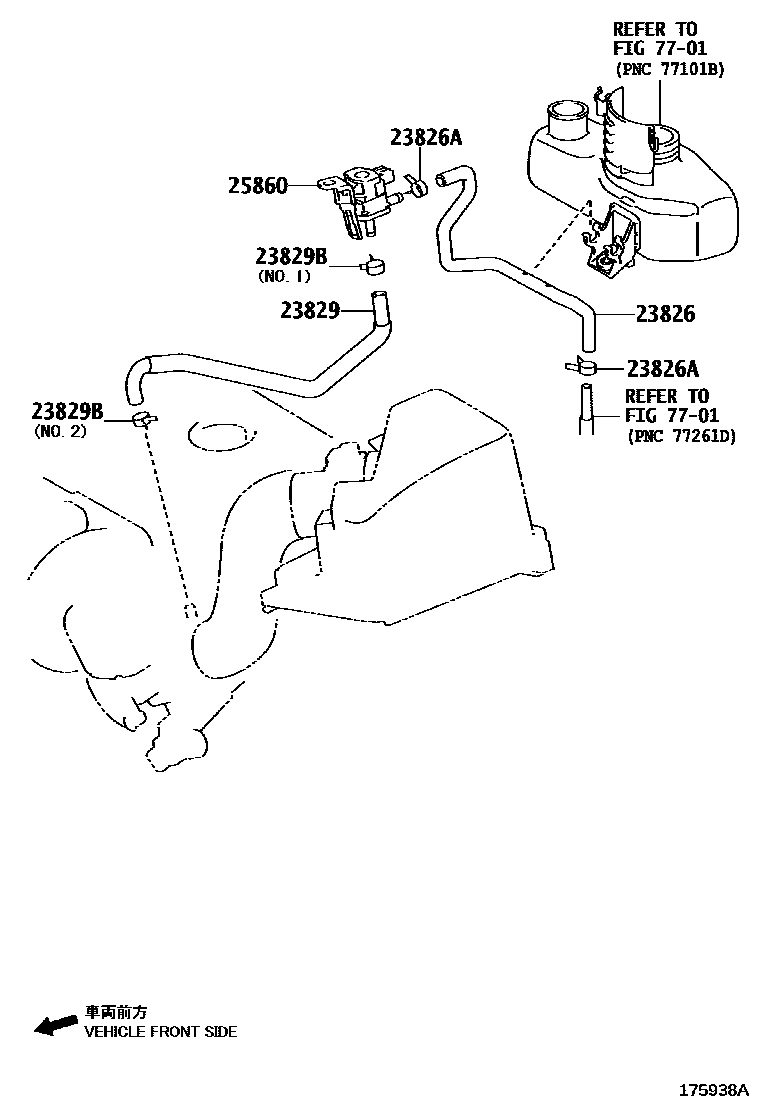

VACUUM PIPING

0001 1 0002 1 0003 1 0004 1

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-0D110supersedes 23826-22200i1ZZFE,3ZZFE..ZZE14#..HTWC200803

main23826-0D160i2ZRFE..ZRE142201103-201403

NO.2

main23826-22180i1ZZFBE..ZZE142..SEG200803-201003

main23826-37021i2ZRFE..ZRE142201103-201403

NO.1

main23826-37150i3ZRFBE..ZRE143201003-201103

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main90466-11003×2i1ZZFE..ZZE142..CNG200803-201105

main90467-14043i3ZRFBE..ZRE143201003-201103

NO.2

main96132-51100×2i2ZRFE..ZRE142201103-201403

main96132-51300i3ZRFBE..ZRE143201003-201103

NO.1

23829HOSE, FUEL VAPOR FEED, NO.3

main23829-22100i3ZZFE..ZZE141200803

main23829-22120i1ZZFE..ZZE142..VEN200809-200904

main23829-22130i1ZZFE..ZZE142..CNG200803-201105

23829BCLIP(FOR FUEL VAPOR FEED HOSE)

main90466-11003×2i2ZRFBE,3ZRFBE..ZRE14#201103-201403

main90467-14043i1ZZFE..ZZE142201105

NO.2

main96132-51300i1ZZFE..ZZE142201105

NO.1

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-21100i1ZZFBE..ZZE142..SEG200803-201003

main25860-21120i1ZZFE..ZZE142..CNG200803-201105

7701FUEL TANK & TUBE

→ Go to FIG 77-01

6 parts on this diagram · 4 diagrams in section
