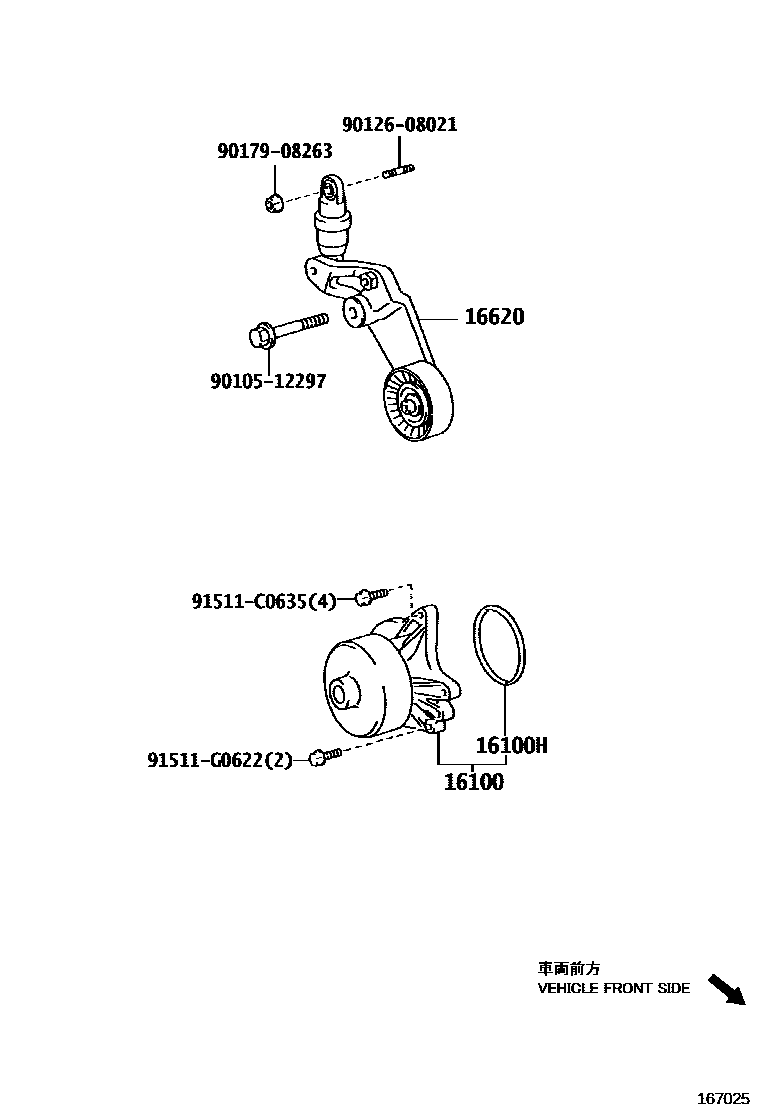

WATER PUMP

0001 1 0002 1

16100PUMP ASSY, ENGINE WATER

main16100-09310i1ZZ#,3ZZFE..ZZE14#..BZ,MXC200803-200902

(L)

main16100-29415i1ZZFE..ZZE142201105

main16100-39466i3ZRFBE..ZRE143201003-201103

16100HRING, O(FOR WATER PUMP)

main90301-69006i1ZZFE..ZZE142..HTWC;1ZZFBE,3ZZFE..ZZE14#..XEGLI,XLI200803

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0D021i1ZZFE..ZZE142..CNG200803-201105

INA

main16620-0W093i1ZZFE..ZZE142..HTWC..VEN200812

INA

main16620-22013i1ZZ#,3ZZFE..ZZE14#200803-200812

OTICS

9010512297

main90105-12297

9012608021

main90126-08021

9017908263

main90179-08263

91511C0635

main91511-C0635

91511G0622

main91511-G0622

8 parts on this diagram · 2 diagrams in section
