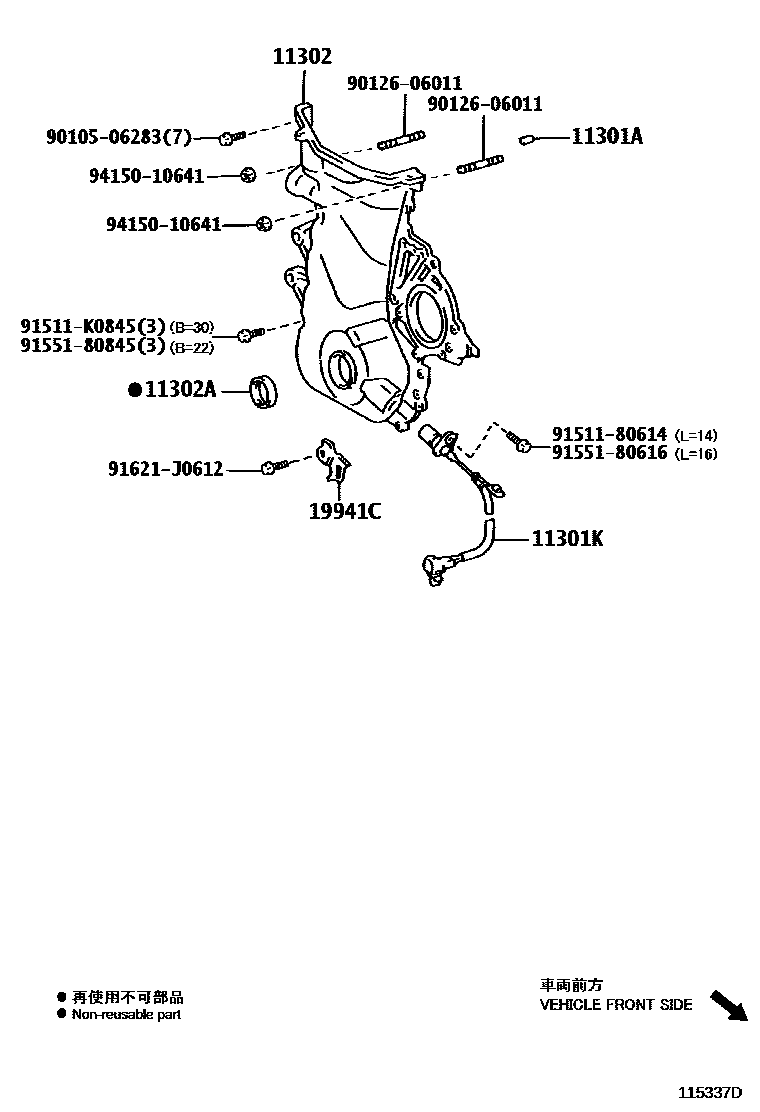

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1

11301APIN, STRAIGHT(FOR TIMING GEAR CASE)

main90250-08074i1ZZFE..ZZE142..CNG200803-201105

L=15,OD=8

11301KSENSOR, CRANK POSITION

main90919-05030i1ZZFBE..ZZE142..SEG200803-201003

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11310-37010i2ZR#..ZRE142201103-201112

main11310-37011i2ZR#..ZRE142201112-201403

main11310-37031i3ZRFBE..ZRE143201103-201201

main11310-37032i3ZRFBE..ZRE143201201-201403

main11321-0D020i1ZZ#,3ZZFE..ZZE14#..BZ,MXC200803-200810

(L)

main11321-0D030i1ZZFE..ZZE142..HTWC..VEN200809

(L)

main11321-22021i1ZZFE..ZZE142201105

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90311-38059i1ZZFE..ZZE142..CNG200803-201105

main90311-38089i2ZR#,3ZRFBE..ZRE14#201103-201403

19941CCLAMP, CORD(FOR CRANK POSITION SENSOR)

main19941-22010i1ZZFE..ZZE142..HTWC;1ZZFBE,3ZZFE..ZZE14#..XEGLI,XLI200803

9010506283

main90105-06283

9012606011

main90126-06011

9151180614

main91511-80614

91511K0845

main91511-K0845

9155180616

main91551-80616

9155180845

main91551-80845

91621J0612

main91621-J0612

9415010641

main94150-10641

13 parts on this diagram · 2 diagrams in section
