HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1CONTROL PANEL--AUTO AIR CONDI0003 1CONTROL PANEL--DIAL TYPE 0005 1AIR DUCT 0007 1SENSOR

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

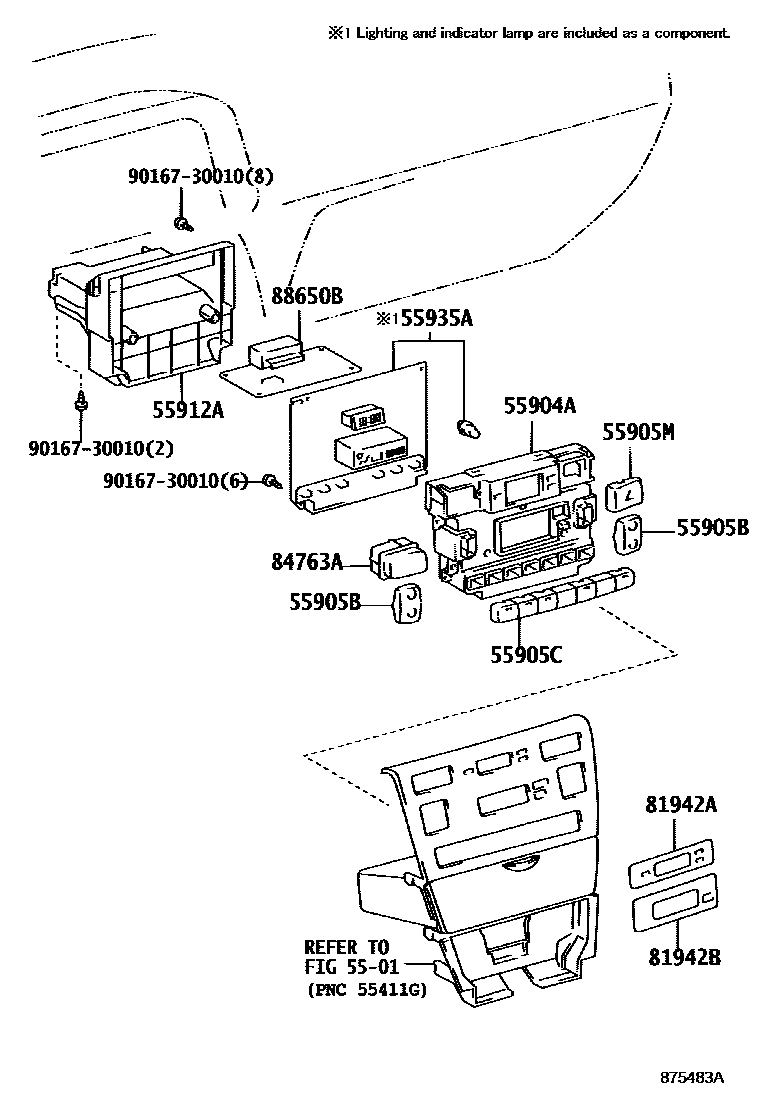

55904AHOUSING SUB-ASSY, HEATER CONTROL

main55904-02020iCDE120;ZZE122..SEG..SED..HTWC200205-200408

main55904-02040iZZE122..VEN200209-200508

55905BKNOB, HEATER CONTROL, NO.2

main55905-02110iCDE120;ZZE122..SEG..SED..HTWC200205-200508

BLOWER

main55905-02190iCDE120;ZZE122..SEG..SED..HTWC200205-200508

TEMP

main55905-02300iCDE120;ZZE122..MTM..VEN;ZZE122..ATM..(GLI,SEG)200508

BLOWER

main55905-02310iCDE120;ZZE122..MTM..VEN;ZZE122..ATM..(GLI,SEG)200508

TEMP

55905CKNOB, HEATER CONTROL, NO.3

main55905-02200iCDE120;ZZE122..SEG..SED..HTWC200205-200508

main55905-02320iCDE120;ZZE122..MTM..VEN;ZZE122..ATM..(GLI,SEG)200508

55905MKNOB SUB-ASSY, CONTROL

main55905-02210iCDE120;ZZE122..SEG..SED..HTWC200205-200508

main55905-02220iZZE122..VEN200209-200508

main55905-02330iCDE120;ZZE122..ATM..SEG200508

main55905-02340iZZE122..VEN200508

55912AHOUSING, HEATER CONTROL

main55912-02020iCDE120;ZZE122..SEG..SED..HTWC200205-200508

55935ACIRCUIT, CENTER CLUSTER MODULE

main55935-02030iCDE120;ZZE122..SEG..SED..HTWC200205-200408

main55935-02040iZZE122..VEN200209-200508

81942ASHEET, HEATER CONTROL NAME, NO.1

main81942-02140iCDE120;ZZE122..SEG..SED..HTWC200205-200508

81942BSHEET, HEATER CONTROL NAME, NO.2

main81942-02220iCDE120;ZZE122..SEG..SED..HTWC200205-200508

84763APLATE, SWITCH

main84763-02030iCDE120;ZZE122..SEG..SED..HTWC200205-200508

main84763-02060iCDE120;ZZE122..MTM..VEN;ZZE122..ATM..(GLI,SEG)200508

88650BAMPLIFIER ASSY, AIRCONDITIONER

main88650-13040iZZE122..SEG..SED..HTWC200205-200508

main88650-1E590iCDE120200205-200408

9016730010

main90167-30010

12 parts on this diagram · 4 diagrams in section
