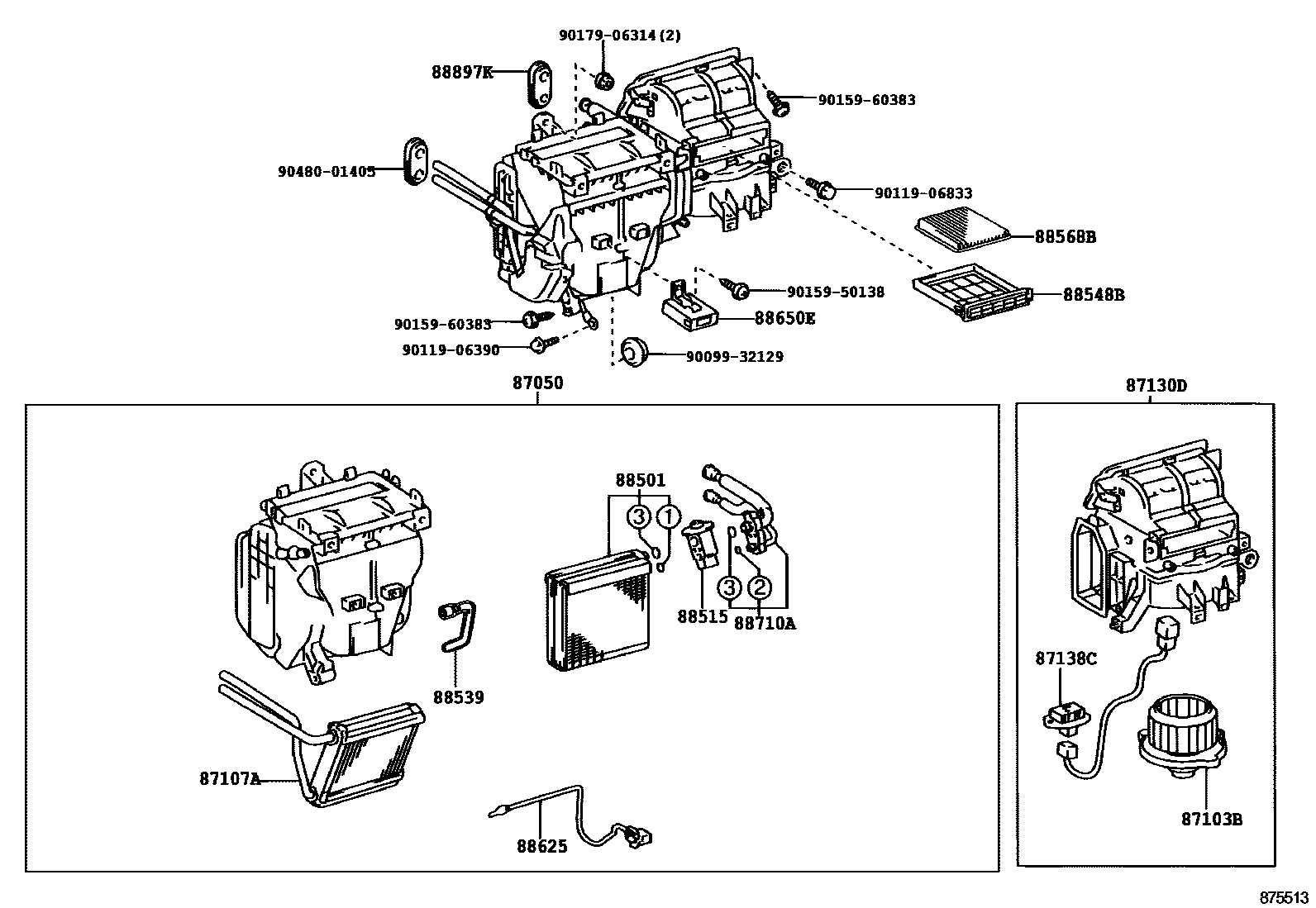

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1W(MANUAL AIR CONDITIONER) 0002 1W(AUTO AIR CONDITIONER) 0003 1 0004 1O-RING

87050RADIATOR ASSY, AIR CONDITIONER

main87050-02160iZZE12#..(XEI,XLI)..BZ..SED..HTWC200611-200802

main87050-02170iZZE122..SEG..SED..HTWC200205-200408

main87050-02180iZZE121..VEN200508

main87050-02190iZZE12#..(XEI,XLI)..BZ..SED..HTWC200611-200802

W/O(COOLER)

main87050-02200iZZE122..VEN200508

main87050-13060iCDE120200611-200802

W(MANUAL AIR CONDITIONER)

main87050-13090iCDE120200611-200802

W(AUTO AIR CONDITIONER)

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-02100iZZE122..WGN200408

main87103-02110iZZE12#..VEN200209-200508

main87103-12070iCDE120200205-200210

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-02170iZZE12#..VEN;ZZE122..WGN200408

main87107-13020iCDE120200408-200802

87130DBLOWER ASSY

main87130-02120iCDE120200210-200408

W(MANUAL AIR CONDITIONER)

main87130-02121iZZE122..XEI..WGN200705

main87130-02130iZZE122..SEG200205-200408

main87130-02131iZZE122..SEG..WGN200705

main87130-02140iZZE121..VEN200209-200508

main87130-02150iZZE122..VEN200508

main87130-12460iCDE120200205-200210

W(MANUAL AIR CONDITIONER)

main87130-13020iCDE120200205-200210

W(AUTO AIR CONDITIONER)

87138CRESISTOR, BLOWER

main87138-02060iZZE122..XEI..WGN..HTWC200310-200609

main87138-20360iZZE121..VEN200508

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-02150iZZE12#..VEN;ZZE122..WGN200408

main88501-12450iCDE120200408-200802

88515VALVE, COOLER EXPANSION

main88515-02100iZZE12#..VEN200508

main88515-07020iZZE12#..(XEI,XLI)..BZ..SED200205-200408

main88515-07040iZZE122..SED..HTWCF;ZZE122..ATM..SEG..SED..HTWC;ZZE12#..(XEI,XLI)..BZ..SED..HTWC200611-200802

main88515-27020iCDE120200302-200308

main88515-28160iCDE120200408-200802

main88515-48040iCDE120200205-200302

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-12180iZZE122..ATM..SEG..SED..HTWC;ZZE12#..(XEI,XLI)..BZ..SED..HTWC200611-200802

88548BCASE, AIR FILTER

main88548-52010iZZE122..WGN200611

88568BFILTER, AIR

main88568-52010iZZE122..SED..HTWCF;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(XEI,XLI)..BZ..SED..(DCR,HTWC)200611-200802

88625THERMISTOR, COOLER, NO.1

main88625-60140iCDE120,ZZE12#..BZ..SED200205-200408

88650EAMPLIFIER ASSY, AIR CONDITIONER, NO.1

main88650-1E410iCDE120,ZZE12#..(XEI,XLI)..BZ..SED..(DCR,HTWC)200205-200408

88710ATUBE ASSY, AIR CONDITIONER

main88710-12550iCDE120200205-200408

88897KGROMMET, (FOR COOLER PIPE)

main90480-01434iCDE120,ZZE12#..BZ..SED200205-200408

main90950-01559iZZE12#..(XEI,XLI)..BZ..SED200408-200802

W/O(COOLER)

9009932129

main90099-32129

9011906390

main90119-06390

9011906833

main90119-06833

9015950138

main90159-50138

9015960383

main90159-60383

9017906314

main90179-06314

9048001405

main90480-01405

21 parts on this diagram · 4 diagrams in section
