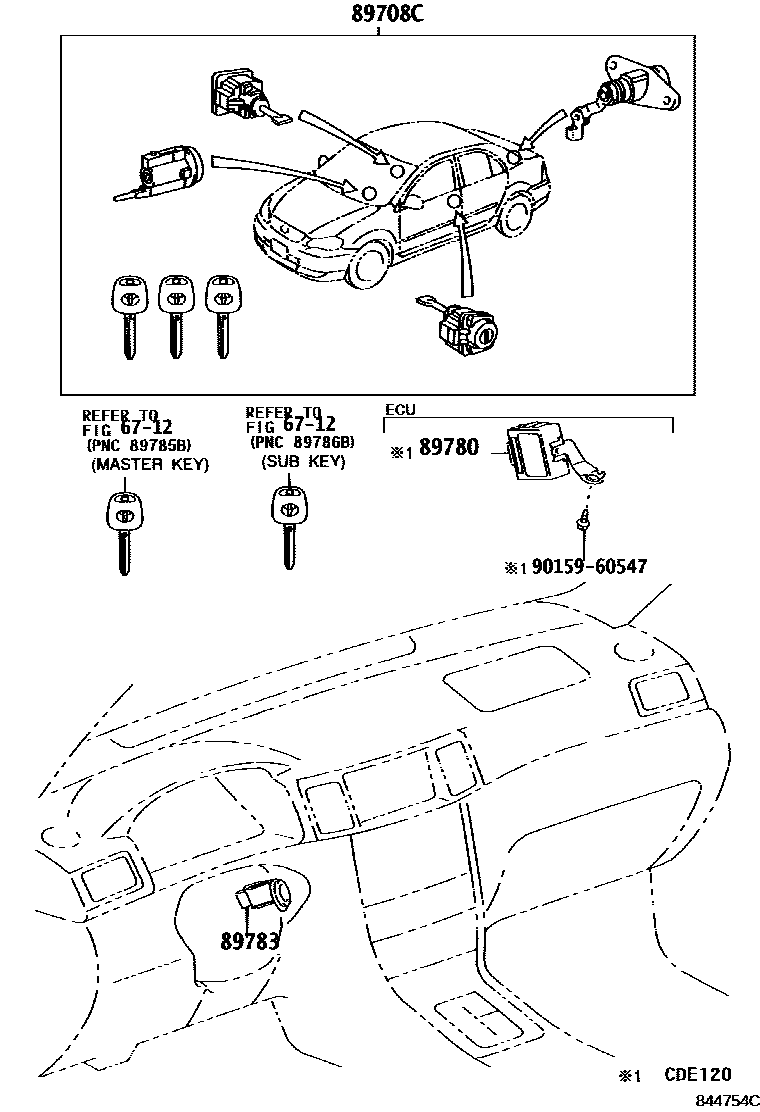

ANTI-THEFT DEVICE

6712LOCK CYLINDER SET

→ Go to FIG 67-12

89708CCYLINDER SET, LOCK W/TRANSPONDER KEY TRANSMITTER

main89708-02130iZZE12#..BZ..SED..HTWC200205-200408

main89708-02210iZZE122..WGN200404-200705

89780COMPUTER ASSY, TRANSPONDER KEY

main89780-12140iCDE120200205-200408

89783AMPLIFIER, TRANSPONDER KEY

main89783-02020iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200408

9015960547

main90159-60547

5 parts on this diagram · 1 diagram in section
