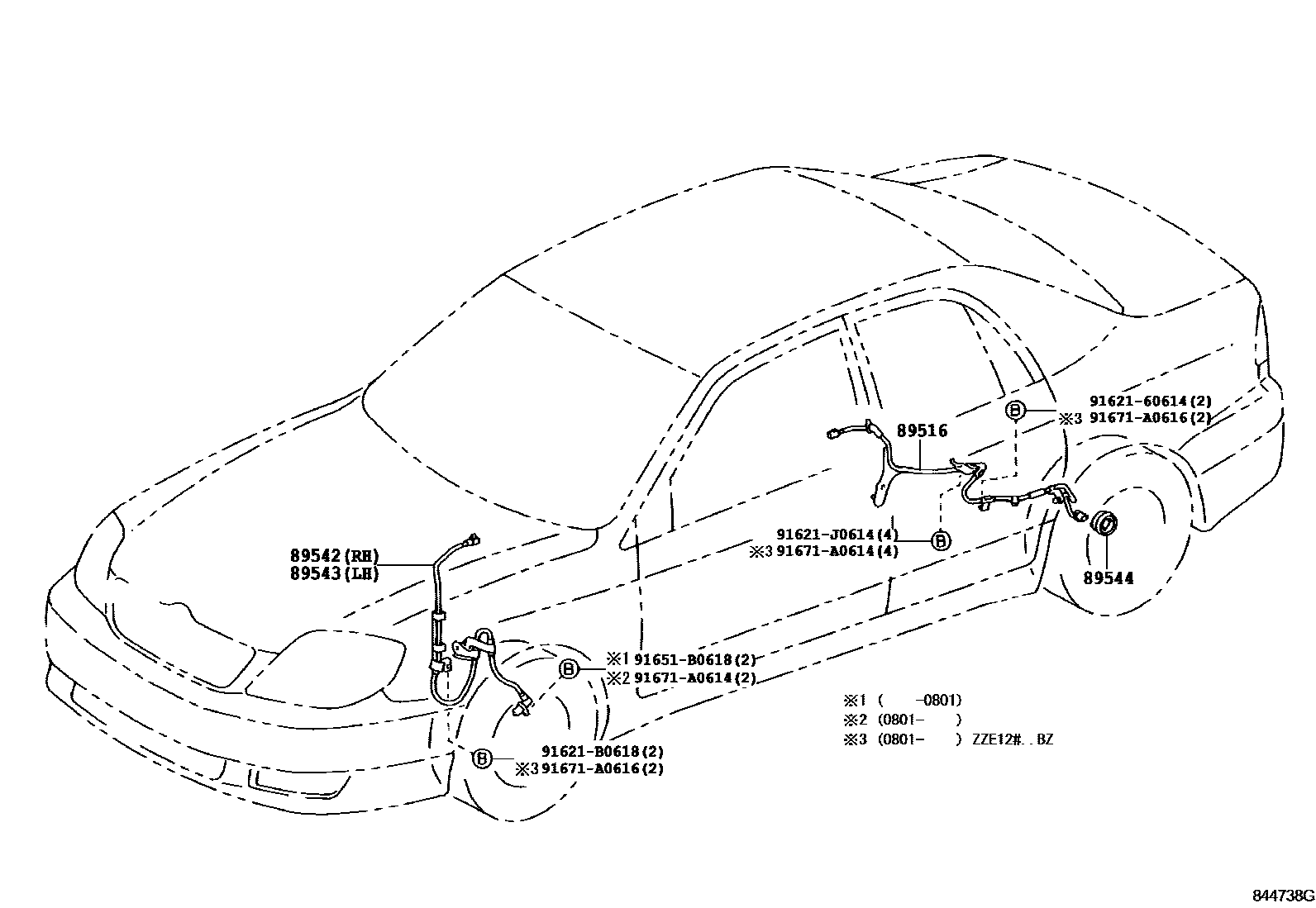

ABS & VSC

89516WIRE, SKID CONTROL SENSOR

main89516-12010iCDE120,ZZE122..BZ..SED..(DCR,HTWC)200205-200408

RH

main89516-12020iZZE122..WGN200205-200705

LH

89542SENSOR, SPEED, FRONT RH

main89542-02040iCDE120,ZZE122..BZ..SED..(DCR,HTWC)200205-200408

89543SENSOR, SPEED, FRONT LH

main89543-02040iCDE120,ZZE122..BZ..SED..(DCR,HTWC)200205-200408

89544SENSOR, SKID CONTROL

main89544-12010×2iZZE12#..VEN200209-200508

KOYO,*369

main89544-12020×2iCDE120,ZZE122..BZ200205-200705

NSK,*369

main89544-20010×2iCDE120,ZZE122..BZ200507-200807

9162160614

main91621-60614

91621B0618

main91621-B0618

91621J0614

main91621-J0614

91651B0618

main91651-B0618

91671A0614

main91671-A0614

91671A0616

main91671-A0616

10 parts on this diagram · 1 diagram in section
