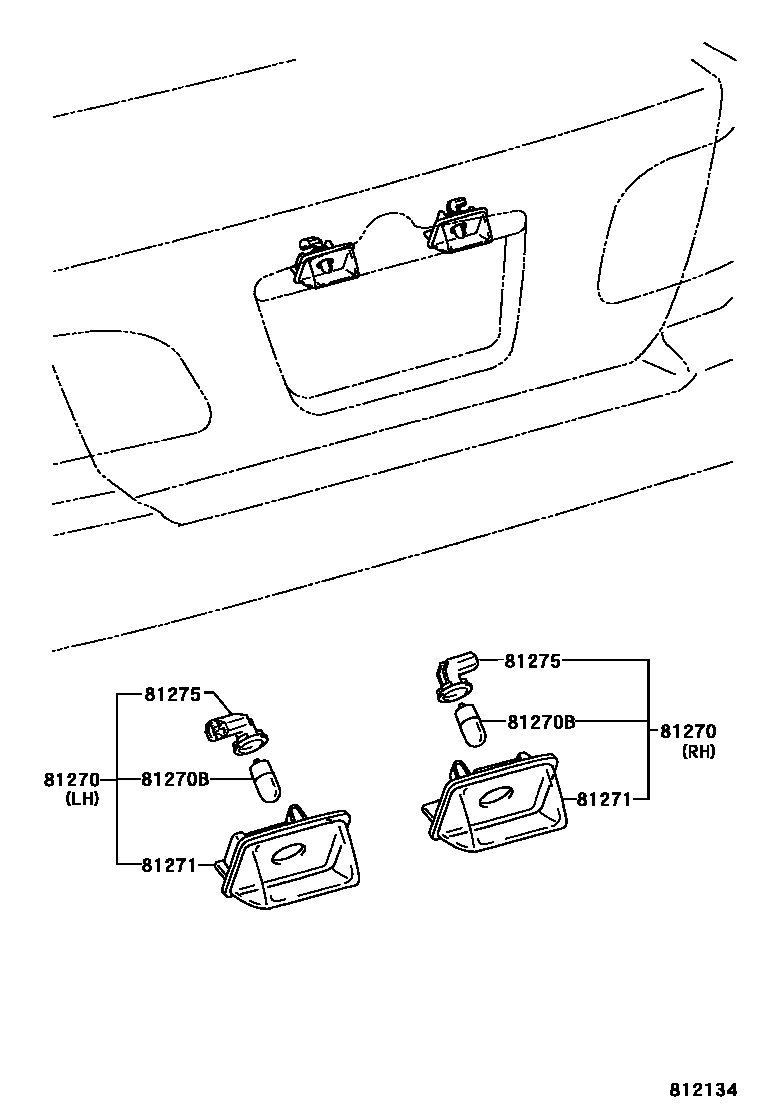

REAR LICENSE PLATE LAMP

0001 1 0002 1

81270LAMP ASSY, LICENSE PLATE

main81270-02090iCDE120,ZZE12#..SED200205-200508

RH

main81270-02111iCDE120;ZZE122..MTM..VEN;ZZE122..ATM..(GLI,SEG)200408-200701

KENKOH RH

main81270-02113iCDE120;ZZE122..MTM..VEN;ZZE122..ATM..(GLI,SEG)..SED200702

KENKOH RH

main81690-02070×2iZZE122..WGN200705

main81690-02091iCDE120;ZZE122..MTM..VEN;ZZE122..ATM..(GLI,SEG)200408-200701

KENKOH LH

main81690-02093iCDE120;ZZE122..MTM..VEN;ZZE122..ATM..(GLI,SEG)..SED200702

KENKOH LH

81270BBULB (FOR LICENSE PLATE LAMP)

main99132-12050×2iCDE120,ZZE12#..BZ..SED..(DCR,HTWC)200205-200408

12V 5W

81271LENS, LICENSE PLATE LAMP

main81271-02090iCDE120,ZZE12#..(XEI,XLI)..SED200408

ARTEB RH

main81271-8C003iZZE122..SEG..SED..HTWCF200408

KENKOH RH

main81691-02070×2iZZE122..WGN200404-200705

main81691-8C002iCDE120;ZZE122..MTM..VEN;ZZE122..ATM..(GLI,SEG)200408-200701

KENKOH LH

81275SOCKET AND WIRE, LICENSE PLATE LAMP

main81275-12501×2iZZE122..WGN200705

main81275-8C000×2iZZE122..SEG..SED..HTWCF200408

KENKOH

4 parts on this diagram · 2 diagrams in section
