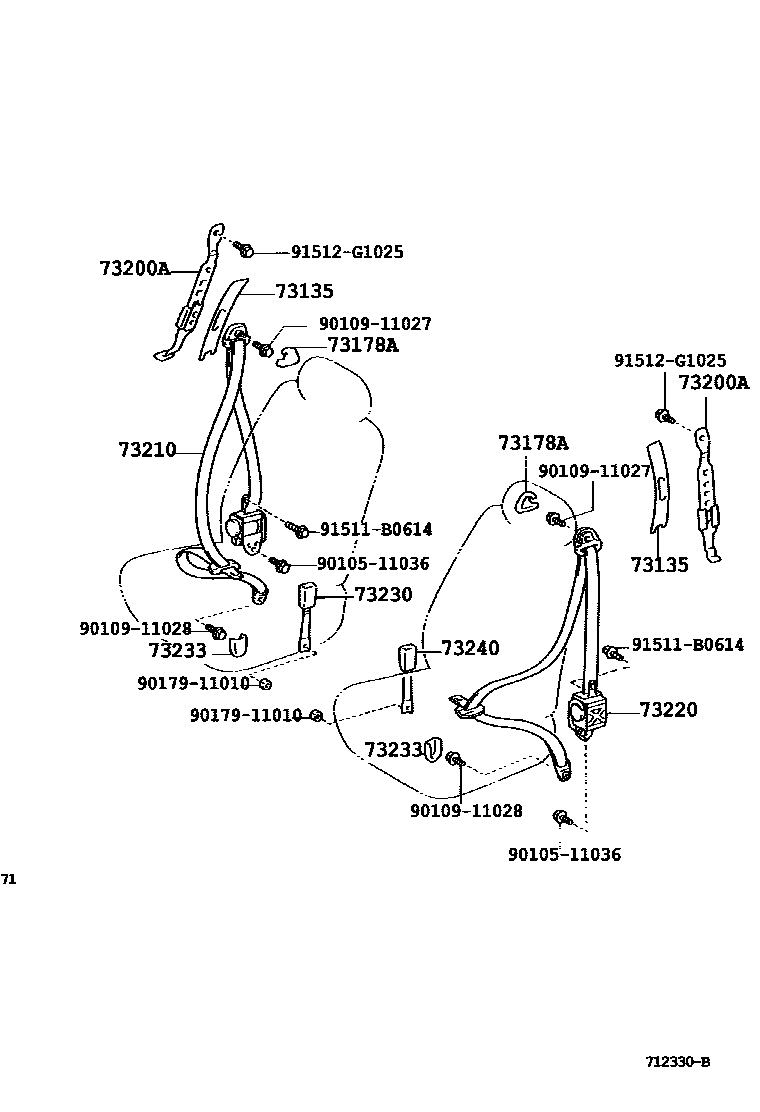

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT 0002 1REAR 0003 1REAR

73135COVER, SHOULDER BELT ANCHORAGE PLATE

main73135-12030-B9×2iCDE120,ZZE12#200205-200705

LT.GRAY,TRIM1#

73178ACAP, SEAT BELT ANCHOR COVER

main73178-02010-B0iCDE120,ZZE12#200205-200705

W(SRS AIR BAG,DRIVER SIDE/SRS AIR BAG,PASSENGER SIDE),LT.GRAY,TRIM1#,RH

main73178-33020-B3×2iZZE12#..(XEI,XLI)..SED..HTWC200408

LT.GRAY,TRIM1#

main73179-02010-B0iCDE120,ZZE12#200205-200705

W(SRS AIR BAG,DRIVER SIDE/SRS AIR BAG,PASSENGER SIDE),LT.GRAY,TRIM1#,LH

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-52040-B0×2iZZE122..HTWCF;ZZE122..WGN..HTWC;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(GLI,XEI,XLI)..SED..(DCR,HTWC)200408

LT.GRAY,TRIM1#

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-02160-B1iZZE122..HTWCF;ZZE122..WGN..HTWC;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(GLI,XEI,XLI)..SED..(DCR,HTWC)200608

W(PRETENSIONER SEAT BELT),CHARCOAL,TRIM1#

main73210-02160-C0iZZE122..WGN200404-200608

BLACK,TRIM1#

main73210-02170-B1iZZE12#..(XEI,XLI)..SED..HTWC200608

CHARCOAL,TRIM1#

main73210-02170-C0iZZE12#..(XEI,XLI)..SED200205-200508

BLACK,TRIM1#

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-02150-B1iZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(GLI,XEI,XLI)..SED..(DCR,HTWC)200608

W(PRETENSIONER SEAT BELT),CHARCOAL,TRIM1#

main73220-02150-C0iZZE122..WGN200404-200608

BLACK,TRIM1#

main73220-02160-B1iZZE12#..(XEI,XLI)..SED..HTWC200608

CHARCOAL,TRIM1#

main73220-02160-C0iZZE122..VEN200205-200408

BLACK,TRIM1#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-02130-B0iCDE120,ZZE12#..SED200205-200508

DK.GRAY,TRIM1#

main73230-02130-B1iZZE122..HTWCF;ZZE122..WGN..HTWC;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(GLI,XEI,XLI)..SED..(DCR,HTWC)200608

STONE,TRIM1#

73233COVER, LAP BELT OUTER ANCHOR

main73233-33010-B6×2iZZE122..WGN200608-200705

STONE,TRIM17

main73233-33010-B8×2iCDE120,ZZE12#200205-200608

DK.GRAY,TRIM1#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-02130-B0iCDE120,ZZE12#..SED200205-200508

DK.GRAY,TRIM1#

main73230-02130-B1iZZE122..HTWCF;ZZE122..WGN..HTWC;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(GLI,XEI,XLI)..SED..(DCR,HTWC)200608

STONE,TRIM1#

9010511036

main90105-11036

9010911027

main90109-11027

9010911028

main90109-11028

9017911010

main90179-11010

91511B0614

main91511-B0614

91512G1025

main91512-G1025

14 parts on this diagram · 3 diagrams in section
