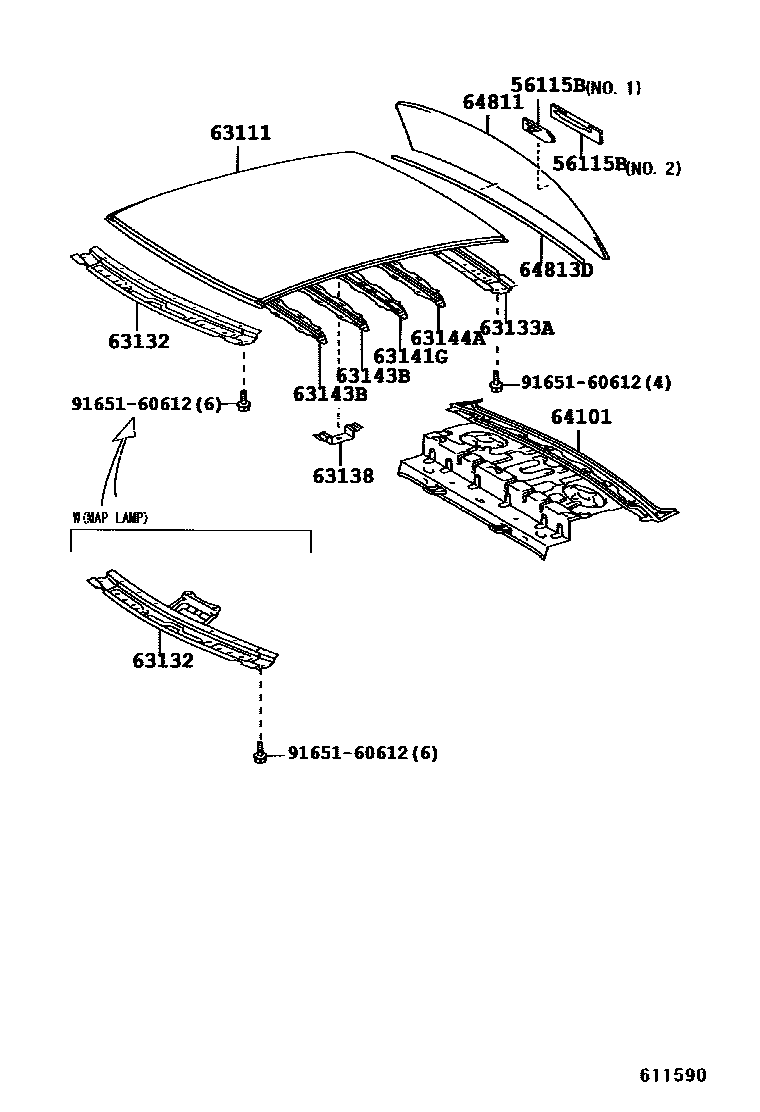

ROOF PANEL & BACK WINDOW GLASS

0001 1 0002 1

56115BSTOPPER, BACK WINDOW GLASS, NO.1

main56115-30100×2iZZE122..SED..HTWCF;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(GLI,XEI,XLI)..SED..(DCR,HTWC)200408

NO.1:REFER ILLUST.

main56116-22050×2iCDE120,ZZE12#..SED200205-200508

NO.2:REFER ILLUST.

63111PANEL, ROOF

main63111-02110iCDE120,ZZE12#..SED200205-200508

main63111-13410iZZE122..WGN200705

63132PANEL, WINDSHIELD HEADER, INNER

main63102-12170iZZE122..WGN200205-200705

W(MAP LAMP)

main63132-12280iCDE120,ZZE122..XEI200205-200308

63133AFRAME, BACK WINDOW, UPPER

main63133-12290iCDE120,ZZE12#..SED200205-200508

63138BRACKET, DOME LAMP, NO.2

main63138-12011×2iZZE122..HTWCF;ZZE122..WGN..HTWC;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(GLI,XEI,XLI)..SED..(DCR,HTWC)200408

63141GREINFORCEMENT, ROOF PANEL, NO.1

main63141-12260iCDE120,ZZE12#..SED200205-200508

main63141-13080iZZE122..WGN200404-200705

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-12100iZZE122..WGN200404-200705

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-12080iCDE120,ZZE12#..SED200205-200508

main63144-13030iZZE122..WGN200705

64101PANEL SUB-ASSY, UPPER BACK

main64101-12690iZZE121..VEN200209-200508

main64101-12700iZZE122..VEN200209-200508

main64101-12800iZZE122..SED..HTWCF200705-200803

64811GLASS, BACK WINDOW

main64811-02210iCDE120,ZZE12#..SED200205-200508

*EHT,T=3.1,GREEN

64813DDAM, BACK WINDOW GLASS ADHESIVE

main56117-47010iCDE120,ZZE12#..SED200205-200508

9165160612

main91651-60612

12 parts on this diagram · 2 diagrams in section
