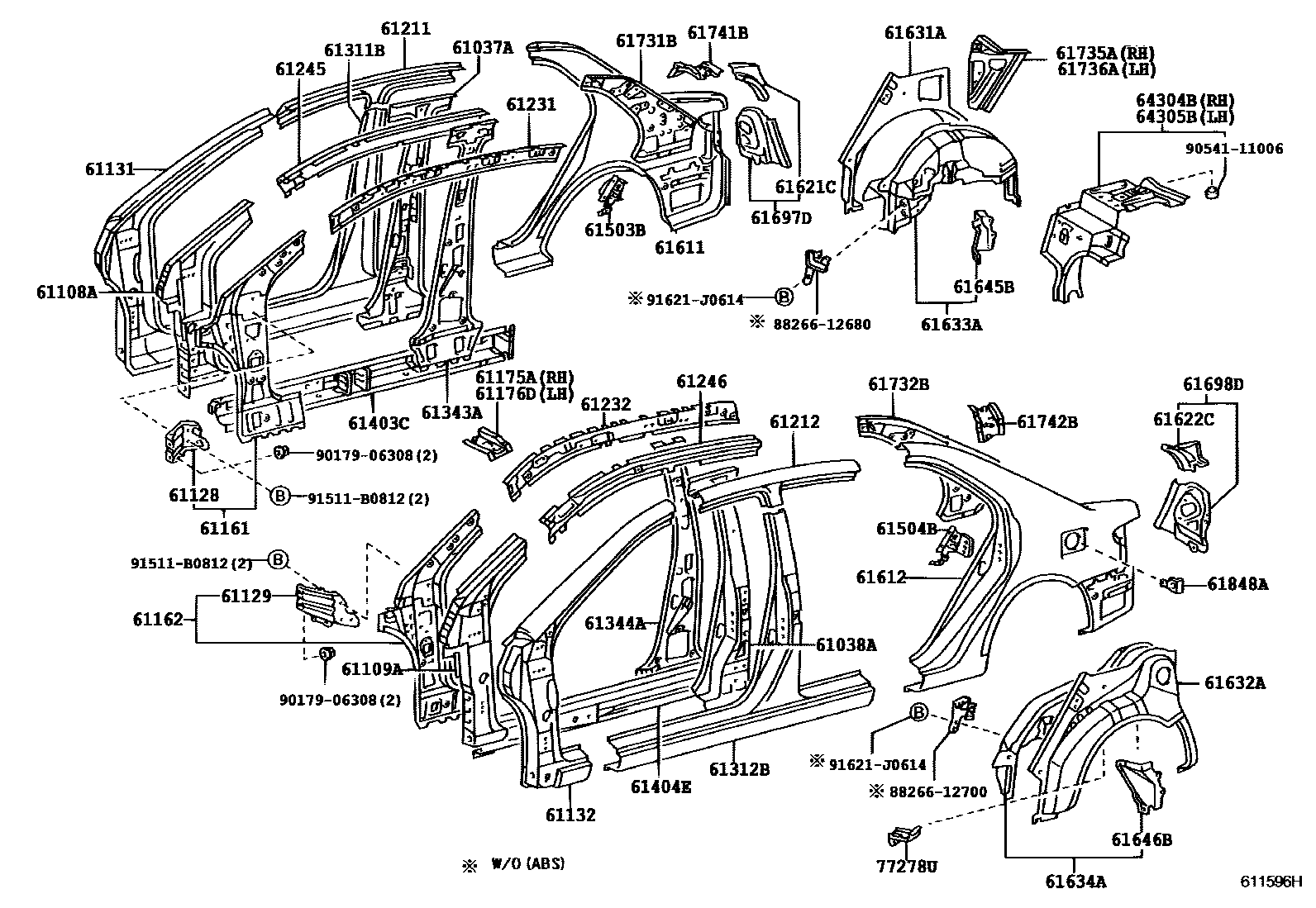

SIDE MEMBER
61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
61038AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH
main61038-12906iZZE122..HTWCF;ZZE122..WGN..HTWC;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(GLI,XEI,XLI)..SED..(DCR,HTWC)200408
61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH
61109AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH
61128REINFORCEMENT, COWL SIDE PANEL, RH
61129REINFORCEMENT, COWL SIDE PANEL, LH
61131PILLAR, FRONT BODY, UPPER OUTER RH
(J)
(L)
61132PILLAR, FRONT BODY, UPPER OUTER LH
(J)
main61132-12680iZZE122..SED..HTWCF;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(GLI,XEI,XLI)..SED..(DCR,HTWC)200408
61161PILLAR, FRONT BODY, UPPER INNER RH
61162PILLAR, FRONT BODY, UPPER INNER LH
ARGENTINA SPEC;BRAZIL SPEC;SOUTH AFRICA SPEC
61175AREINFORCEMENT, FRONT PILLAR, UPPER OUTER NO.2 RH
main61175-12180iZZE122..HTWCF;ZZE122..WGN..HTWC;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(GLI,XEI,XLI)..SED..(DCR,HTWC)200408
61176DREINFORCE, FRONT BODY PILLAR, UPPER OUT NO.2 LH
61211RAIL, ROOF SIDE, OUTER RH
61212RAIL, ROOF SIDE, OUTER LH
main61212-12440iZZE122..SED..HTWCF;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(GLI,XEI,XLI)..SED..(DCR,HTWC)200408
61231RAIL, ROOF SIDE, INNER RH
61232RAIL, ROOF SIDE, INNER LH
61245REINFORCEMENT, ROOF SIDE RAIL, OUTER RH
61246REINFORCEMENT, ROOF SIDE RAIL, OUTER LH
61311BPILLAR, CENTER BODY, OUTER RH
61312BPILLAR, CENTER BODY, OUTER LH
61343APILLAR, CENTER BODY, INNER RH
61344APILLAR, CENTER BODY, INNER LH
main61344-12190iZZE122..HTWCF;ZZE122..WGN..HTWC;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(XEI,XLI)..BZ..SED..(DCR,HTWC)200408
61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH
61404EREINFORCE SUB-ASSY, ROCKER, OUTER LH
61503BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH
61504BREINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, LH
main61504-13030iZZE122..HTWCF;ZZE122..WGN..HTWC;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(GLI,XEI,XLI)..SED..(DCR,HTWC)200408
61611PANEL, QUARTER, RH
61612PANEL, QUARTER, LH
61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH
61622CTROUGH, LUGGAGE COMPARTMENT OPENING, LH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
W(6:4 SPRIT REAR SEAT)
W(6:4 SPRIT REAR SEAT & ABS)
W(FIXED TYPE REAR SEAT )
W(ABS)
61634APANEL, QUARTER WHEEL HOUSE, INNER LH
W(FIXED TYPE REAR SEAT )
W(FIXED TYPE REAR SEAT & ABS)
W(6:4 SPRIT REAR SEAT)
W(6:4 SPRIT REAR SEAT & ABS)
61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH
61646BGUSSET, QUARTER WHEEL HOUSE, REAR LH
61697DHOUSING, QUARTER PANEL END, RH
61698DHOUSING, QUARTER PANEL END, LH
61731BPANEL, ROOF SIDE, INNER RH
61732BPANEL, ROOF SIDE, INNER LH
61735APANEL, ROOF SIDE, INNER REAR RH
main61735-12380iZZE122..SED..HTWCF;ZZE122..ATM..SEG..SED..HTWC;CDE120,ZZE12#..(GLI,XEI,XLI)..SED..(DCR,HTWC)200408
61736APANEL, ROOF SIDE, INNER REAR LH
61741BREINFORCEMENT, BACK WINDOW OPENING, RH
61742BREINFORCEMENT, BACK WINDOW OPENING, LH
61848ARETAINER, QUARTER PANEL, LH
64304BREINFORCE SUB-ASSY, PACKAGE TRAY BRACKET, RH
64305BREINFORCE SUB-ASSY, PACKAGE TRAY BRACKET, LH
77278UBRACKET, FUEL TANK FILLER PIPE PROTECTOR
8826612680CLAMP, AIR SUSPENSION SENSOR, NO.1
main88266-12680
8826612700CLAMP, AIR SUSPENSION SENSOR, NO.1
main88266-12700
9017906308
main90179-06308
9054111006
main90541-11006
91511B0812
main91511-B0812
91621J0614
main91621-J0614
54 parts on this diagram · 4 diagrams in section
